Rear Arms of Lamborghini Lamborghini Murcielago LP640

View All

Lamborghini Murcielago LP640 - Rear Arms

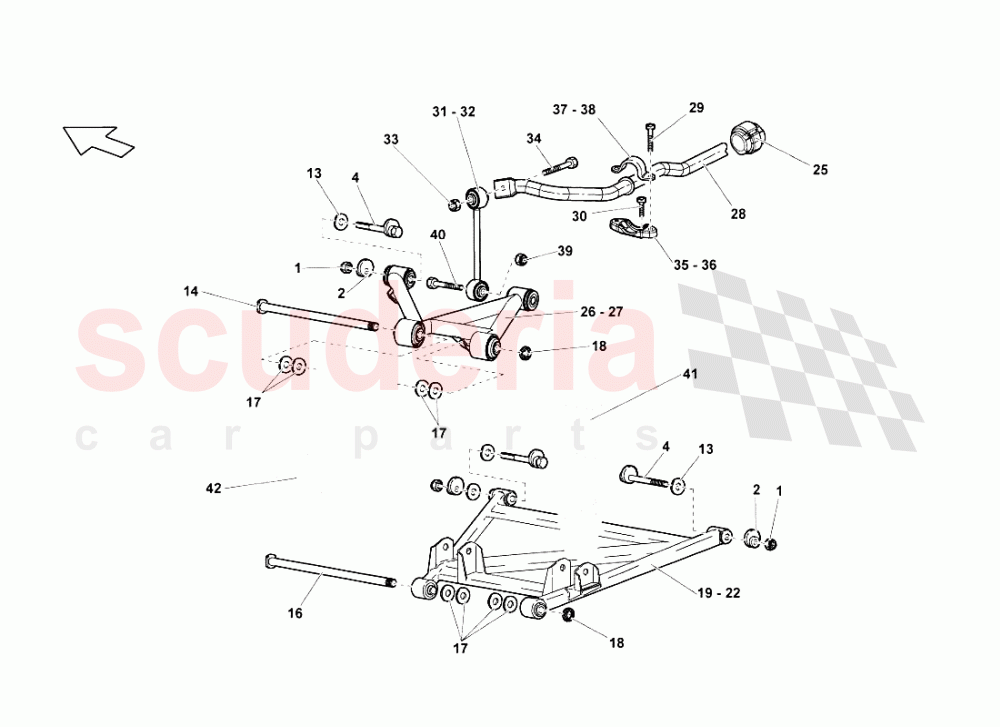

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT003461	NUT M12X1.25	WHT003461 NUT M12X1.25	-	8	Enquire
002	410407135A	CAM	410407135A CAM	-	8	Enquire
004	410407127A	BOLT	410407127A BOLT	-	8	Enquire
013	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM	-	1	Enquire
013	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM	-	1	Enquire
013	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM	-	1	Enquire
013	410407295A	1.5 MM ADJUSTMENT SHIM	410407295A 1.5 MM ADJUSTMENT SHIM	-	1	Enquire
013	410407295D	WASHER	410407295D WASHER	-	1	Enquire
014	410505109	JOURNAL	410505109 JOURNAL	-	2	Enquire
016	410505110	JOURNAL	410505110 JOURNAL	-	2	Enquire
017	400407740	1.5 MM SHIM	400407740 1.5 MM SHIM	-	24	Enquire
017	400407749	0.5 MM SHIM	400407749 0.5 MM SHIM	-	24	Enquire
017	400407742	2.0 MM SHIM	400407742 2.0 MM SHIM	-	24	Enquire
017	400407739	1.0 MM SHIM	400407739 1.0 MM SHIM	-	24	Enquire
018	N10268603	NUT M14X1,5	N10268603 NUT M14X1,5	-	4	Enquire
019	410505311	LH LOWER ARM	410505311 LH LOWER ARM	-	1	Enquire
022	410505312	RH LOWER ARM	410505312 RH LOWER ARM	-	1	Enquire
025	4D0411327J	RUBBER BUSH	4D0411327J RUBBER BUSH	-	2	Enquire
026	410505324B	RH UPPER ARM	410505324B RH UPPER ARM	-	1	Enquire
027	410505323B	LH UPPER ARM	410505323B LH UPPER ARM	-	1	Enquire
028	410511409A	STABILIZER BAR	410511409A STABILIZER BAR	-	1	Enquire
029	N10049308	HEXAGON HEAD BOLT (COMBI)	N10049308 HEXAGON HEAD BOLT (COMBI)	-	4	Enquire
030	N10713801	SCREW M6X16	N10713801 SCREW M6X16	-	4	Enquire
031	410505465	CONNECTING ROD (RIGHT-HAND)	410505465 CONNECTING ROD (RIGHT-HAND)	-	1	Enquire
032	410505465	CONNECTING ROD (RIGHT-HAND)	410505465 CONNECTING ROD (RIGHT-HAND)	-	1	Enquire
033	N10286110	HEXAGON COLLAR NUT SELF-LOCKING	N10286110 HEXAGON COLLAR NUT SELF-LOCKING	-	2	Enquire
034	N10570702	SCREW M10X60	N10570702 SCREW M10X60	-	2	Enquire
035	400411031N	U-BOLT (RIGHT-HAND)	400411031N U-BOLT (RIGHT-HAND)	-	1	Enquire
036	400411031N	U-BOLT (RIGHT-HAND)	400411031N U-BOLT (RIGHT-HAND)	-	1	Enquire
037	4D0411336G	CLAMP	4D0411336G CLAMP	-	1	Enquire
038	4D0411336G	CLAMP	4D0411336G CLAMP	-	1	Enquire
039	N10286110	HEXAGON COLLAR NUT SELF-LOCKING	N10286110 HEXAGON COLLAR NUT SELF-LOCKING	-	2	Enquire
040	N10570702	SCREW M10X60	N10570702 SCREW M10X60	-	2	Enquire
