Front Hood

Lamborghini Murcielago LP640

Find Your Part

Lamborghini Murcielago LP640 - Front Hood

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

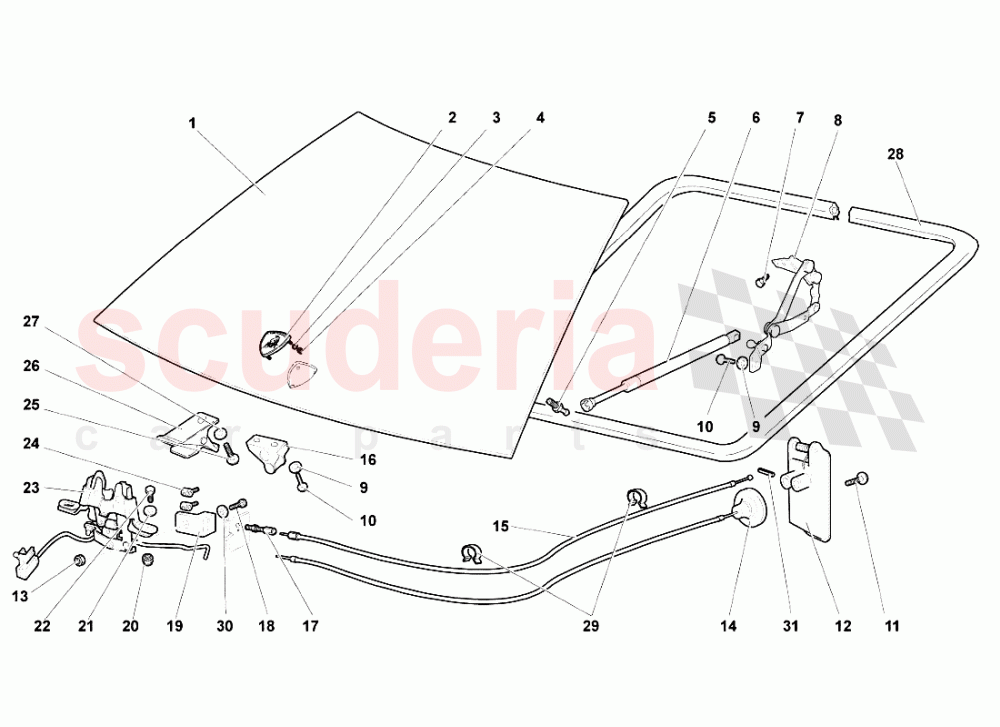

Front Hood of Lamborghini Lamborghini Murcielago LP640 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410823021
FRONT HOOD ASSEMBLY 		- 1 Enquire
002 400853745D
Lamborghini Badge 		- 1 Enquire
003 4T0853139
CLIP 		- 2 Enquire
004 WHT003570
NUT M3 		- 2 Enquire
005 410827345
JOURNAL 		- 2 Enquire
006 400823359A
FRONT HOOD STRUT 		- 2 Enquire
007 N90319404
SCREW 		- 2 Enquire
008 410805384A
FRONT HOOD RIGHT HINGE ASSEMBLY 		- 1 Enquire
008 410805383A
FRONT HOOD LEFT HINGE ASSEMBLY 		- 1 Enquire
010 1Z0860505C
SCREW 		- 2 Enquire
011 WHT001190
ROUND HD. SCREW 		- 1 Enquire
012 410823537
DOOR OPENING INTERIOR HANDLE ASSEMBLY 		- 1 Enquire
013 N0211963
NUT 		- 1 Enquire
015 418827531
ENGINE HOOD OPENING CABLE ASSEMBLY 		- 1 Enquire
016 410823186
STRIKER PLATE ASSY 		- 1 Enquire
017 410827421
ADJUSTER SCREW 		- 1 Enquire
018 N01020717
SCREW M5X12 		- 1 Enquire
019 410905131
SECURING PLATE 		- 1 Enquire
020 N01118312
HEXAGON NUT, SELF-LOCKING 		- 2 Enquire
021 WHT002961
WASHER 		- 2 Enquire
022 N91051101
SCREW M6X30 		- 2 Enquire
023 410827501B
LOCK 		- 1 Enquire
025 1Z0860505C
SCREW 		- 2 Enquire
026 410823183
REAR HOOD SAFETY CATCH BRACKET ASSEMBLY 		- 1 Enquire
028 410823723
GASKET 		- 1 Enquire
029 477971851
CLAMP 		- 2 Enquire
030 N0152773
WASHER 		- 2 Enquire
031 N0133481
SPRING PIN 		- 1 Enquire
