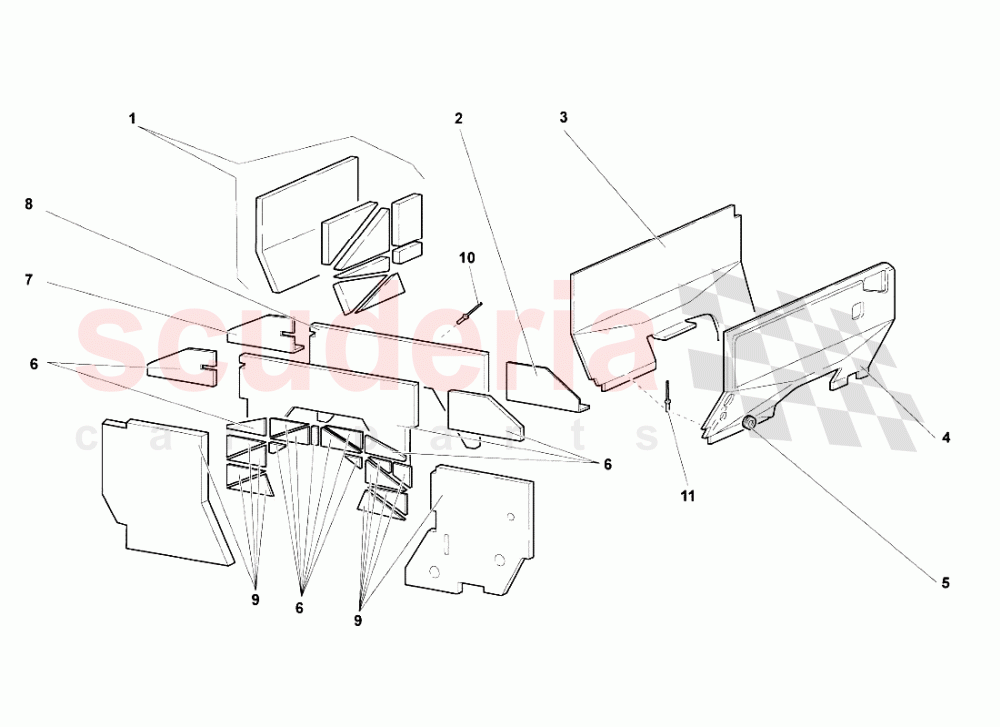

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	310147021	FUEL TANK ISOLATION SET	310147021 FUEL TANK ISOLATION SET	$385.74	1
002	418103763	ENGINE COMPARTMENT LEFT FIREPROOF SHIELD	418103763 ENGINE COMPARTMENT LEFT FIREPROOF SHIELD	$128.75	1
003	418863932B	RIGHT HEAT SHIELD	418863932B RIGHT HEAT SHIELD	$2,358.88	1
004	418863931B	LEFT HEAT SHIELD	418863931B LEFT HEAT SHIELD	$2,358.88	1
005	400825837	RUBBER RING	400825837 RUBBER RING	$7.53	1
006	310147022	ENGINE SIDE FIREPROOF SET	310147022 ENGINE SIDE FIREPROOF SET	$818.55	1
007	418103764A	ENGINE COMPARTMENT RIGHT FIREPROOF SHIELD	418103764A ENGINE COMPARTMENT RIGHT FIREPROOF SHIELD	$130.12	1
008	418864926A	ENGINE COMPARTMENT CENTER FIREPROOF SHIELD	418864926A ENGINE COMPARTMENT CENTER FIREPROOF SHIELD	$277.57	1
009	310147049	FLAME SHIELD INSULATION ENGINE SIDE, BOTTOM	310147049 FLAME SHIELD INSULATION ENGINE SIDE, BOTTOM	$1,733.87	1
010	410863059	RIVET 3,2X16	410863059 RIVET 3,2X16	$0.53 MSRP: ~~7.31~~ (92.7% off)	25
011	410867883	RIVET 3,2X16	410867883 RIVET 3,2X16	$1.34 MSRP: ~~7.17~~ (81.3% off)	30
011	410806223	RIVET 3,2X16	410806223 RIVET 3,2X16	$2.57	8
