Lh External Side Member

Lamborghini Murcielago LP640

Find Your Part

Lamborghini Murcielago LP640 - Lh External Side Member

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

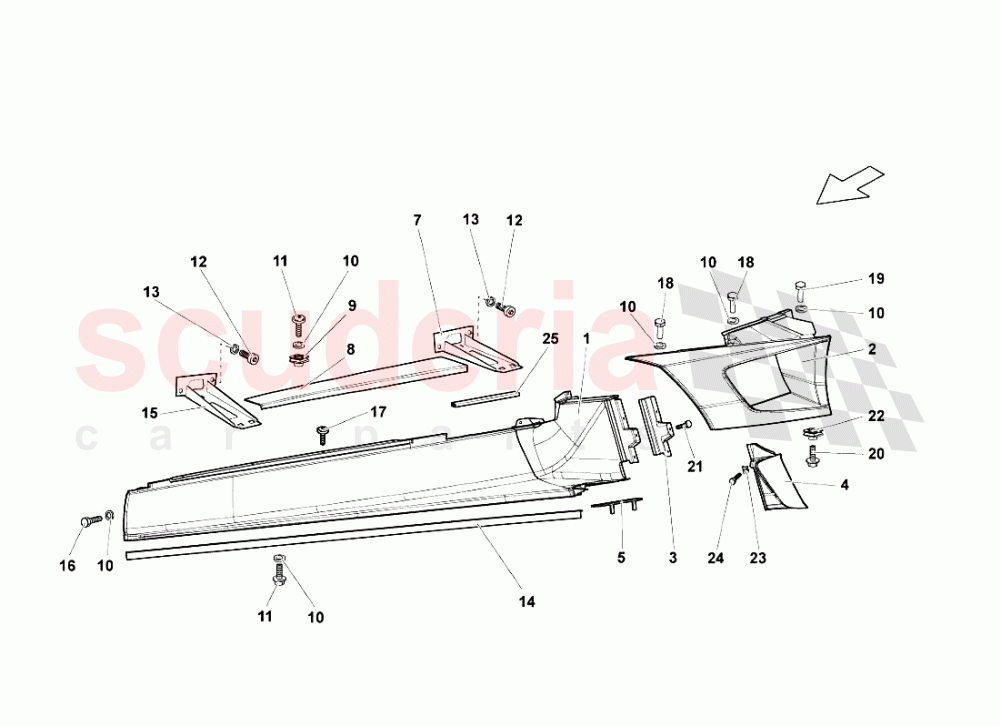

Lh External Side Member of Lamborghini Lamborghini Murcielago LP640 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410853989A
FRONT LEFT SIDE MEMBER ASSEMBLY 		- 1 Enquire
002 410853267
REAR LEFT SIDE MEMBER 		- 1 Enquire
003 410853647
BRACKET 		- 1 Enquire
004 410853293
COVER 		- 1 Enquire
005 410853945
BRACKET 		- 1 Enquire
007 410813549
BRACKET 		- 1 Enquire
008 410853491B
SCUFF PLATE (CARBON INTERIOR LIGHT) 		- 1 Enquire
008 410853491A
SCUFF PLATE (CARBON INTERIOR - SUPPLY VIN) 		- 1 Enquire
009 N91195701
SPEED NUT 		- 4 Enquire
010 WHT002961
WASHER 		- 18 Enquire
011 N10718801
HEX COLLARED BOLT 		- 15 Enquire
012 WHT003101
SCREW 		- 4 Enquire
013 N01152427
WASHER 		- 4 Enquire
014 410857469
AERODYNAMIC LH STRAP IRON 		- 1 Enquire
015 410813550
Bracket 		- 1 Enquire
016 WHT003069
SCREW M6X1X20 		- 1 Enquire
017 WHT000757
SCREW 		- 4 Enquire
018 N10718801
HEX COLLARED BOLT 		- 2 Enquire
019 N90319404
SCREW 		- 1 Enquire
020 N91136801
HEXAGON SOCKET HEAD PANEL BOLT 		- 3 Enquire
021 WHT003574
SCREW 		- 3 Enquire
022 N90834301
CLIP NUT 		- 3 Enquire
023 N0154523
CLIP ST4.2X13.00X11.00 		- 2 Enquire
024 N90986803
HEXAGON SOCKET HEAD PANEL BOLT 		- 2 Enquire
025 400853893
GASKET 		- 1 Enquire
