Rear Bumpers of Lamborghini Lamborghini Murcielago LP640

View All

Lamborghini Murcielago LP640 - Rear Bumpers

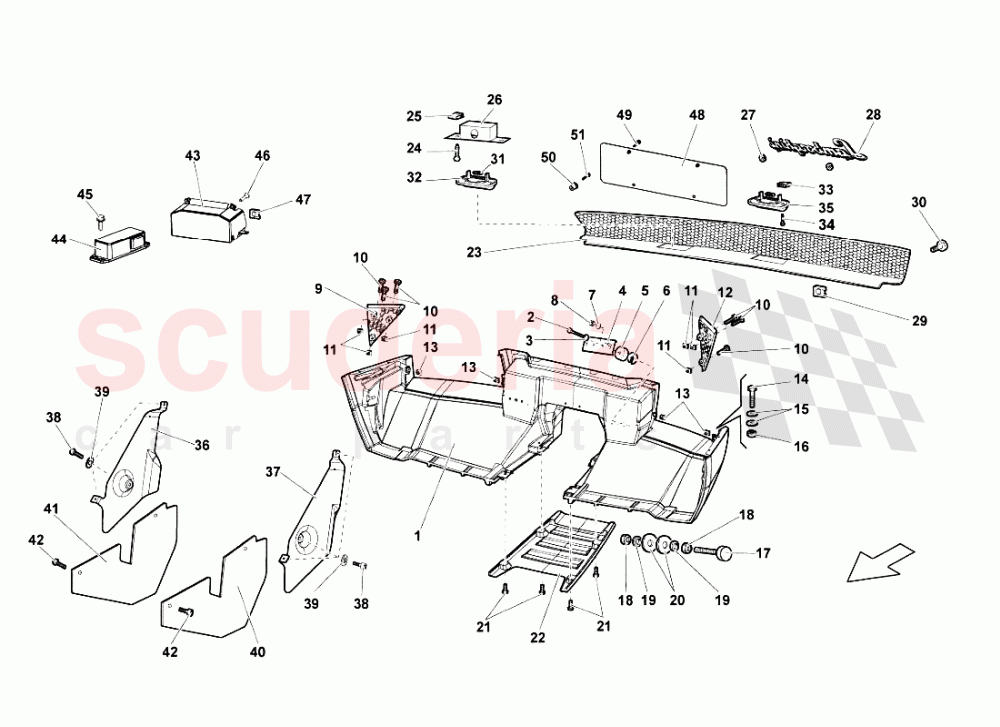

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	410807303	REAR BUMPER ASSEMBLY	410807303 REAR BUMPER ASSEMBLY	$26,525.44	1
002	N10027004	SCREW M8X90	N10027004 SCREW M8X90	$8.48	4
003	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 IN STOCK	$1.55	4
004	410807331	REAR BUMPER FIXING BRACKET ASSEMBLY IN STOCK	410807331 REAR BUMPER FIXING BRACKET ASSEMBLY IN STOCK	$67.08	2
005	410807869	REAR BUMPER CENTRAL RUBBER	410807869 REAR BUMPER CENTRAL RUBBER	$257.40	4
006	410807255	5.0 MM SHIM	410807255 5.0 MM SHIM	$153.25	4
006	410807567	5.0 MM SHIM	410807567 5.0 MM SHIM	$153.25	4
007	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 IN STOCK	$1.55	4
008	N0111849	NUT IN STOCK	N0111849 NUT IN STOCK	$2.15 MSRP: ~~7.25~~ (70.3% off)	4
009	410807698	RIGHT GRID	410807698 RIGHT GRID	$209.01	1
010	N90659905	SCREW HEX SOCKET M4 X 16 IN STOCK	N90659905 SCREW HEX SOCKET M4 X 16 IN STOCK	$9.92	6
011	N90526602	SPEED NUT IN STOCK	N90526602 SPEED NUT IN STOCK	$1.16 MSRP: ~~7.31~~ (84.1% off)	6
012	410807697	LEFT GRID	410807697 LEFT GRID	$209.01	1
013	400821841	CLIP	400821841 CLIP	$8.75	4
014	N0402936	HEXAGON BOLT IN STOCK	N0402936 HEXAGON BOLT IN STOCK	$1.89 MSRP: ~~7.27~~ (74% off)	4
015	N91109202	WASHER IN STOCK	N91109202 WASHER IN STOCK	$0.67 MSRP: ~~7.29~~ (90.8% off)	8
016	N0211963	NUT IN STOCK	N0211963 NUT IN STOCK	$0.76	4
017	410807699	JOURNAL	410807699 JOURNAL	$90.87	2
018	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.89	2
019	N0152785	WASHER IN STOCK	N0152785 WASHER IN STOCK	$0.40	2
020	N90840802	WASHER IN STOCK	N90840802 WASHER IN STOCK	$0.40 MSRP: ~~7.33~~ (94.5% off)	4
021	N90780903	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90780903 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$0.98	4
022	410807649A	GRID	410807649A GRID	$5,490.58	1
023	410807238	REAR LICENSE PLATE LIGHT GRILLE	410807238 REAR LICENSE PLATE LIGHT GRILLE	$241.27	1
023	410807238B	REAR LICENSE PLATE LIGHT GRILLE (REAR VIEW CAMERA)	410807238B REAR LICENSE PLATE LIGHT GRILLE (REAR VIEW CAMERA)	$270.84	1
024	WHT003065	SCREW (2,9X16) IN STOCK	WHT003065 SCREW (2,9X16) IN STOCK	$1.32 MSRP: ~~7.18~~ (81.6% off)	4
025	N90834301	CLIP NUT IN STOCK	N90834301 CLIP NUT IN STOCK	$1.16	4
026	410807001	BRACKET	410807001 BRACKET	$759.41	2
027	4T0853139	CLIP IN STOCK	4T0853139 CLIP IN STOCK	$1.43 MSRP: ~~7.17~~ (80.1% off)	2
028	400853742B	Lamborghini Lettering IN STOCK	400853742B Lamborghini Lettering IN STOCK	$254.06	1
029	N90834301	CLIP NUT IN STOCK	N90834301 CLIP NUT IN STOCK	$1.16	6
030	N10247302	OVAL HEAD PANEL SCREW IN STOCK	N10247302 OVAL HEAD PANEL SCREW IN STOCK	$0.36 MSRP: ~~7.35~~ (95.1% off)	6
031	6617095	LAMP SV8,5-8 5W	6617095 LAMP SV8,5-8 5W	$9.55	4
032	8N0943022A	RH License Plate Lamp IN STOCK	8N0943022A RH License Plate Lamp IN STOCK	$18.88	1
033	WHT003424	CLIP IN STOCK	WHT003424 CLIP IN STOCK	$0.89 MSRP: ~~7.25~~ (87.7% off)	4
034	WHT003065	SCREW (2,9X16) IN STOCK	WHT003065 SCREW (2,9X16) IN STOCK	$1.32 MSRP: ~~7.18~~ (81.6% off)	4
035	8N0943021A	LH License Plate Lamp IN STOCK	8N0943021A LH License Plate Lamp IN STOCK	$19.11	1
036	410807516B	RH PANEL	410807516B RH PANEL	$918.02	1
037	410807515B	LH PANEL IN STOCK	410807515B LH PANEL IN STOCK	$457.00	1
038	N90319404	SCREW IN STOCK	N90319404 SCREW IN STOCK	$1.89	3
039	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.42	3
040	410863247A	LH INSULATION	410863247A LH INSULATION	$147.19	1
041	410863248A	RH Insulation	410863248A RH Insulation	$147.19	1
042	N90319404	SCREW IN STOCK	N90319404 SCREW IN STOCK	$1.89	4
043	410980543	REAR VIEW CAMERA	410980543 REAR VIEW CAMERA	$3,823.94	1
044	410907441	REAR VIEW CAMERA CONTROL UNIT	410907441 REAR VIEW CAMERA CONTROL UNIT	$1,646.50	1
045	N10082911	SCREW M6X16 IN STOCK	N10082911 SCREW M6X16 IN STOCK	$0.68	2
046	N90632303	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	N90632303 HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$1.89 MSRP: ~~7.07~~ (73.3% off)	2
047	N90834301	CLIP NUT IN STOCK	N90834301 CLIP NUT IN STOCK	$1.16	2
048	400807287	LICENSE PLATE HOLDER (VALID FOR A MARKET CHINESE)	400807287 LICENSE PLATE HOLDER (VALID FOR A MARKET CHINESE)	$99.87	1
049	WHT000757	SCREW IN STOCK	WHT000757 SCREW IN STOCK	$5.19	2
050	400807995	GROMMET	400807995 GROMMET	$3.51	2
051	N10637302	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10637302 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$0.95 MSRP: ~~7.24~~ (86.9% off)	2
