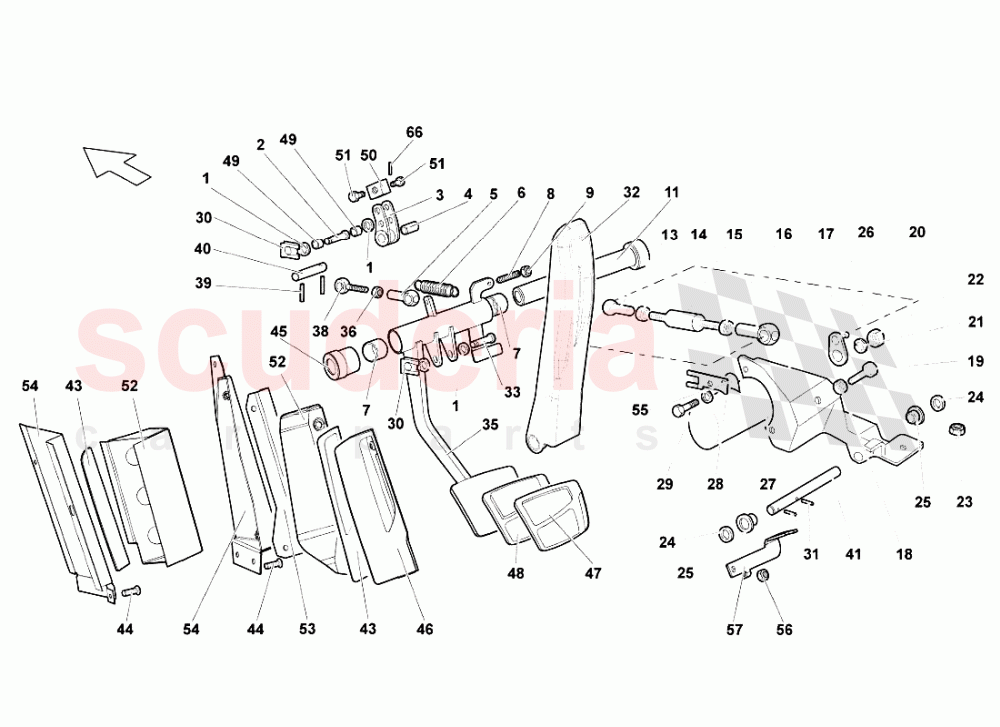

Lamborghini Murcielago - E-GEAR CONTROL PEDAL

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
002	410721966	JOURNAL	410721966 JOURNAL	$200.96	1
003	410721385	LEVER	410721385 LEVER	$115.84	1
004	8801209	BUSHING	8801209 BUSHING	$9.55 MSRP: ~~9.90~~ (3.5% off)	1
005	410721993	BALL JOINT COUPLING	410721993 BALL JOINT COUPLING	$75.68	1
006	410721363	SPRING	410721363 SPRING	$174.74	1
007	8802501	BUSHING	8802501 BUSHING	$21.91 MSRP: ~~22.90~~ (4.3% off)	1
008	4210834	ADJUSTING SLEEVE	4210834 ADJUSTING SLEEVE	$4.55 MSRP: ~~4.70~~ (3.2% off)	1
009	N01100637	NUT M6	N01100637 NUT M6	$0.33 MSRP: ~~7.29~~ (95.5% off)	1
011	413721325A	JOURNAL	413721325A JOURNAL	$275.53	1
013	400721214E	BALL JOINT HEAD (LEFT HAND THREAD)	400721214E BALL JOINT HEAD (LEFT HAND THREAD)	$63.44	1
014	N10690001	NUT (LEFT HAND THREAD)	N10690001 NUT (LEFT HAND THREAD)	$526.87	1
015	400721743	SHAFT	400721743 SHAFT	$47.84	1
016	8200501	NUT	8200501 NUT	$0.06	1
017	400721214A	BALL JOINT HEAD	400721214A BALL JOINT HEAD	$51.61	1
018	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	$1.89	1
019	N01033520	SCREW M8X35	N01033520 SCREW M8X35	$1.55 MSRP: ~~7.19~~ (78.4% off)	1
020	400721728	LEVER	400721728 LEVER	$40.78	1
021	8400628	WASHER	8400628 WASHER	$0.22 MSRP: ~~7.36~~ (97% off)	1
022	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING	$1.96 MSRP: ~~7.29~~ (73.1% off)	1
023	N90226403	NUT M8	N90226403 NUT M8	$0.85 MSRP: ~~7.26~~ (88.3% off)	2
023	N90226404	HEXAGON COLLAR NUT SELF-LOCKING	N90226404 HEXAGON COLLAR NUT SELF-LOCKING	$2.29 MSRP: ~~7.22~~ (68.3% off)	2
024	WHT000697	WASHER	WHT000697 WASHER	$0.98 MSRP: ~~7.24~~ (86.5% off)	2
025	400721543	BUSHING	400721543 BUSHING	$27.43	2
026	400721651A	SUPPORT	400721651A SUPPORT	$156.58	1
027	400907475A	POTENTIOMETER	400907475A POTENTIOMETER	$1,848.13	1
028	8400628	WASHER	8400628 WASHER	$0.22 MSRP: ~~7.36~~ (97% off)	2
029	8700614	SCREW	8700614 SCREW	$0.27	2
030	8581004	CLIP	8581004 CLIP	$9.38 MSRP: ~~9.70~~ (3.3% off)	2
031	8900204	PIN	8900204 PIN	$0.16 MSRP: ~~7.37~~ (97.8% off)	2
032	400721507A	ACCELERATOR PEDAL	400721507A ACCELERATOR PEDAL	$2,419.35	1
033	410721147	JOURNAL	410721147 JOURNAL	$284.28	1
035	413721145A	BRAKE PEDAL	413721145A BRAKE PEDAL	$620.96	1
036	N10155210	NUT	N10155210 NUT	$1.96 MSRP: ~~7.24~~ (72.9% off)	1
038	410721645	TIE ROD	410721645 TIE ROD	$80.93	1
039	N0133481	SPRING PIN	N0133481 SPRING PIN	$0.27 MSRP: ~~7.37~~ (96.3% off)	1
040	410721965	JOURNAL	410721965 JOURNAL	$29.77	1
041	400721157	JOURNAL	400721157 JOURNAL	$32.81	1
043	401864431	RUBBER FOOT MAT	401864431 RUBBER FOOT MAT	$21.86	1
044	N90780901	OVAL HEXAGON SOCKET HEAD BOLT	N90780901 OVAL HEXAGON SOCKET HEAD BOLT	$0.30 MSRP: ~~7.38~~ (95.9% off)	1
045	410723167	SPACER	410723167 SPACER	$70.42	1
046	401864419B	FOOTREST DRIVER SIDE	401864419B FOOTREST DRIVER SIDE	$219.77	1
047	400721780A	COVER	400721780A COVER	$297.71	1
048	400721174D	CAP FOR FOOT BRAKE PEDAL	400721174D CAP FOR FOOT BRAKE PEDAL	$43.68	1
049	410721134A	BUSHING	410721134A BUSHING	$223.81	1
050	410721255	BLOCK	410721255 BLOCK	$65.94	1
051	410721379	SCREW	410721379 SCREW	$45.45	1
052	401864431B	COVER	401864431B COVER	$84.95	1
053	401864523A	SUPPORT	401864523A SUPPORT	$54.70	1
054	413864775B	BRACKET	413864775B BRACKET	$113.05	1
055	410971806	SUPPORT	410971806 SUPPORT	$34.08	1
066	N0133311	PIN 2.0X12.0	N0133311 PIN 2.0X12.0	$0.21 MSRP: ~~7.37~~ (97.2% off)	2
