Lamborghini Murcielago - GEARBOX

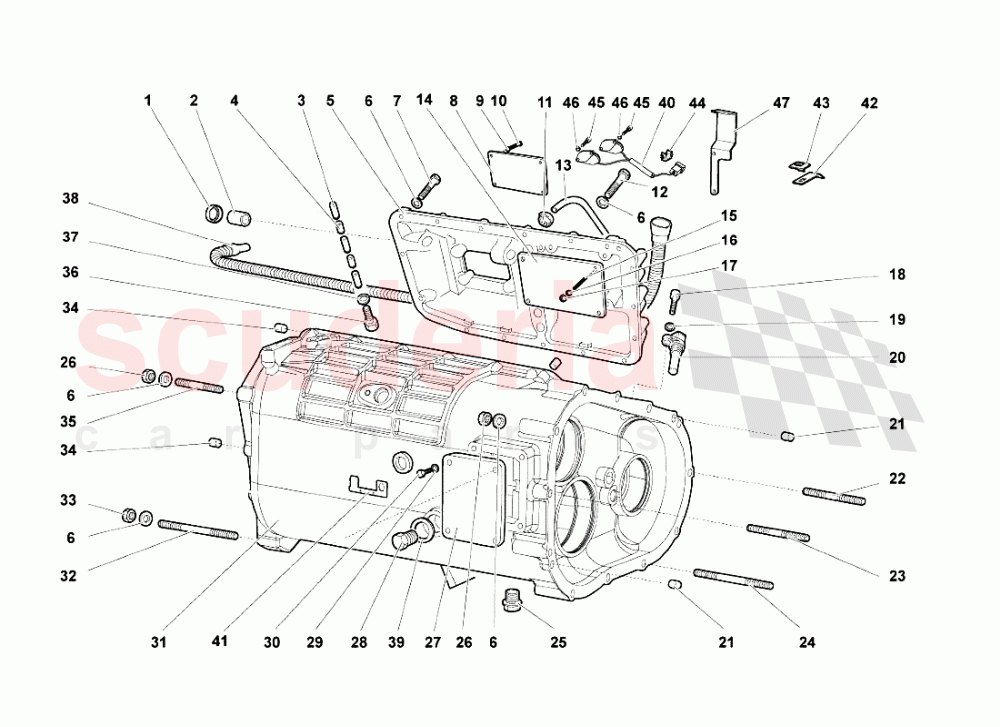

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	86311520	SEAL RING	86311520 SEAL RING	-	1	Enquire
002	86311621	BUSHING	86311621 BUSHING	-	1	Enquire
003	86311281A	PAWL	86311281A PAWL	-	3	Enquire
004	86311281B	PAWL	86311281B PAWL	-	2	Enquire
005	86301201C	COVER (E-GEAR)	86301201C COVER (E-GEAR)	-	1	Enquire
005	86301201B	COVER (MANUAL GEARBOX)	86301201B COVER (MANUAL GEARBOX)	-	1	Enquire
006	WHT000771	WASHER	WHT000771 WASHER	-	18	Enquire
007	8100658	SCREW	8100658 SCREW	-	6	Enquire
008	86301465A	COVER (E-GEAR)	86301465A COVER (E-GEAR)	-	1	Enquire
008	86301465	COVER (MANUAL GEARBOX)	86301465 COVER (MANUAL GEARBOX)	-	1	Enquire
009	WHT001197A	WASHER	WHT001197A WASHER	-	4	Enquire
010	8100630	SCREW	8100630 SCREW	-	4	Enquire
011	8830128	CLAMP	8830128 CLAMP	-	1	Enquire
012	8100629	SCREW	8100629 SCREW	-	12	Enquire
013	86301472	BREATHER PIPE	86301472 BREATHER PIPE	-	1	Enquire
014	86301827	COVER	86301827 COVER	-	1	Enquire
015	8300667	STUD BOLT	8300667 STUD BOLT	-	4	Enquire
017	8200616	NUT	8200616 NUT	-	4	Enquire
018	N0147035	SCREW	N0147035 SCREW	-	2	Enquire
019	WHT001197A	WASHER	WHT001197A WASHER	-	2	Enquire
020	86927321	TIMING SENSOR	86927321 TIMING SENSOR	-	2	Enquire
021	WHT003078	DOWEL	WHT003078 DOWEL	-	2	Enquire
022	8300826	STUD BOLT	8300826 STUD BOLT	-	1	Enquire
023	8300807	STUD BOLT	8300807 STUD BOLT	-	1	Enquire
024	8300827	STUD BOLT	8300827 STUD BOLT	-	10	Enquire
025	86301141	MAGNETIC PLUG	86301141 MAGNETIC PLUG	-	1	Enquire
026	8200806	NUT	8200806 NUT	-	7	Enquire
026	8200806	NUT	8200806 NUT	-	8	Enquire
027	86301173	COVER	86301173 COVER	-	1	Enquire
028	86301141	MAGNETIC PLUG	86301141 MAGNETIC PLUG	-	1	Enquire
029	WHT001197A	WASHER	WHT001197A WASHER	-	4	Enquire
030	8100601	SCREW	8100601 SCREW	-	4	Enquire
031	86301103F	6-GEAR TRANSMISSION CASE (E-GEAR - MANUAL)	86301103F 6-GEAR TRANSMISSION CASE (E-GEAR - MANUAL)	-	1	Enquire
032	8300807	STUD BOLT	8300807 STUD BOLT	-	1	Enquire
033	8200821	NUT	8200821 NUT	-	1	Enquire
034	WHT003078	DOWEL	WHT003078 DOWEL	-	2	Enquire
035	8300803	STUD BOLT	8300803 STUD BOLT	-	8	Enquire
036	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545)	-	1	Enquire
037	N0138302	Washer Copper 8 x 1MM	N0138302 Washer Copper 8 x 1MM	-	1	Enquire
038	61009109	WIRING HARNESS (MANUAL GEARBOX)	61009109 WIRING HARNESS (MANUAL GEARBOX)	-	1	Enquire
039	N0138271	Gasket	N0138271 Gasket	-	1	Enquire
040	86927321A	E-GEAR SENSOR	86927321A E-GEAR SENSOR	-	1	Enquire
041	400326138	SUPPORT	400326138 SUPPORT	-	1	Enquire
042	400971890	BRACKET	400971890 BRACKET	-	1	Enquire
043	1J0937510A	BRACKET FOR CONNECTOR HOUSING	1J0937510A BRACKET FOR CONNECTOR HOUSING	-	1	Enquire
044	410868630	BRACKET	410868630 BRACKET	-	2	Enquire
045	8700476	SCREW	8700476 SCREW	-	4	Enquire
046	8410405	WASHER	8410405 WASHER	-	4	Enquire
047	86301327A	PROTECTION (E-GEAR)	86301327A PROTECTION (E-GEAR)	-	1	Enquire
