MANUAL CLUTCH of Lamborghini Lamborghini Murcielago

View All

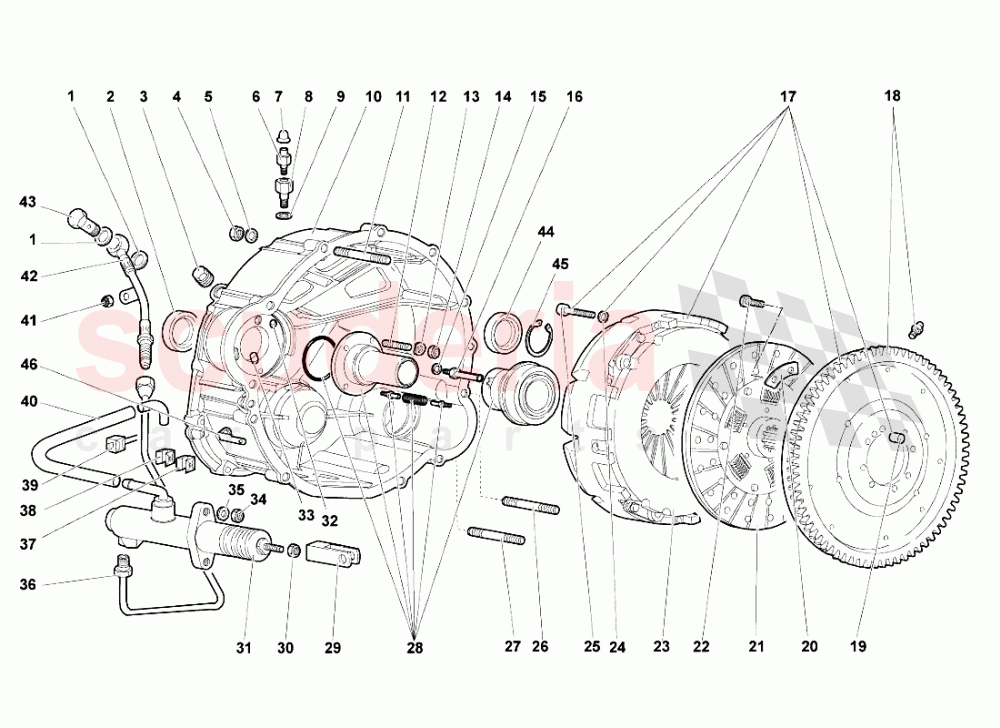

Lamborghini Murcielago - MANUAL CLUTCH

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N0138131	WASHER	N0138131 WASHER	-	2	Enquire
002	86141243	SEAL RING	86141243 SEAL RING	-	1	Enquire
003	86323501	HELI-COIL	86323501 HELI-COIL	-	1	Enquire
004	8200806	NUT	8200806 NUT	-	12	Enquire
005	WHT000771	WASHER	WHT000771 WASHER	-	12	Enquire
006	86301127	BLEEDER SCREW 05-2812-50 BREMBO	86301127 BLEEDER SCREW 05-2812-50 BREMBO	-	1	Enquire
007	86301147	DUST CAP	86301147 DUST CAP	-	1	Enquire
008	86323173	CONNECTOR	86323173 CONNECTOR	-	1	Enquire
009	N91014802	SEAL RING	N91014802 SEAL RING	-	1	Enquire
010	86323209C	CLUTCH HOUSING	86323209C CLUTCH HOUSING	-	1	Enquire
011	8300808	STUD BOLT	8300808 STUD BOLT use : WHT003027	-	11	Enquire
012	WHT002942	STUD BOLT	WHT002942 STUD BOLT	-	3	Enquire
013	WHT003213	WASHER	WHT003213 WASHER	-	3	Enquire
014	N01100637	NUT M6	N01100637 NUT M6	-	2	Enquire
015	WHT003213	WASHER	WHT003213 WASHER	-	3	Enquire
016	86141161A	ANTIROTATION BAR HOLD	86141161A ANTIROTATION BAR HOLD	-	1	Enquire

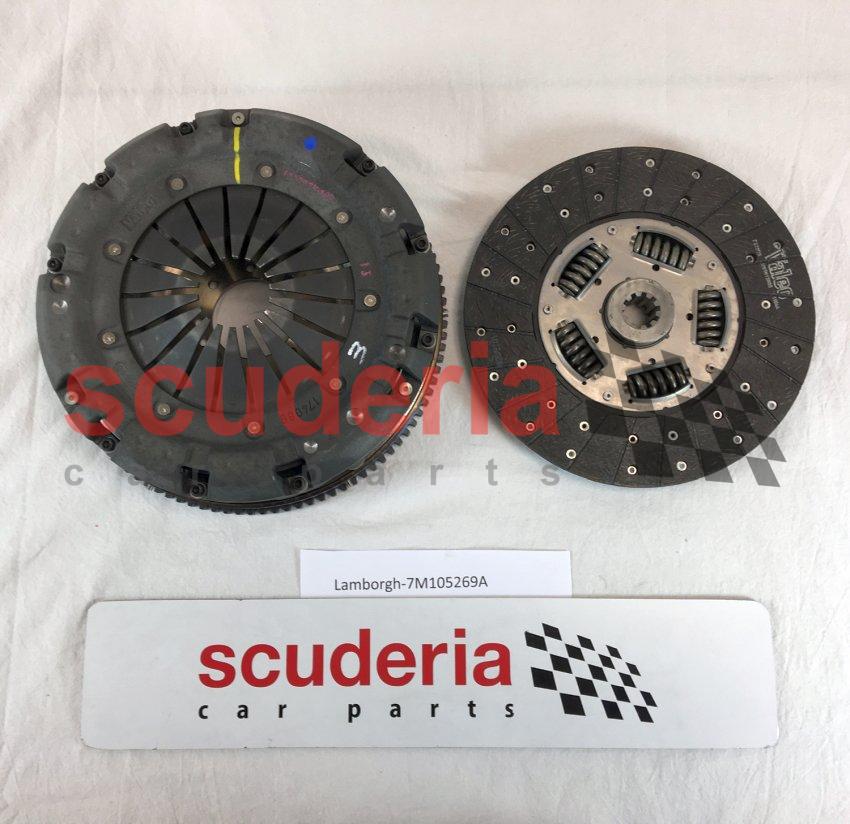

017	7M105269A	Clutch Flywheel	7M105269A Clutch Flywheel	-	1	Enquire
019	WHT003078	DOWEL	WHT003078 DOWEL	-	1	Enquire
020	410141179	Retaining Plate	410141179 Retaining Plate	-	4	Enquire
022	WHT002951	Hexagon Head Bolt M8x1.25x23	WHT002951 Hexagon Head Bolt M8x1.25x23	-	8	Enquire
024	WHT001197A	WASHER	WHT001197A WASHER	-	9	Enquire
025	WHT002960	SCREW	WHT002960 SCREW	-	9	Enquire
026	8300807	STUD BOLT	8300807 STUD BOLT	-	2	Enquire
027	8300826	STUD BOLT	8300826 STUD BOLT	-	1	Enquire

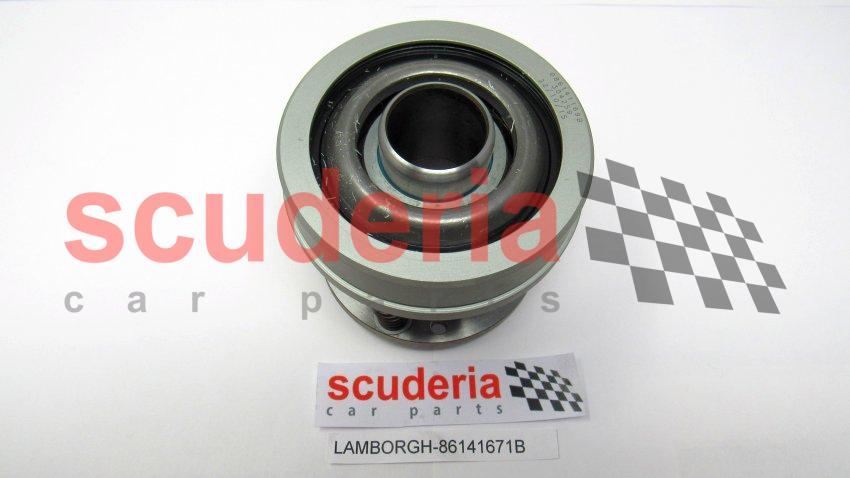

028	86141671B	Thrust Bearing	86141671B Thrust Bearing	-	1	Enquire
029	410721213	FORK	410721213 FORK	-	1	Enquire
030	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	-	1	Enquire
031	410721401A	CLUTCH PUMP	410721401A CLUTCH PUMP	-	1	Enquire
032	N90039604	SEAL RING ARRIVING SOON	N90039604 SEAL RING ARRIVING SOON	-	1	Enquire
033	N90111301	O-RING	N90111301 O-RING	-	1	Enquire
034	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	-	2	Enquire
035	N0152785	WASHER	N0152785 WASHER	-	2	Enquire
036	413721461	PIPE	413721461 PIPE	-	1	Enquire
037	400611799A	CLIP	400611799A CLIP	-	6	Enquire
038	400971848	BRACKET 0 6 MM	400971848 BRACKET 0 6 MM	-	2	Enquire
039	400611757	JOURNAL	400611757 JOURNAL	-	1	Enquire
040	413721465	PIPE	413721465 PIPE	-	1	Enquire
041	8201216	NUT	8201216 NUT	-	1	Enquire
042	410721462	HOSE	410721462 HOSE	-	1	Enquire
043	N0210717	SCREW WITH HOLE	N0210717 SCREW WITH HOLE	-	1	Enquire
044	86311819	SEAL RING	86311819 SEAL RING	-	1	Enquire
045	WHT003580	SEAL RING	WHT003580 SEAL RING	-	1	Enquire
046	410911085	BRACKET	410911085 BRACKET	-	1	Enquire
