MANUAL PEDAL CLUSTER of Lamborghini Lamborghini Murcielago

View All

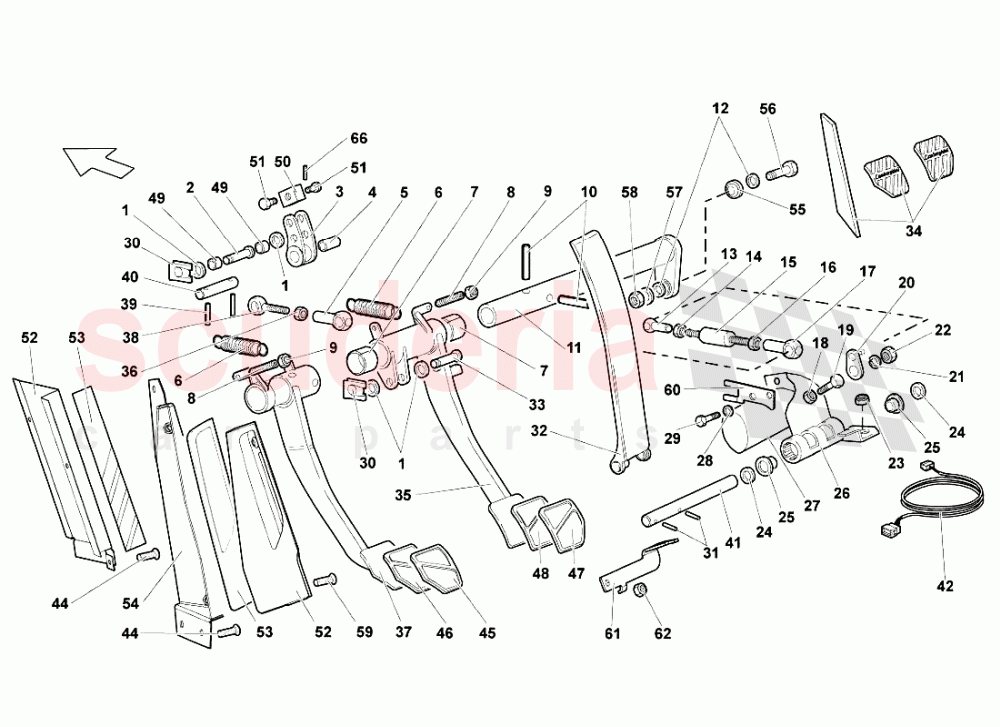

Lamborghini Murcielago - MANUAL PEDAL CLUSTER

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N01152714	WASHER 10,5X21X2	N01152714 WASHER 10,5X21X2	-	4	Enquire
002	410721966	JOURNAL	410721966 JOURNAL	-	1	Enquire
003	410721385	LEVER	410721385 LEVER	-	1	Enquire
004	8801209	BUSHING	8801209 BUSHING	-	1	Enquire
005	410721993	BALL JOINT COUPLING	410721993 BALL JOINT COUPLING	-	1	Enquire
006	410721363	SPRING	410721363 SPRING	-	2	Enquire
007	8802501	BUSHING	8802501 BUSHING	-	2	Enquire
008	4210834	ADJUSTING SLEEVE	4210834 ADJUSTING SLEEVE	-	2	Enquire
009	N01100637	NUT M6	N01100637 NUT M6	-	2	Enquire
010	8900803	PIN	8900803 PIN	-	2	Enquire
011	413721325	JOURNAL	413721325 JOURNAL	-	1	Enquire
012	8400819	WASHER 8X12X1	8400819 WASHER 8X12X1	-	2	Enquire
013	400721214E	BALL JOINT HEAD (LEFT HAND THREAD)	400721214E BALL JOINT HEAD (LEFT HAND THREAD)	-	1	Enquire
014	N10690001	NUT (LEFT HAND THREAD)	N10690001 NUT (LEFT HAND THREAD)	-	1	Enquire
015	400721743	SHAFT	400721743 SHAFT	-	1	Enquire
016	8200501	NUT	8200501 NUT	-	1	Enquire
017	400721214A	BALL JOINT HEAD	400721214A BALL JOINT HEAD	-	1	Enquire
018	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	-	1	Enquire
019	N01033520	SCREW M8X35	N01033520 SCREW M8X35	-	1	Enquire
020	400721728	LEVER	400721728 LEVER	-	1	Enquire
021	8400628	WASHER	8400628 WASHER	-	1	Enquire
022	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING	-	1	Enquire
023	N90226403	NUT M8	N90226403 NUT M8	-	2	Enquire
023	N90226404	HEXAGON COLLAR NUT SELF-LOCKING	N90226404 HEXAGON COLLAR NUT SELF-LOCKING	-	2	Enquire
024	WHT000697	WASHER	WHT000697 WASHER	-	2	Enquire
025	400721543	BUSHING	400721543 BUSHING	-	2	Enquire
026	400721651A	SUPPORT	400721651A SUPPORT	-	1	Enquire
027	400907475A	POTENTIOMETER	400907475A POTENTIOMETER	-	1	Enquire
028	8400628	WASHER	8400628 WASHER	-	2	Enquire
029	8700614	SCREW	8700614 SCREW	-	2	Enquire
030	8581004	CLIP	8581004 CLIP	-	2	Enquire
031	8900204	PIN	8900204 PIN	-	2	Enquire
032	400721507A	ACCELERATOR PEDAL	400721507A ACCELERATOR PEDAL	-	1	Enquire
033	410721147	JOURNAL	410721147 JOURNAL	-	1	Enquire
035	413721145	BRAKE PEDAL	413721145 BRAKE PEDAL	-	1	Enquire
036	N10155210	NUT	N10155210 NUT	-	1	Enquire
037	413721321	CLUTCH PEDAL	413721321 CLUTCH PEDAL	-	1	Enquire
038	410721645	TIE ROD	410721645 TIE ROD	-	1	Enquire
039	N0133481	SPRING PIN	N0133481 SPRING PIN	-	1	Enquire
040	410721965	JOURNAL	410721965 JOURNAL	-	1	Enquire
041	400721157	JOURNAL	400721157 JOURNAL	-	1	Enquire
044	8700702	SCREW M6X16	8700702 SCREW M6X16	-	1	Enquire
045	400721779	COVER	400721779 COVER	-	1	Enquire
046	400721173	COVER	400721173 COVER	-	1	Enquire
047	400721780	COVER	400721780 COVER	-	1	Enquire
048	400721174C	COVER	400721174C COVER	-	1	Enquire
049	410721134A	BUSHING	410721134A BUSHING	-	1	Enquire
050	410721255	BLOCK	410721255 BLOCK	-	1	Enquire
051	410721379	SCREW	410721379 SCREW	-	1	Enquire
052	413864419	FOOTREST DRIVER SIDE	413864419 FOOTREST DRIVER SIDE	-	1	Enquire
053	401864431	RUBBER FOOT MAT	401864431 RUBBER FOOT MAT	-	1	Enquire
054	413864775B	BRACKET	413864775B BRACKET	-	1	Enquire
055	410721427	BALL JOINT	410721427 BALL JOINT	-	1	Enquire
056	2129460	JOURNAL	2129460 JOURNAL	-	1	Enquire
057	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	-	1	Enquire
058	N0111849	NUT	N0111849 NUT	-	1	Enquire
059	8700638	SCREW M6X16	8700638 SCREW M6X16	-	2	Enquire
060	410971806	SUPPORT	410971806 SUPPORT	-	1	Enquire
066	N0133311	PIN 2.0X12.0	N0133311 PIN 2.0X12.0	-	2	Enquire
