MAIN SHAFT of Lamborghini Lamborghini Murcielago

View All

Lamborghini Murcielago - MAIN SHAFT

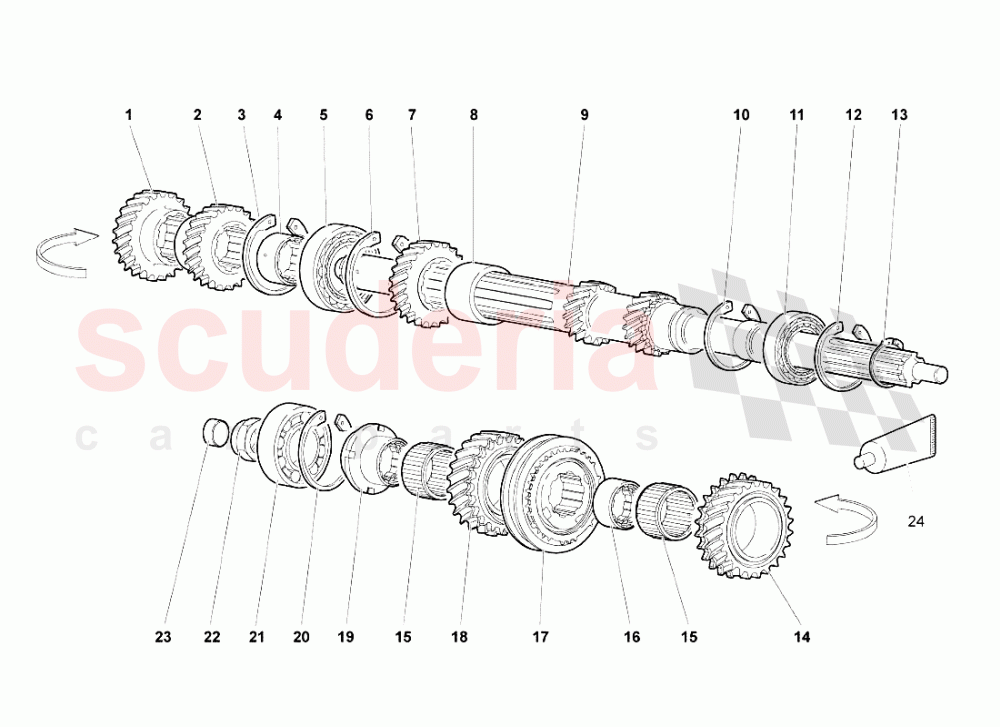

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	86311149B	FOURTH GEAR	86311149B FOURTH GEAR	-	1	Enquire
002	86311131C	THIRD GEAR	86311131C THIRD GEAR	-	1	Enquire
003	WHT003584	SEAL RING	WHT003584 SEAL RING	-	1	Enquire
004	86311187B	INNER RING	86311187B INNER RING	-	1	Enquire
005	86301133	BEARING 080	86301133 BEARING 080	-	1	Enquire
006	WHT003584	SEAL RING	WHT003584 SEAL RING	-	1	Enquire
007	86311261A	SECOND GEAR	86311261A SECOND GEAR	-	1	Enquire
008	86311357A	SPACER	86311357A SPACER	-	1	Enquire
009	86311105C	MAIN SHAFT (To order together with the ref. 2 of the table 24.06.00)	86311105C MAIN SHAFT (To order together with the ref. 2 of the table 24.06.00)	-	1	Enquire
010	WHT002544	SEAL RING	WHT002544 SEAL RING	-	1	Enquire
011	86301897	BEARING	86301897 BEARING	-	1	Enquire
012	WHT002544	SEAL RING	WHT002544 SEAL RING	-	1	Enquire
013	8583501	SEAL RING	8583501 SEAL RING	-	1	Enquire
014	86311361E	FIFTH GEAR ASSEMBLY + CROWN GEAR	86311361E FIFTH GEAR ASSEMBLY + CROWN GEAR	-	1	Enquire
015	86311228A	Roller Bearing	86311228A Roller Bearing	-	1	Enquire
016	86301374A	BUSHING	86301374A BUSHING	-	1	Enquire
017	86311309B	SYNCHRONIZING GEAR D.71/76 + CROWN GEAR	86311309B SYNCHRONIZING GEAR D.71/76 + CROWN GEAR	-	1	Enquire
018	86311389C	SIXTH GEAR ASSEMBLY WITH CROWN GEAR	86311389C SIXTH GEAR ASSEMBLY WITH CROWN GEAR	-	1	Enquire
019	24007182	INNER RING	24007182 INNER RING	-	1	Enquire
020	WHT003584	SEAL RING	WHT003584 SEAL RING	-	1	Enquire
021	86301845	BEARING	86301845 BEARING	-	1	Enquire
022	86301618	RING NUT	86301618 RING NUT	-	1	Enquire
023	86311599	PLUG	86311599 PLUG	-	1	Enquire
024	900000130	GREASE	900000130 GREASE	-	1	Enquire
