Lamborghini Murcielago - REAR DIFFERENTIAL CASE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

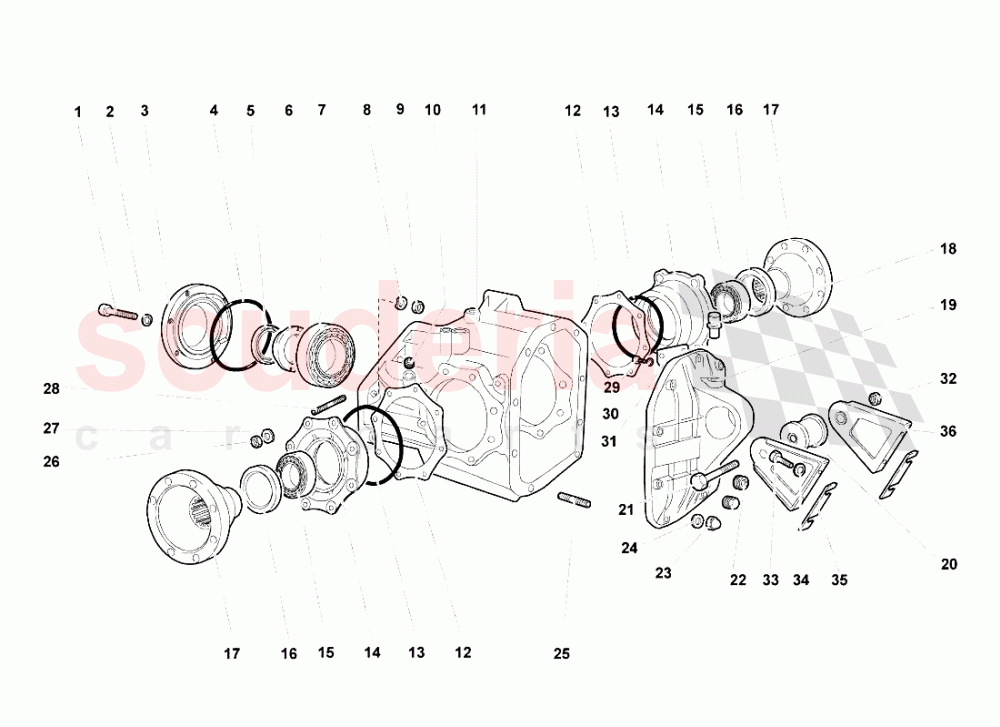

REAR DIFFERENTIAL CASE of Lamborghini Lamborghini Murcielago Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8700614
SCREW 		$0.27 6
002 8410614
WASHER 		$0.40 (94.5% off) 6
003 B9525584
FLANGE 		$497.32 1
004 WHT002222
SEAL RING 		$13.10 1
005 B9525596
SEAL RING 		$63.32 1
006 B9517606
RING NUT 		$108.09 1
007 8545503
BEARING 		$254.72 1
008 WHT000768
WASHER
IN STOCK 		$1.96 (73.1% off) 9
009 8201033
NUT 		$0.98 (86.5% off) 9
010 8931414
PLUG 		$5.45 1
011 B9507103C
REAR DIFFERENTIAL CASE 		$3,790.30 1
012 B9517242K
0.05 mm ADJUSTMENT SHIM 		$20.30 2
012 B9517242H
0.2 mm ADJUSTMENT SHIM 		$16.95 2
012 B9517242F
0.5 MM ADJUSTMENT SHIM 		$61.15 2
012 B9517242G
0.3 mm ADJUSTMENT SHIM 		$31.59 2
012 B9517242J
0.1 mm ADJUSTMENT SHIM 		$21.44 2
013 WHT002221
GASKET 		$36.03 2
014 B9501312B
FLANGE 		$739.23 2
015 B9501660
BEARING 		$114.25 2
016 B9525583
OIL SEAL
IN STOCK 		$88.04 2
017 B9501265
FLANGE 		$733.88 1
018 B9507141
OIL BREATHER PIPE 		$69.10 1
019 B9507145A
COVER 		$684.14 1
020 B9501144
support mount
IN STOCK 		$243.94 1
021 8101430
SCREW 		$3.54 (3% off) 1
022 86301141A
MAGNETIC PLUG 		$37.19 2
023 N01100845
HEXAGON NUT
IN STOCK 		$1.89 10
025 WHT003028
THREADED PIN 		$22.30 10
026 N01100845
HEXAGON NUT
IN STOCK 		$1.89 16
028 8300825
STUD BOLT 		$14.25 16
029 8100613
SCREW 		$0.27 (96.3% off) 3
030 8410614
WASHER 		$0.40 (94.5% off) 3
031 B9501716
SHEET 		$56.52 1
032 8201416
NUT 		$1.74 1
033 8100862
SCREW 		$0.64 4
034 WHT002962
WASHER 14X8.4X1.5
IN STOCK 		$0.33 (95.5% off) 4
035 410813761
PLATE 		$13.80 14
036 410813297
SUPPORT 		$261.43 2
