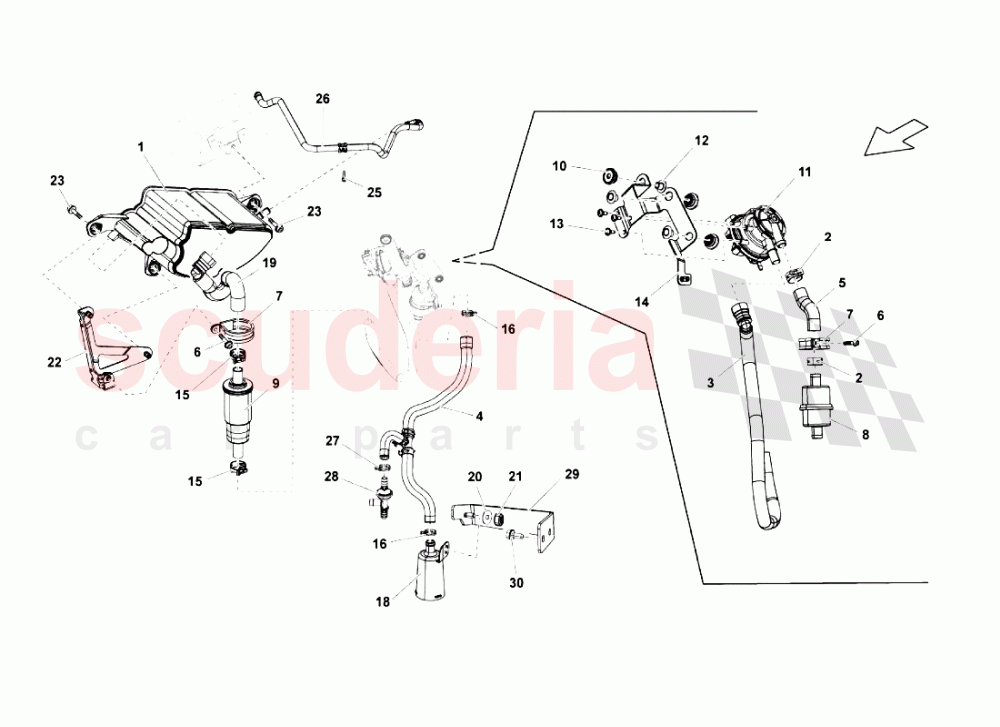

Lamborghini Gallardo LP560 Spyder - Vapor Filter

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	3D0201801F	VAPOR FILTER	3D0201801F VAPOR FILTER	-	1	Enquire
002	N90686901	SPRING BAND CLAMP	N90686901 SPRING BAND CLAMP	-	2	Enquire
004	407201983	PIPE	407201983 PIPE	-	1	Enquire
005	407906272	PIPE	407906272 PIPE	-	1	Enquire
006	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE	-	2	Enquire
007	N90942301	CLAMP	N90942301 CLAMP	-	2	Enquire
008	4D0906321C	FILTER	4D0906321C FILTER	-	1	Enquire
009	4F0201801B	CANISTER FILTER	4F0201801B CANISTER FILTER	-	1	Enquire
010	8Z0129669A	GROMMET	8Z0129669A GROMMET	-	3	Enquire
011	7H0906271A	PUMP	7H0906271A PUMP	-	1	Enquire
012	8Z0129734	BUSH	8Z0129734 BUSH	-	3	Enquire
013	N90829802	HEXAGON SOCKET HEAD PANEL BOLT	N90829802 HEXAGON SOCKET HEAD PANEL BOLT	-	3	Enquire
014	407201369	BRACKET	407201369 BRACKET	-	1	Enquire
015	4B0422379A	SPRING BAND CLAMP	4B0422379A SPRING BAND CLAMP	-	1	Enquire
016	N90686901	SPRING BAND CLAMP	N90686901 SPRING BAND CLAMP	-	1	Enquire
018	400201890	END PIECE	400201890 END PIECE	-	1	Enquire
019	407201159	PIPE	407201159 PIPE	-	1	Enquire
020	WHT002961	WASHER	WHT002961 WASHER	-	1	Enquire
021	N1508213	NUT M6	N1508213 NUT M6	-	1	Enquire
022	407201187	BRACKET	407201187 BRACKET	-	1	Enquire
023	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	-	3	Enquire
025	WHT001190	ROUND HD. SCREW	WHT001190 ROUND HD. SCREW	-	1	Enquire
026	407133352A	PIPE	407133352A PIPE	-	1	Enquire
027	N90655401	CLAMP	N90655401 CLAMP	-	1	Enquire
028	400201811	VALVE	400201811 VALVE	-	1	Enquire
029	400201859	BRACKET	400201859 BRACKET	-	1	Enquire
030	N90847903	Screw M6X15	N90847903 Screw M6X15	-	2	Enquire
