Oil System Radiator of Lamborghini Lamborghini Gallardo LP560 Spyder

View All

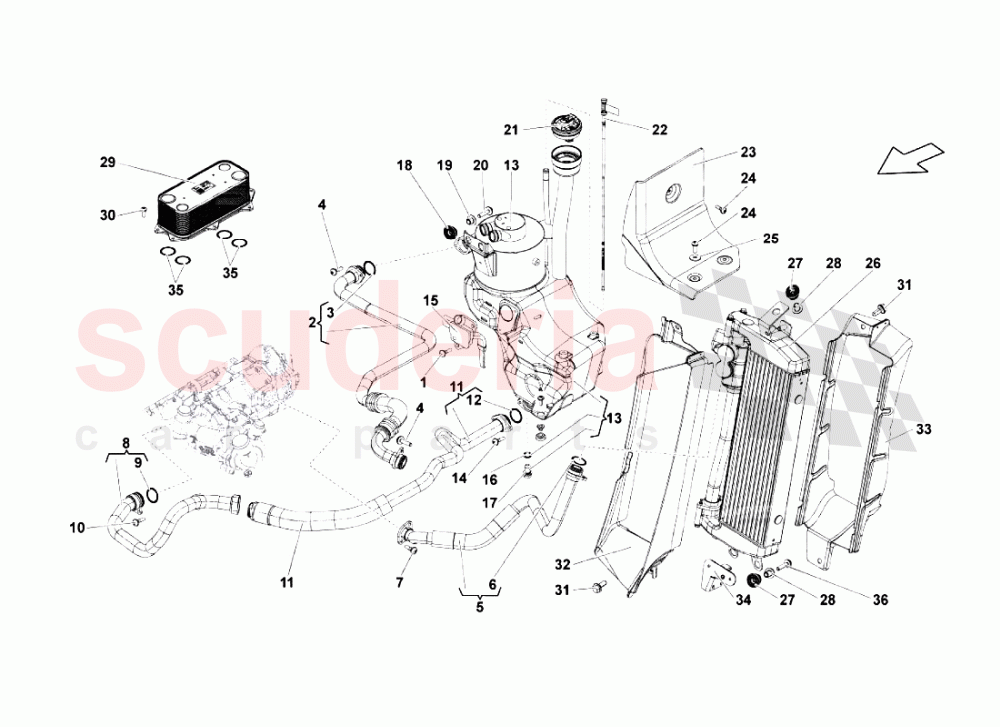

Lamborghini Gallardo LP560 Spyder - Oil System Radiator

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N91096801	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91096801 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.55 MSRP: ~~7.29~~ (78.7% off)	2
002	400115689C	PIPE	400115689C PIPE	$6,162.62	1
003	N91069701	O-RING IN STOCK	N91069701 O-RING IN STOCK	$4.78 MSRP: ~~46.05~~ (89.6% off)	2
004	N10124306	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10124306 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.60	3
005	400117413B	PIPE	400117413B PIPE	$3,676.06	1
006	N91069701	O-RING IN STOCK	N91069701 O-RING IN STOCK	$4.78 MSRP: ~~46.05~~ (89.6% off)	1
007	N10124306	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10124306 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.60	3
008	420115223	PIPE	420115223 PIPE	$1,733.87	1
009	WHT007432	O-RING IN STOCK	WHT007432 O-RING IN STOCK	$3.89	1
010	N10124306	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10124306 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.60	2
011	420115687F	PIPE	420115687F PIPE 420115687G	$434.16	1
012	WHT007432	O-RING IN STOCK	WHT007432 O-RING IN STOCK	$3.89	2
013	407115373	OIL TANK	407115373 OIL TANK	$5,893.81	1
014	N10124306	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10124306 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.60	4
015	420907660	OIL LEVEL SENSOR	420907660 OIL LEVEL SENSOR	$323.25	1
016	N138157	WASHER	N138157 WASHER	-	1	Enquire
017	36103193	OIL DRAIN PLUG IN STOCK	36103193 OIL DRAIN PLUG IN STOCK	$45.95	1
018	8Z0129669A	GROMMET IN STOCK	8Z0129669A GROMMET IN STOCK	$6.11	4
019	8Z0129734	BUSH IN STOCK	8Z0129734 BUSH IN STOCK	$8.56	4
020	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	$1.55	4
022	400115607	OIL DIPSTICK	400115607 OIL DIPSTICK	$22.73	1
023	420115339D	HEAT SHIELD	420115339D HEAT SHIELD	$22.92	1
024	N10680302	HEXAGON SOCKET FLAT HEAD BOLT	N10680302 HEXAGON SOCKET FLAT HEAD BOLT	$0.42 MSRP: ~~7.34~~ (94.3% off)	3
025	N91056601	WASHER IN STOCK	N91056601 WASHER IN STOCK	$0.21 MSRP: ~~7.37~~ (97.2% off)	3
026	400117015	OIL COOLER	400117015 OIL COOLER	$1,646.50	1
027	8Z0129669A	GROMMET IN STOCK	8Z0129669A GROMMET IN STOCK	$6.11	3
028	8Z0129734	BUSH IN STOCK	8Z0129734 BUSH IN STOCK	$8.56	3
029	7L117021M	OIL COOLER IN STOCK	7L117021M OIL COOLER IN STOCK	$498.41	1
030	N10124306	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10124306 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.60	8
031	N901486	SCREW M6X15	N901486 SCREW M6X15	-	4	Enquire
032	400317025A	LH CONVEYOR	400317025A LH CONVEYOR	$325.96	1
033	400117335A	COOLER EXIT CONE	400117335A COOLER EXIT CONE	$1,037.66	1
034	400117097C	BRACKET	400117097C BRACKET	$62.24	1
035	N90958101	O-RING IN STOCK	N90958101 O-RING IN STOCK	$27.00	4
036	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	$1.55	3
