Intake Manifold of Lamborghini Lamborghini Gallardo LP560 Spyder

View All

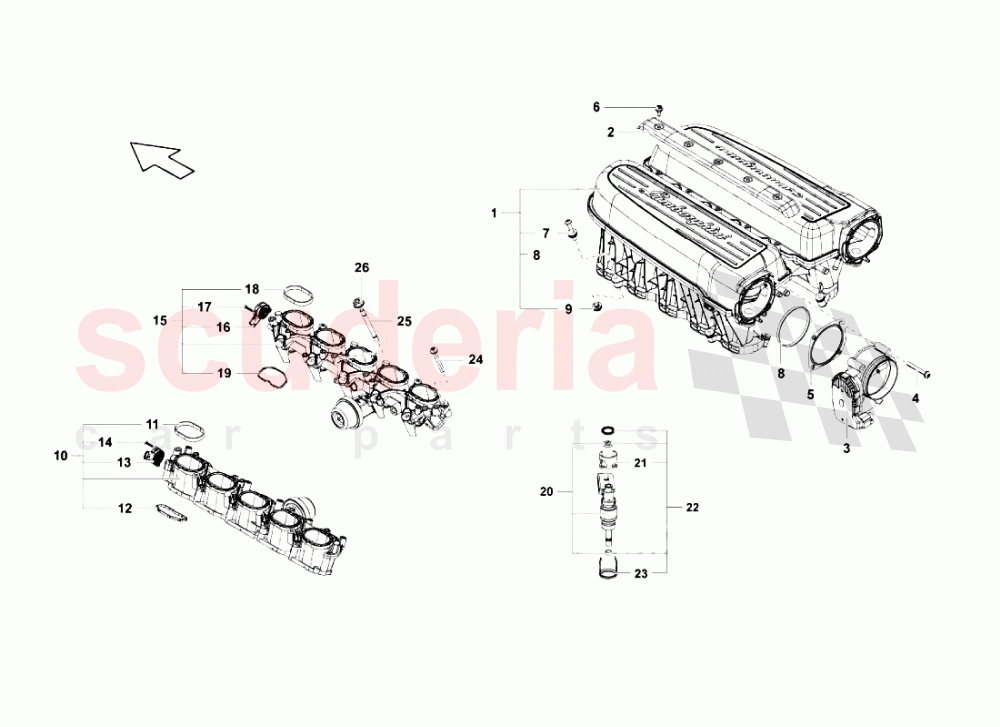

Lamborghini Gallardo LP560 Spyder - Intake Manifold

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7L133185H	FUEL MANIFOLD	7L133185H FUEL MANIFOLD	$1,431.45	1
002	7L133920B	COVER FOR INTAKE MANIFOLD	7L133920B COVER FOR INTAKE MANIFOLD	$387.11	1
003	7L133062K	THROTTLE VALVE ADAPTER	7L133062K THROTTLE VALVE ADAPTER use : 07L133062G	$844.11	2
004	N10405702	HEXAGON SOCKET HEAD BOLT	N10405702 HEXAGON SOCKET HEAD BOLT	$0.92	8
005	7L133920D	SEAL	7L133920D SEAL	$11.22	2
006	WHT003265	FLAT HEAD MULTI-POINT SOCKET BOLT	WHT003265 FLAT HEAD MULTI-POINT SOCKET BOLT	$7.40	5
007	7L133588	HEXAGON SOCKET FILLISTER HEAD SCREW WITH SPACER SLEEVE	7L133588 HEXAGON SOCKET FILLISTER HEAD SCREW WITH SPACER SLEEVE	$33.06	12
008	7L133073F	THROTTLE BODY SEAL	7L133073F THROTTLE BODY SEAL	$27.78	2
009	7L133588A	THREADED BUSH	7L133588A THREADED BUSH	$17.13	12
010	7L133109AB	MANIFOLD (FROM ENGINE CEH002327 - UP TO ENGINE CEH002550)	7L133109AB MANIFOLD (FROM ENGINE CEH002327 - UP TO ENGINE CEH002550)	$763.45	1
010	7L133109AP	FLANGE	7L133109AP FLANGE	$771.53	1
011	7L129717E	GASKET	7L129717E GASKET	$28.90	5
012	7L198717A	5 GASKET PER KIT	7L198717A 5 GASKET PER KIT	$45.26	1
013	7L907386	POTENTIOMETER	7L907386 POTENTIOMETER	$85.09	1
014	N10535603	SELF-TAPPING SCREW	N10535603 SELF-TAPPING SCREW	$0.62 MSRP: ~~7.29~~ (91.5% off)	2
015	7L133110AP	FLANGE	7L133110AP FLANGE	$771.53	1
015	7L133110AB	MANIFOLD (FROM ENGINE CEH002327 - UP TO ENGINE CEH002550)	7L133110AB MANIFOLD (FROM ENGINE CEH002327 - UP TO ENGINE CEH002550)	$763.45	1
016	7L907386	POTENTIOMETER	7L907386 POTENTIOMETER	$85.09	1
017	N10535603	SELF-TAPPING SCREW	N10535603 SELF-TAPPING SCREW	$0.62 MSRP: ~~7.29~~ (91.5% off)	2
018	7L129717E	GASKET	7L129717E GASKET	$28.90	5
019	7L198717A	5 GASKET PER KIT	7L198717A 5 GASKET PER KIT	$45.26	1
020	79906036D	INJECTOR (UP TO ENGINE CEH002550 - ALSO USE KIT 06E998907 REF. 32)	79906036D INJECTOR (UP TO ENGINE CEH002550 - ALSO USE KIT 06E998907 REF. 32)	$241.27	10
021	79133036	SPACER	79133036 SPACER	-	10	Enquire
022	6E998907B	REPAIR KIT FOR INJECTOR (FROM ENGINE CEH002551)	6E998907B REPAIR KIT FOR INJECTOR (FROM ENGINE CEH002551)	$50.95	10
022	6E998907	REPAIR KIT FOR INJECTOR (UP TO ENGINE CEH002550)	6E998907 REPAIR KIT FOR INJECTOR (UP TO ENGINE CEH002550)	$34.02	10
023	6E906189	SPACER	6E906189 SPACER	-	10	Enquire
024	N10470703	ROUND HD. SCREW	N10470703 ROUND HD. SCREW	$2.08 MSRP: ~~7.13~~ (70.8% off)	12
025	N91063801	STUD BOLT M6X62	N91063801 STUD BOLT M6X62	$2.78	10
026	N1508213	NUT M6	N1508213 NUT M6	-	10	Enquire
