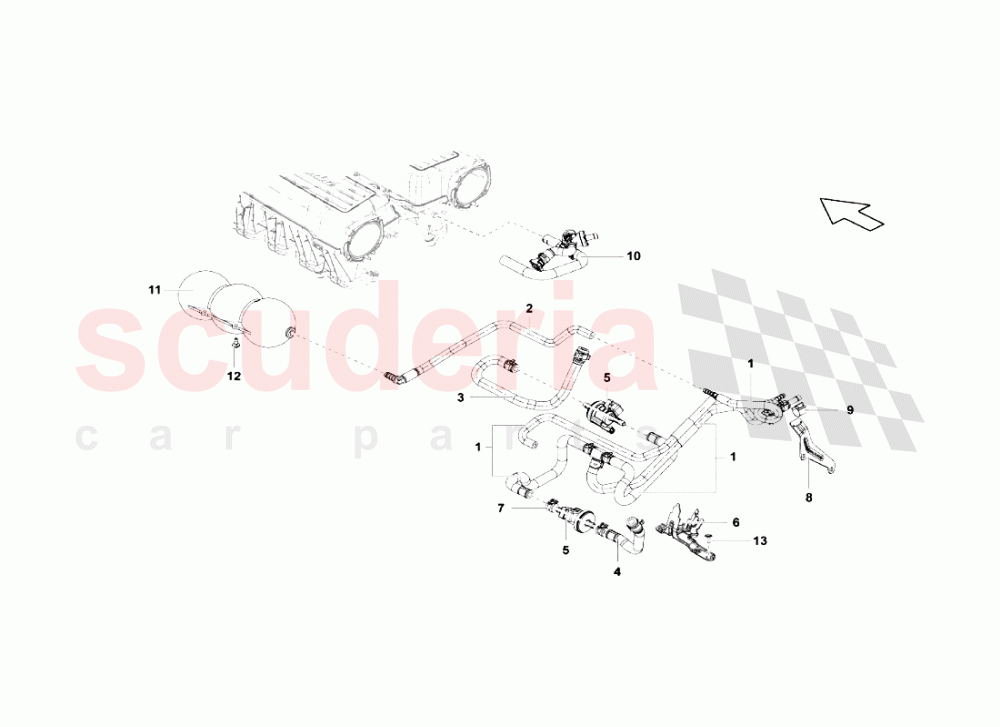

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7L133240H	PIPE ASSEMBLY	7L133240H PIPE ASSEMBLY	$194.90	1
002	7L133240F	PIPE ASSEMBLY	7L133240F PIPE ASSEMBLY	$21.31	1
003	7L133394Q	PIPE ASSEMBLY	7L133394Q PIPE ASSEMBLY	$39.45	1
004	7L133394AC	PIPE ASSEMBLY	7L133394AC PIPE ASSEMBLY	$39.45	1
005	6H906517B	VALVE AKF	6H906517B VALVE AKF	$60.48	1
006	7L131157E	BRACKET	7L131157E BRACKET	$21.31	1
007	N90686701	SPRING BAND CLAMP	N90686701 SPRING BAND CLAMP	$1.89 MSRP: ~~7.11~~ (73.4% off)	4
008	7L103320H	BRACKET	7L103320H BRACKET	$15.20	1
009	7L133847	HOSE BRACKET	7L133847 HOSE BRACKET	$1.47 MSRP: ~~3.95~~ (62.8% off)	1
010	420133750	SUCTION JET PUMP WITH HOSE	420133750 SUCTION JET PUMP WITH HOSE	$158.60	1
011	420131541	VACUUM RESERVOIR	420131541 VACUUM RESERVOIR	$60.01	1
012	N90925202	HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	N90925202 HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	$0.58 MSRP: ~~7.31~~ (92.1% off)	2
013	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	N10405604 OVAL HEXAGON SOCKET HEAD BOLT	$1.25	3
