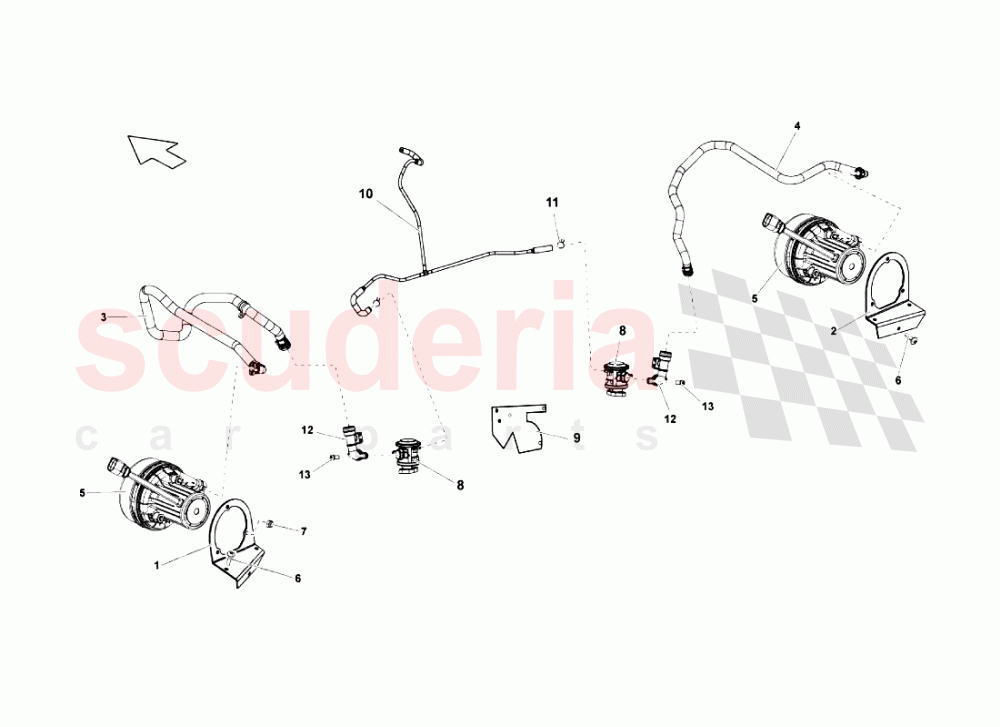

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400906618	LH BRACKET	400906618 LH BRACKET	$33.01	1
002	400906617	RH BRACKET	400906617 RH BRACKET	$33.01	1
003	407133897	LH PIPE	407133897 LH PIPE	$747.31	1
004	407133898	RH PIPE	407133898 RH PIPE	$747.31	1
005	400906601	PUMP	400906601 PUMP	$469.08	2
006	N10124304	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124304 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.55	6
007	N90488004	HEX. NUT WITH WASHER IN STOCK	N90488004 HEX. NUT WITH WASHER IN STOCK	$0.42 MSRP: ~~7.34~~ (94.3% off)	6
008	7L131101N	COMBINATION VALVE IN STOCK	7L131101N COMBINATION VALVE IN STOCK	$159.66	2
009	7L133106A	HEAT INSULATION	7L133106A HEAT INSULATION	$27.83	2
010	7L131055H	PRESSURE CONTROLLINE	7L131055H PRESSURE CONTROLLINE	$42.15	1
011	N10210501	CLAMP	N10210501 CLAMP	$1.55 MSRP: ~~7.15~~ (78.3% off)	2
012	7L131119	ADAPTER IN STOCK	7L131119 ADAPTER IN STOCK	$16.88	2
013	N10451408	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10451408 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.47	4
