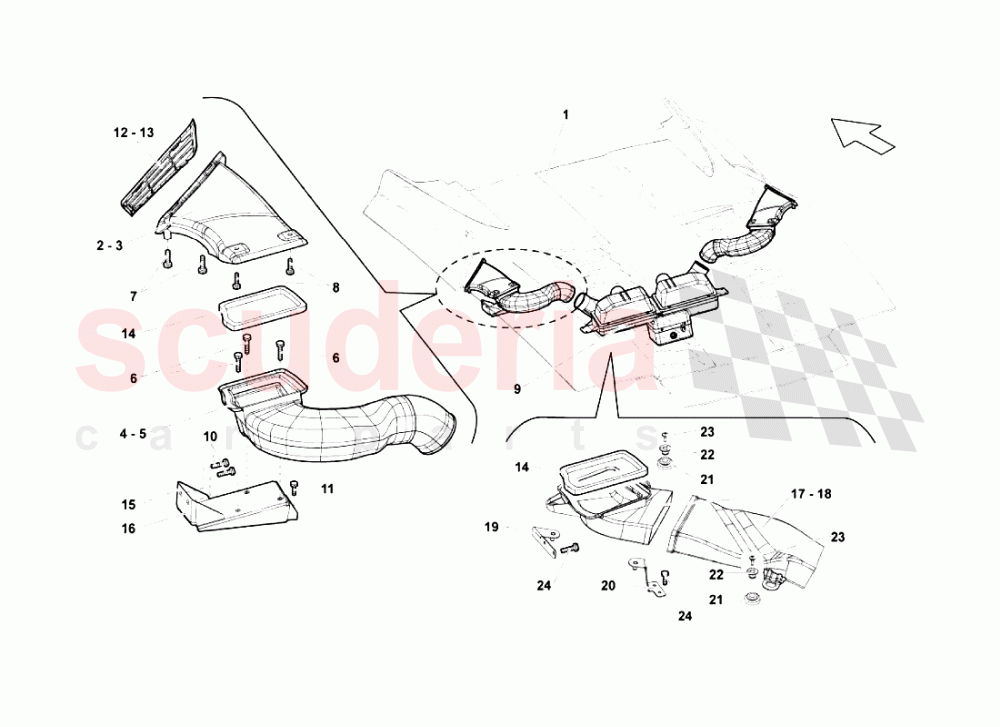

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
002	407827961C	LH CONVEYOR	407827961C LH CONVEYOR	-	1	Enquire
003	407827962C	RH CONVEYOR	407827962C RH CONVEYOR	-	1	Enquire
007	N10621601	HEX SOCKET OVAL HEAD COLLARED	N10621601 HEX SOCKET OVAL HEAD COLLARED	-	4	Enquire
008	1Z0860505C	SCREW	1Z0860505C SCREW	-	4	Enquire
012	407827967	LEFT GRID	407827967 LEFT GRID	-	1	Enquire
012	407827967A	LEFT GRID (STYLE PACK)	407827967A LEFT GRID (STYLE PACK)	-	1	Enquire
013	407827968	RIGHT GRID	407827968 RIGHT GRID	-	1	Enquire
013	407827968A	RIGHT GRID (STYLE PACK)	407827968A RIGHT GRID (STYLE PACK)	-	1	Enquire
014	407827709A	RH GASKET	407827709A RH GASKET	-	1	Enquire
014	407827705A	LH GASKET	407827705A LH GASKET	-	1	Enquire
017	407129519	LH CONVEYOR	407129519 LH CONVEYOR	-	1	Enquire
018	407129520	RH CONVEYOR	407129520 RH CONVEYOR	-	1	Enquire
019	407133193	LH BRACKET	407133193 LH BRACKET	-	1	Enquire
019	407133194	RH BRACKET	407133194 RH BRACKET	-	1	Enquire
020	407133688	RH BRACKET	407133688 RH BRACKET	-	1	Enquire
020	407133689	LH BRACKET	407133689 LH BRACKET	-	1	Enquire
021	867129669	GROMMET	867129669 GROMMET	-	6	Enquire
022	6N0129734	BUSHING	6N0129734 BUSHING	-	6	Enquire
023	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	-	6	Enquire
024	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	-	8	Enquire
