Windshield Wiper

Lamborghini Gallardo LP560 Spyder

Find Your Part

Lamborghini Gallardo LP560 Spyder - Windshield Wiper

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

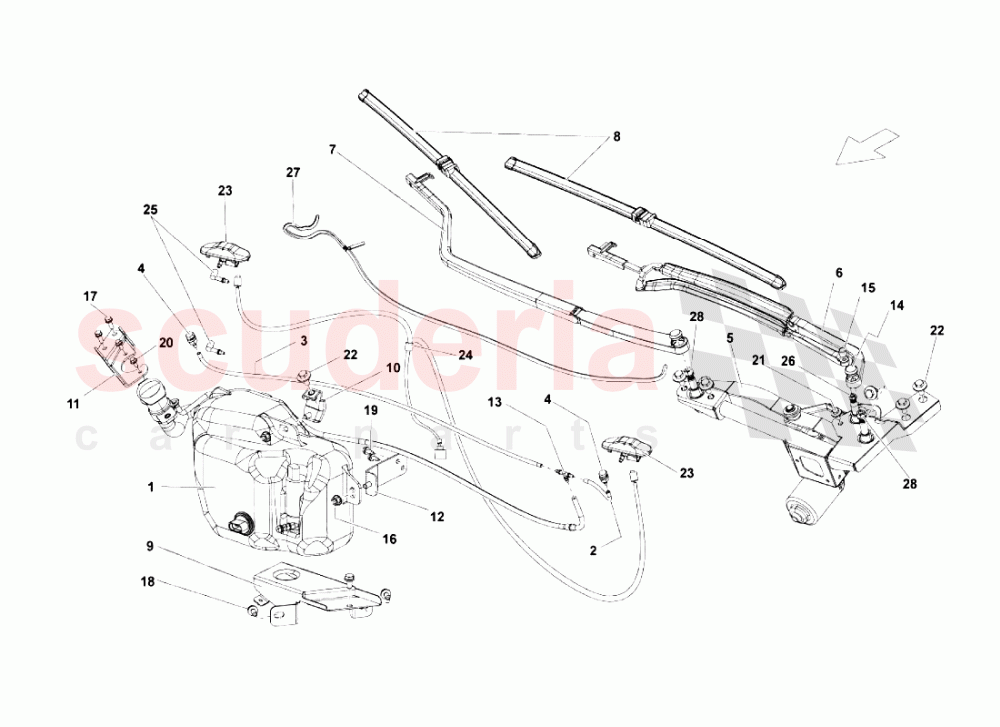

Windshield Wiper of Lamborghini Lamborghini Gallardo LP560 Spyder Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 400955448A
WASHER RESERVOIR ASSEMBLY 		- 1 Enquire
005 402955023A
LINKAGE GEARMOTOR 		- 1 Enquire
006 402955407B
RH WIPER ARM
suitable for right hand drive 		- 1 Enquire
007 402955408B
LH WIPER ARM
RHD 		- 1 Enquire
008 402955425C
Windscreen Wiper
RHD 		- 2 Enquire
009 402955457C
BRACKET 		- 1 Enquire
010 402955475B
BRACKET 		- 1 Enquire
011 402955775A
SUPPORT 		- 1 Enquire
012 402955931B
BRACKET 		- 1 Enquire
014 1J0955205A
PLUG 		- 2 Enquire
015 400955440
CAP 		- 1 Enquire
016 N2300313
NUT M8 		- 2 Enquire
017 N902424
SCREW M6X18 		- 2 Enquire
018 N10049308
HEXAGON HEAD BOLT (COMBI) 		- 3 Enquire
019 N10082911
SCREW M6X16 		- 2 Enquire
020 N10338302
SCREW M5X12 		- 2 Enquire
021 N90847903
Screw M6X15 		- 1 Enquire
022 WHT002225A
HEXAGON SOCKET HEAD BOLT 		- 3 Enquire
022 N91079301
SCREW M8X16 		- 3 Enquire
022 N90847903
Screw M6X15 		- 1 Enquire
023 5M0955985C
Spray Jet Front (Unheated) 		- 2 Enquire
023 5G09559869B9
SPRAY NOZZLE, HEATED 		- 2 Enquire
024 400971163B
WIRING HARNESS 		- 1 Enquire
025 1J0955665
CONNECTOR 		- 2 Enquire
026 N2214813
NUT M6 		- 1 Enquire
027 400955972
PIPE 		- 1 Enquire
028 N90226404
HEXAGON COLLAR NUT SELF-LOCKING 		- 2 Enquire
