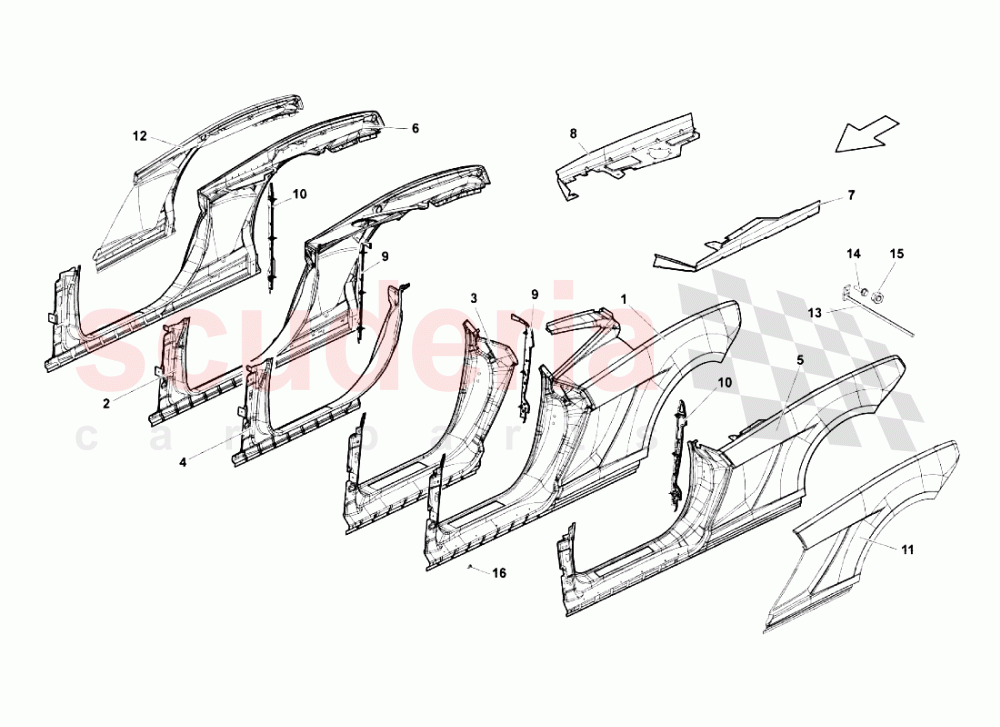

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
003	407810577	DOOR FRAME	407810577 DOOR FRAME	$1,397.86	1
004	407810578	DOOR FRAME	407810578 DOOR FRAME	$1,397.86	1
005	407809009A	LEFT SIDE COVER ASSEMBLY	407809009A LEFT SIDE COVER ASSEMBLY	$18,891.08	1
006	407809010A	RIGHT SIDE COVER ASSEMBLY	407809010A RIGHT SIDE COVER ASSEMBLY	$18,891.08	1
010	407809697	SUPPORT	407809697 SUPPORT	$1,219.11	2
011	407809603A	REAR FENDER, LH	407809603A REAR FENDER, LH	$13,938.15	1
012	407809604A	REAR FENDER, RH	407809604A REAR FENDER, RH	$13,938.15	1
013	400807707C	FENDER ADJUSTMENT BRACKET, INNER	400807707C FENDER ADJUSTMENT BRACKET, INNER	$96.11	2
