Rear Hood

Lamborghini Gallardo LP560 Spyder

Find Your Part

Lamborghini Gallardo LP560 Spyder - Rear Hood

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

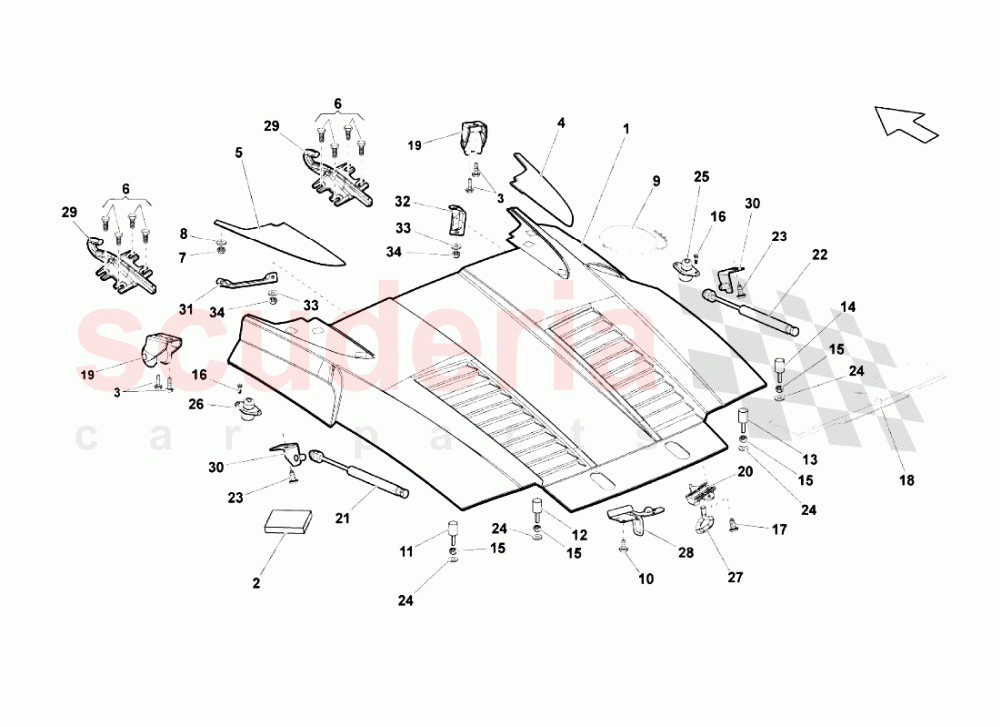

Rear Hood of Lamborghini Lamborghini Gallardo LP560 Spyder Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 407827023B
ENGINE HOOD 		- 1 Enquire
002 407827781A
RUBBER BUFFER 		- 2 Enquire
003 N195195
HEXALOBULAR SOCKET FLANGE BOLT M8X16 		- 4 Enquire
004 407827340B
COVER, RH 		- 1 Enquire
005 407827339B
COVER, LH 		- 1 Enquire
006 N90833202
HEXAGON BOLT 		- 8 Enquire
007 WHT002959
CLAMPING NUT 		- 2 Enquire
008 N1152221
WASHER 		- 2 Enquire
010 N90532901
SCREW M6X16 		- 3 Enquire
011 400807333
SUPPORT 		- 1 Enquire
012 400807333
SUPPORT 		- 1 Enquire
013 400807333
SUPPORT 		- 1 Enquire
014 400807333
SUPPORT 		- 1 Enquire
015 N1111611
NUT M6 		- 4 Enquire
016 N10353802
SCREW M8X13 		- 4 Enquire
017 N90847903
Screw M6X15 		- 1 Enquire
019 407827501C
LOCK 		- 2 Enquire
020 4E0823203B
CLOSURE PLATE 		- 1 Enquire
021 407827550B
LH Engine Cover Strut (Spring With Mechanical Stop) 		- 1 Enquire
022 408727550B
RH ENGINE COVER STRUT 		- 1 Enquire
023 N10578904
FLAT ROUND HEAD BOLT 		- 4 Enquire
024 N1166623
WASHER 		- 4 Enquire
025 8L0827249
Adjusting Sleeve 		- 1 Enquire
026 8L0827249
Adjusting Sleeve 		- 1 Enquire
027 4E0823197A
HOOK 		- 1 Enquire
028 400827518B
STRIKER 		- 1 Enquire
