Rear Arms of Lamborghini Lamborghini Gallardo LP560 Spyder

View All

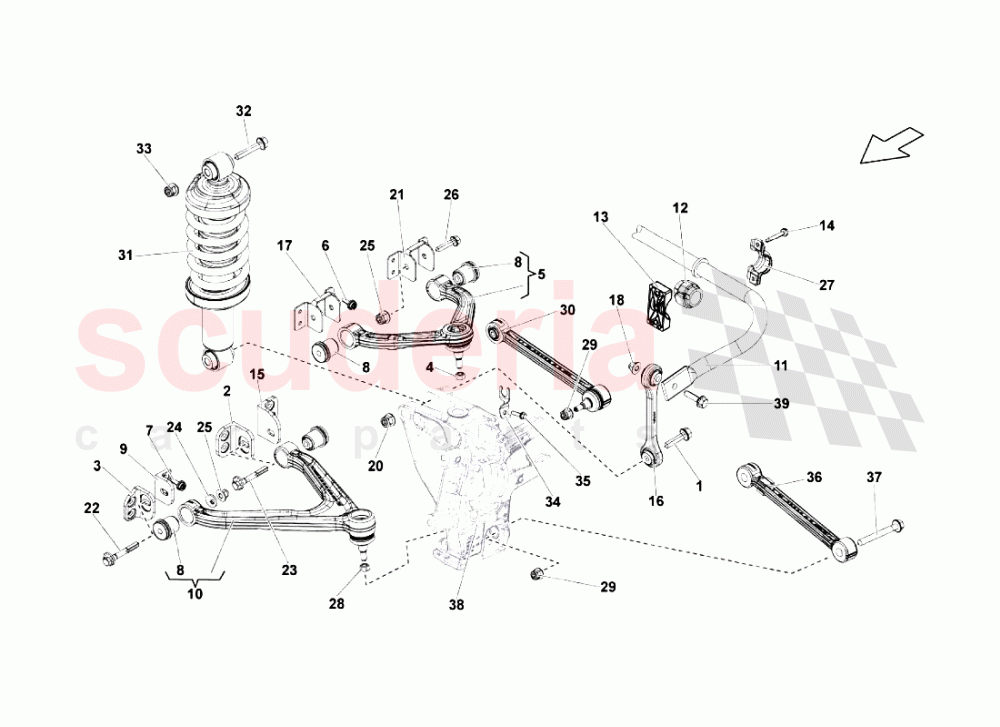

Lamborghini Gallardo LP560 Spyder - Rear Arms

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N10716901	HEX COLLARED BOLT IN STOCK	N10716901 HEX COLLARED BOLT IN STOCK	-	2	Enquire
002	400501430	RIGHT SUPPORT	400501430 RIGHT SUPPORT	-	1	Enquire
002	400501429	LEFT SUPPORT	400501429 LEFT SUPPORT	-	1	Enquire
003	420501430E	RIGHT SUPPORT	420501430E RIGHT SUPPORT	-	1	Enquire
003	420501429E	LEFT SUPPORT	420501429E LEFT SUPPORT	-	1	Enquire
004	N90848404	NUT M12X1.5	N90848404 NUT M12X1.5	-	2	Enquire
005	420505323	LH UPPER ARM	420505323 LH UPPER ARM	-	1	Enquire
005	420505324	RH UPPER ARM	420505324 RH UPPER ARM	-	1	Enquire
006	N10689301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10689301 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	-	4	Enquire
007	N10689301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10689301 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	-	4	Enquire
008	8E0505185P	BEARING IN STOCK	8E0505185P BEARING IN STOCK	-	8	Enquire
009	420501429M	LEFT SUPPORT	420501429M LEFT SUPPORT	-	1	Enquire
009	420501430M	RIGHT SUPPORT	420501430M RIGHT SUPPORT	-	1	Enquire
010	420505311	LH LOWER ARM	420505311 LH LOWER ARM use : 0R1400558	-	1	Enquire
010	420505312D	RH LOWER ARM IN STOCK	420505312D RH LOWER ARM IN STOCK	-	1	Enquire
011	400511409H	REAR STABILIZER BAR	400511409H REAR STABILIZER BAR	-	1	Enquire
011	400511409F	REAR STABILIZER BAR (COMFORT - COMFORT/LIFTING SYSTEM)	400511409F REAR STABILIZER BAR (COMFORT - COMFORT/LIFTING SYSTEM)	-	1	Enquire
012	420411327	BUSHING (COMFORT - COMFORT/LIFTING SYSTEM)	420411327 BUSHING (COMFORT - COMFORT/LIFTING SYSTEM)	-	2	Enquire
012	4D0411327G	BUSHING	4D0411327G BUSHING	-	2	Enquire
013	420411031A	ANTI-ROLL BAR BEARING BRACKET IN STOCK	420411031A ANTI-ROLL BAR BEARING BRACKET IN STOCK	-	2	Enquire
014	N10682501	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10682501 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	-	4	Enquire
015	400501430A	RIGHT SUPPORT	400501430A RIGHT SUPPORT	-	1	Enquire
015	400501429A	LEFT SUPPORT	400501429A LEFT SUPPORT	-	1	Enquire
016	420505465	Connecting Rod IN STOCK	420505465 Connecting Rod IN STOCK	-	2	Enquire
017	420407458F	RIGHT SUPPORT	420407458F RIGHT SUPPORT	-	1	Enquire
017	420407457F	LEFT SUPPORT	420407457F LEFT SUPPORT	-	1	Enquire
018	N10272302	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	N10272302 HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	-	2	Enquire
020	N10106402	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	N10106402 HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	-	2	Enquire
021	420407458F	RIGHT SUPPORT	420407458F RIGHT SUPPORT	-	1	Enquire
021	420407457F	LEFT SUPPORT	420407457F LEFT SUPPORT	-	1	Enquire
022	WHT002262	ECCENTRIC BOLT	WHT002262 ECCENTRIC BOLT	-	2	Enquire
023	WHT003176	SCREW M12X1.5X125	WHT003176 SCREW M12X1.5X125	-	2	Enquire
024	WHT001676	ECCENTRIC WASHER IN STOCK	WHT001676 ECCENTRIC WASHER IN STOCK	-	4	Enquire
025	N10106402	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	N10106402 HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	-	4	Enquire
026	N10428002	HEX COLLARED BOLT	N10428002 HEX COLLARED BOLT	-	4	Enquire
027	4D0411336G	CLAMP	4D0411336G CLAMP	-	2	Enquire
028	N90848404	NUT M12X1.5	N90848404 NUT M12X1.5	-	2	Enquire
029	N90848404	NUT M12X1.5	N90848404 NUT M12X1.5	-	2	Enquire
030	420501530C	CONNECTING ROD (FROM VIN ALA09566)	420501530C CONNECTING ROD (FROM VIN ALA09566) use : 420501530H	-	2	Enquire
031	400512019AS	SHOCK ABSORBER (STANDARD/COMFORT/LIFTING SYSTEM - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	400512019AS SHOCK ABSORBER (STANDARD/COMFORT/LIFTING SYSTEM - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	-	1	Enquire
031	400512019AS	SHOCK ABSORBER (STANDARD/COMFORT/LIFTING SYSTEM - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	400512019AS SHOCK ABSORBER (STANDARD/COMFORT/LIFTING SYSTEM - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	-	2	Enquire
031	400512019AT	SHOCK ABSORBER (SPORT/LIFTING SYSTEM - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	400512019AT SHOCK ABSORBER (SPORT/LIFTING SYSTEM - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	-	2	Enquire
032	N10428002	HEX COLLARED BOLT	N10428002 HEX COLLARED BOLT	-	2	Enquire
033	N10106402	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	N10106402 HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	-	2	Enquire
034	4E0971845AR	BRACKET	4E0971845AR BRACKET	-	2	Enquire
035	N10082911	SCREW M6X16 IN STOCK	N10082911 SCREW M6X16 IN STOCK	-	2	Enquire
039	N104285302	SCREW M10X62X45	N104285302 SCREW M10X62X45	-	2	Enquire
