Rear Frame Attachments

Lamborghini Gallardo LP560 Spyder

Find Your Part

Lamborghini Gallardo LP560 Spyder - Rear Frame Attachments

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

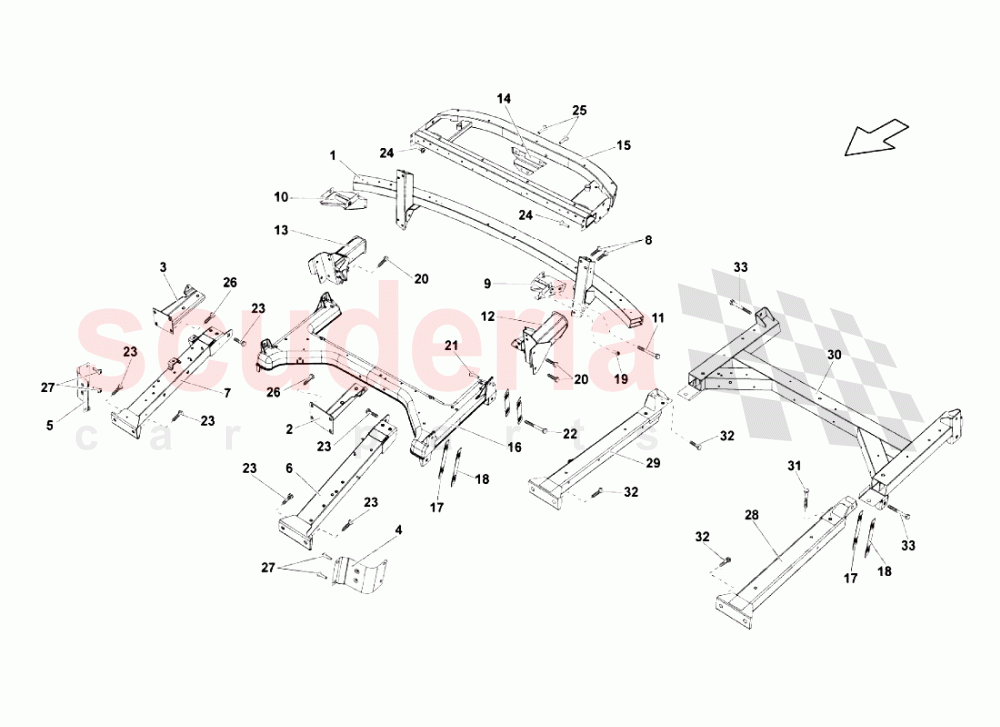

Rear Frame Attachments of Lamborghini Lamborghini Gallardo LP560 Spyder Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 400807307A
REAR BUMPER 		- 1 Enquire
004 400810427
SUPPORT 		- 1 Enquire
005 400810428
SUPPORT 		- 1 Enquire
008 N90365912
OVAL HEXAGON SOCKET HEAD BOLT 		- 8 Enquire
009 400813721
SUPPORT 		- 1 Enquire
010 400813722
SUPPORT 		- 1 Enquire
011 N103917
SCREW M8X100X41 		- 2 Enquire
012 400807553
STRUT,BUMPER 		- 1 Enquire
013 400807554
STRUT,BUMPER 		- 1 Enquire
015 407814291
CROSS MEMBER 		- 1 Enquire
017 420813176
INSERT 0,5 MM 		- 4 Enquire
018 420813176A
INSERT 1 MM 		- 4 Enquire
019 N90365912
OVAL HEXAGON SOCKET HEAD BOLT 		- 6 Enquire
020 N91104901
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) 		- 12 Enquire
024 N90365912
OVAL HEXAGON SOCKET HEAD BOLT 		- 2 Enquire
027 N90949302
SCREW M6X15.5 		- 8 Enquire
028 407813087A
BUMPER STRUCTURE 		- 1 Enquire
029 407813088A
BUMPER STRUCTURE 		- 1 Enquire
030 407813703A
CROSS MEMBER 		- 1 Enquire
031 N10318302
SCREW 		- 4 Enquire
032 N195307
SCREW M8X25 		- 8 Enquire
033 N10458902
SCREW M8X90 		- 4 Enquire
