Lamborghini Gallardo LP560 Spyder - Rear Tunnel

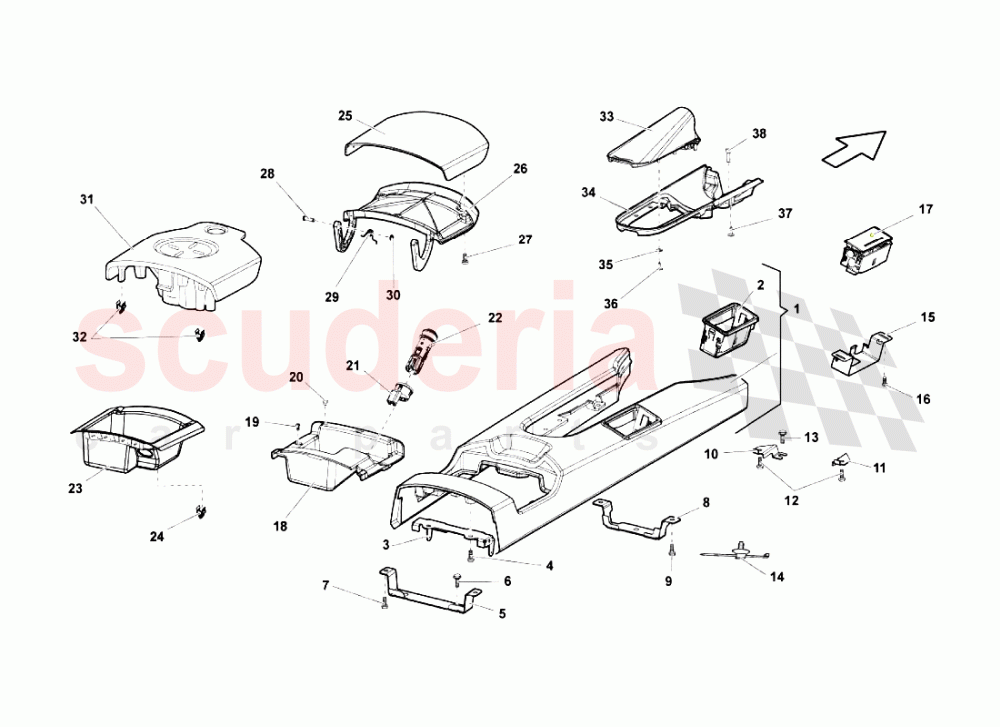

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400863242A	CENTER TUNNEL ASSEMBLY (NON SMOKING VERSION - LEATHER INTERIOR - SUPPLY VIN)	400863242A CENTER TUNNEL ASSEMBLY (NON SMOKING VERSION - LEATHER INTERIOR - SUPPLY VIN)	-	1	Enquire
001	400863242B	CENTER TUNNEL ASSEMBLY (NON SMOKING VERSION - CUP HOLDER - LEATHER INTERIOR - SUPPLY VIN)	400863242B CENTER TUNNEL ASSEMBLY (NON SMOKING VERSION - CUP HOLDER - LEATHER INTERIOR - SUPPLY VIN)	-	1	Enquire
001	402863242B	CENTER TUNNEL ASSEMBLY (WITHOUT CUP HOLDER - SMOKING VERSION - LEATHER INTERIOR - SUPPLY	402863242B CENTER TUNNEL ASSEMBLY (WITHOUT CUP HOLDER - SMOKING VERSION - LEATHER INTERIOR - SUPPLY	-	1	Enquire
001	402863242C	CENTER TUNNEL ASSEMBLY (CUP HOLDER - SMOKING VERSION - LEATHER INTERIOR - SUPPLY VIN)	402863242C CENTER TUNNEL ASSEMBLY (CUP HOLDER - SMOKING VERSION - LEATHER INTERIOR - SUPPLY VIN)	-	1	Enquire
002	402863849	ASHTRAY BEZEL	402863849 ASHTRAY BEZEL	-	1	Enquire
003	400863843	LID FIXING BRACKET	400863843 LID FIXING BRACKET	-	1	Enquire
004	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	-	2	Enquire
005	400863615	TUNNEL FIXING BRACKET, REAR	400863615 TUNNEL FIXING BRACKET, REAR	-	1	Enquire
006	N90847903	Screw M6X15	N90847903 Screw M6X15	-	2	Enquire
007	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	-	2	Enquire
008	400863345	TUNNEL FIXING BRACKET, CENTER	400863345 TUNNEL FIXING BRACKET, CENTER	-	1	Enquire
009	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	-	8	Enquire
010	400863583	TUNNEL FIXING BRACKET, FRONT LH	400863583 TUNNEL FIXING BRACKET, FRONT LH	-	1	Enquire
011	400863584	TUNNEL FIXING BRACKET, FRONT RH	400863584 TUNNEL FIXING BRACKET, FRONT RH	-	1	Enquire
012	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	-	8	Enquire
013	N902424	SCREW M6X18	N902424 SCREW M6X18	-	2	Enquire
014	N90688101	CLAMP	N90688101 CLAMP	-	3	Enquire

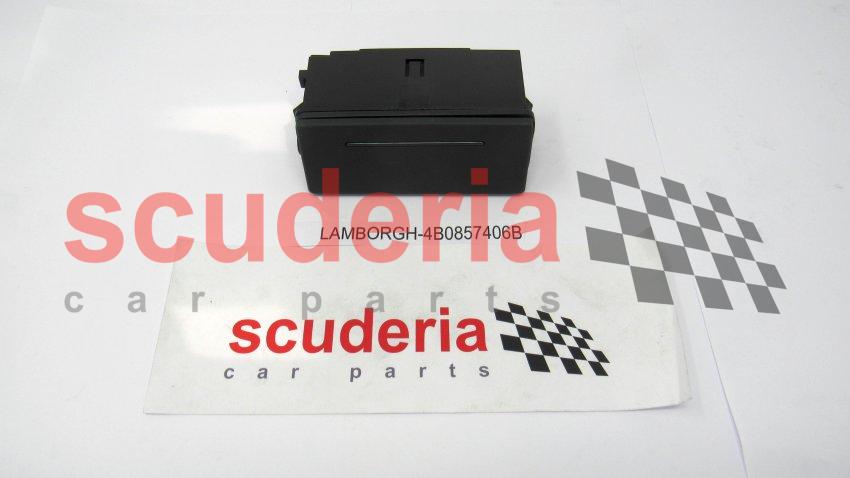

017	4B0857406B	ASHTRAY WITH LID	4B0857406B ASHTRAY WITH LID	-	1	Enquire
017	400857406B	ASHTRAY (DECORATIVE INSERTS - SUPPLY VIN)	400857406B ASHTRAY (DECORATIVE INSERTS - SUPPLY VIN)	-	1	Enquire
018	400863300A	GLOVE BOX (WITHOUT CUP HOLDER - SUPPLY VIN)	400863300A GLOVE BOX (WITHOUT CUP HOLDER - SUPPLY VIN)	-	1	Enquire
019	N90562401	SCREW	N90562401 SCREW	-	3	Enquire
020	N91092001	RUBBER STOP 4.50X2.2X8.60	N91092001 RUBBER STOP 4.50X2.2X8.60	-	2	Enquire
021	8D0919343	LIGHTER RING	8D0919343 LIGHTER RING	-	1	Enquire
022	7M3919311	OUTLET 12V (NON SMOKING VERSION)	7M3919311 OUTLET 12V (NON SMOKING VERSION)	-	1	Enquire
025	400863284	REAR CONSOLE GLOVE BOX ASSY (LEATHER INTERIOR - SUPPLY	400863284 REAR CONSOLE GLOVE BOX ASSY (LEATHER INTERIOR - SUPPLY	-	1	Enquire
025	400863284A	REAR CONSOLE GLOVE BOX ASSY (CARBON INTERIOR)	400863284A REAR CONSOLE GLOVE BOX ASSY (CARBON INTERIOR)	-	1	Enquire
026	400863371	TRIM COVERING, INNER	400863371 TRIM COVERING, INNER	-	1	Enquire
027	N90562401	SCREW	N90562401 SCREW	-	6	Enquire
028	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	-	2	Enquire
029	400863285	LEFT SPRING	400863285 LEFT SPRING	-	1	Enquire
029	400863286	RIGHT SPRING	400863286 RIGHT SPRING	-	1	Enquire
030	N211963	NUT M5	N211963 NUT M5	-	2	Enquire
031	400863284B	COVER TUNNEL HOLDER (CUP HOLDER - LEATHER INTERIOR -SUPPLY VIN)	400863284B COVER TUNNEL HOLDER (CUP HOLDER - LEATHER INTERIOR -SUPPLY VIN)	-	1	Enquire
032	400868563	CLIP	400868563 CLIP	-	2	Enquire
033	400711461	HAND BRAKE COVERING ASSY WITH MOLDING (SUPPLY VIN)	400711461 HAND BRAKE COVERING ASSY WITH MOLDING (SUPPLY VIN)	-	1	Enquire
034	400863343F	HAND BRAKE LOWER PORTION CLOSING (CARBON INTERIOR)	400863343F HAND BRAKE LOWER PORTION CLOSING (CARBON INTERIOR)	-	1	Enquire
034	400863343E	HAND BRAKE LOWER PORTION CLOSING (SMALL LEATHER PACKAGE - SUPPLY VIN)	400863343E HAND BRAKE LOWER PORTION CLOSING (SMALL LEATHER PACKAGE - SUPPLY VIN)	-	1	Enquire
034	400863343G	HAND BRAKE LOWER PORTION CLOSING (LEATHER INTERIOR -SUPPLY VIN)	400863343G HAND BRAKE LOWER PORTION CLOSING (LEATHER INTERIOR -SUPPLY VIN)	-	1	Enquire
035	N90485901	WASHER	N90485901 WASHER	-	10	Enquire
036	N90562401	SCREW	N90562401 SCREW	-	10	Enquire
037	N90632303	HEXAGON SOCKET HEAD PANEL BOLT	N90632303 HEXAGON SOCKET HEAD PANEL BOLT	-	2	Enquire
037	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT	-	2	Enquire
038	WHT003110	SCREW M4X10	WHT003110 SCREW M4X10	-	1	Enquire
