External Rear View Mirrors of Lamborghini Lamborghini Diablo SV (1998)

View All

Lamborghini Diablo SV (1998) - External Rear View Mirrors

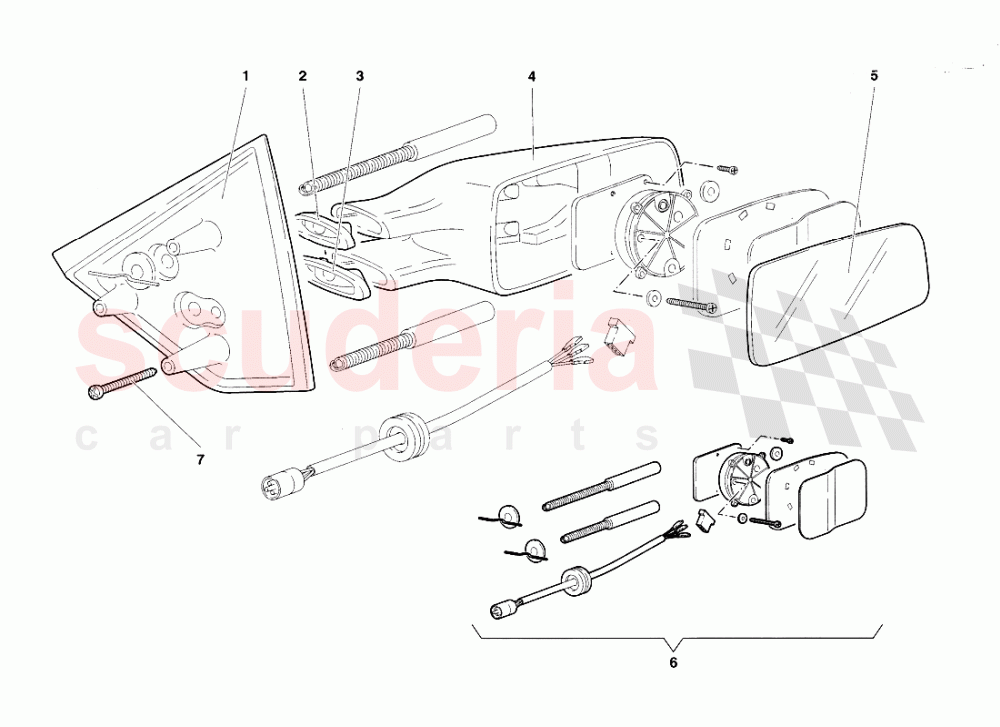

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9990400	R.EXTE. MIRROR BASE	9990400 R.EXTE. MIRROR BASE BASE SPECCHIO RETR. DX	-	1	Enquire
001	9990406	R. VIEW MIRROR BASE	9990406 R. VIEW MIRROR BASE (Valid for GB - November 1998) BASE RETROVISORE DX	-	1	Enquire
001	9990407	L. VIEW MIRROR BASE	9990407 L. VIEW MIRROR BASE (Valid for GB - November 1998) BASE RETROVISORE SX	-	1	Enquire
001	9990401	EXTE. MIRROR BASE	9990401 EXTE. MIRROR BASE BASE SPECCHIO RETR. SX	-	1	Enquire
002	9490428	LEFT UPPER GASKET	9490428 LEFT UPPER GASKET GUARNIZIONE SUPERIORE SX	-	1	Enquire
002	9490426	RIGHT UPPER GASKET	9490426 RIGHT UPPER GASKET GUARNIZIONE SUPERIORE DX	-	1	Enquire
003	9490429	L. LOWER GASKET	9490429 L. LOWER GASKET GUARNIZIONE INFERIORE SX	-	1	Enquire
003	9490427	R. LOWER GASKET	9490427 R. LOWER GASKET GUARNIZIONE INFERIORE DX	-	1	Enquire
004	9490474	LEFT MIRROR BODY	9490474 LEFT MIRROR BODY (Valid for GB - November 1998) CORPO SPECCHIO SX	-	1	Enquire
004	9490473	RIGHT MIRROR BODY	9490473 RIGHT MIRROR BODY (Valid for GB - November 1998) CORPO SPECCHIO DX	-	1	Enquire
004	9490471	RIGHT MIRROR BODY	9490471 RIGHT MIRROR BODY CORPO SPECCHIO DX	-	1	Enquire
004	9490472	LEFT MIRROR BODY	9490472 LEFT MIRROR BODY CORPO SPECCHIO SX	-	1	Enquire
005	9490413	LEFT MIRROR	9490413 LEFT MIRROR (Valid for GB - November 1998) SPECCHIO SX	-	1	Enquire
005	9490410	RIGHT MIRROR	9490410 RIGHT MIRROR (Valid for CANADA - November 1998) SPECCHIO SX	-	1	Enquire
005	9490411	LEFT MIRROR	9490411 LEFT MIRROR (Valid for CANADA - November 1998) SPECCHIO DX	-	1	Enquire
005	9490412	RIGHT MIRROR	9490412 RIGHT MIRROR (Valid for GB - November 1998) SPECCHIO DX	-	1	Enquire
005	9490410	RIGHT MIRROR	9490410 RIGHT MIRROR (Valid for USA - November 1998) SPECCHIO DX	-	1	Enquire
005	9490413	LEFT MIRROR	9490413 LEFT MIRROR SPECCHIO SX	-	1	Enquire
005	9490412	RIGHT MIRROR	9490412 RIGHT MIRROR SPECCHIO DX	-	1	Enquire
005	9490411	LEFT MIRROR	9490411 LEFT MIRROR (Valid for USA - November 1998) SPECCHIO SX	-	1	Enquire
006	600949006	RIGHT R.VIEW MIR. KIT	600949006 RIGHT R.VIEW MIR. KIT KIT SPECCH. RETR. DX	-	1	Enquire
006	600949005	L. VIEW MIRRORKIT	600949005 L. VIEW MIRRORKIT KIT SPECCH. RETR. SX	-	1	Enquire
007	8700329	SCREW	8700329 SCREW VITE	-	6	Enquire
