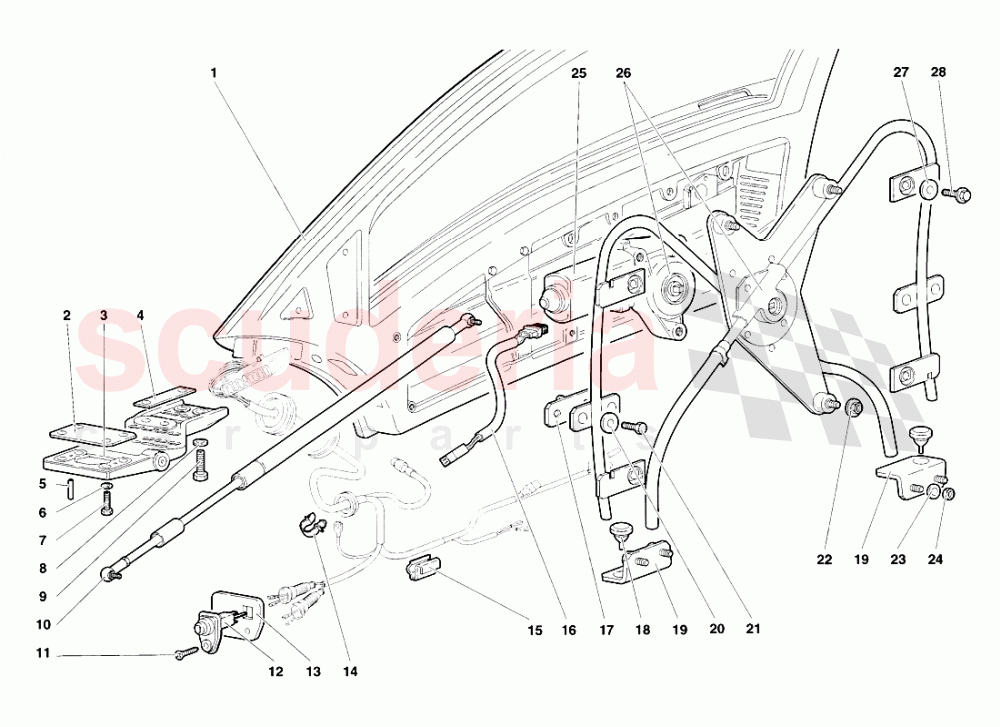

Lamborghini Diablo SV (1998) - Doors 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9421056	LEFT DOOR	9421056 LEFT DOOR PORTA SX	-	1	Enquire
001	9421055	RIGHT DOOR	9421055 RIGHT DOOR PORTA DX	-	1	Enquire
002	4132052	SHIM	4132052 SHIM SPESSORE 1 MM	-	1	Enquire
002	4132051	SHIM	4132051 SHIM SPESSORE 0,8 MM	-	1	Enquire
002	4132053	SHIM	4132053 SHIM SPESSORE 1,2 MM	-	1	Enquire
002	4132054	SHIM	4132054 SHIM SPESSORE 1,5 MM	-	1	Enquire
003	9421030	LH HINGE	9421030 LH HINGE CERNIERASX	-	1	Enquire
003	410831402	RH HINGE	410831402 RH HINGE CERNIERADX	-	1	Enquire
004	9421381	SHIM	9421381 SHIM SPESSORE 1,5 MM	-	1	Enquire
004	9421380	SHIM	9421380 SHIM SPESSORE 1 MM	-	1	Enquire
005	8900401	PIN	8900401 PIN SA ELASTICA	-	4	Enquire
006	8400801	WASHER	8400801 WASHER RONDELLA	-	8	Enquire
007	8100821	SCREW	8100821 SCREW VITE	-	8	Enquire
008	8411015	WASHER	8411015 WASHER RONDELLA	-	8	Enquire
009	8101008	SCREW	8101008 SCREW VITE	-	8	Enquire
010	9421031	DOOR STRUT	9421031 DOOR STRUT MARTI NETTO	-	2	Enquire
011	WHT003304	SCREW	WHT003304 SCREW VITE	-	2	Enquire
012	5934450	SWITCH	5934450 SWITCH INTERRUTTORE	-	2	Enquire
013	5934447	PLATE	5934447 PLATE PIASTRINA	-	2	Enquire
014	8830411	STRAP	8830411 STRAP MOLLETTA	-	2	Enquire
015	8830302	CLAMP	8830302 CLAMP FASCETTA	-	10	Enquire
016	9421606	ELECT CABLE	9421606 ELECT CABLE CABLAGGIO	-	2	Enquire
017	9421607	BRACKET	9421607 BRACKET STAFFA	-	4	Enquire
018	9421408	RUBBER BUMPER	9421408 RUBBER BUMPER PARACOLPI GOMMA	-	4	Enquire
019	9421406	RIGHT DOOR PLATE	9421406 RIGHT DOOR PLATE PIASTRINA PORTA DX	-	2	Enquire
019	9421407	LEFT DOOR PLATE	9421407 LEFT DOOR PLATE PIASTRINA PORTA SX	-	2	Enquire
020	8400501	WASHER	8400501 WASHER RONDELLA	-	8	Enquire
021	N01020717	SCREW M5X12	N01020717 SCREW M5X12 VITE	-	8	Enquire
022	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT DADO	-	6	Enquire
023	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	-	8	Enquire
024	N0211963	NUT	N0211963 NUT DADO	-	8	Enquire
025	9421604	RIGHT ELECT MOTOR	9421604 RIGHT ELECT MOTOR MOTORINO DX	-	1	Enquire
025	9421605	LEFT ELECT MOTOR	9421605 LEFT ELECT MOTOR MOTORING SX	-	1	Enquire
026	9421600	RIGHT KIT WIND. REGUL	9421600 RIGHT KIT WIND. REGUL KIT ALZACRISTALLO DX	-	1	Enquire
026	9421601	LEFT KIT WINDOW REGUL.	9421601 LEFT KIT WINDOW REGUL. KIT ALZACRISTALLO SX	-	1	Enquire
027	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	8	Enquire
028	N90319404	SCREW	N90319404 SCREW VITE	-	8	Enquire
