Bumpers of Lamborghini Lamborghini Diablo SV (1998)

View All

Lamborghini Diablo SV (1998) - Bumpers

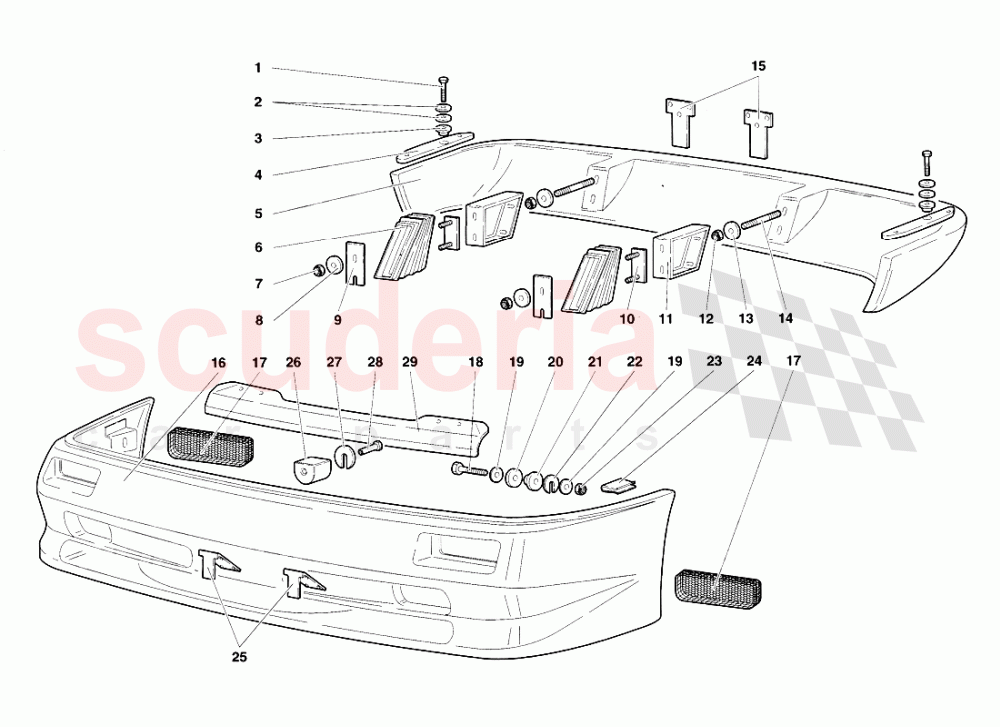

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8100831	SCREW	8100831 SCREW VITE	-	2	Enquire
002	WHT001942	WASHER	WHT001942 WASHER RONDELLA	-	4	Enquire
003	9463240	WASHER	9463240 WASHER RONDELLA	-	2	Enquire
004	9463207	SPACER	9463207 SPACER DISTANZIALE	-	2	Enquire
005	600946307	REAR BUMPER BAR	600946307 REAR BUMPER BAR PARAURTI POST.	-	1	Enquire
006	9463204	SHIELD	9463204 SHIELD PROTEZIONE	-	2	Enquire
007	8200804	NUT M8	8200804 NUT M8 DADO	-	4	Enquire
008	WHT001942	WASHER	WHT001942 WASHER RONDELLA	-	4	Enquire
009	9463229	PLATE	9463229 PLATE PIASTRA	-	2	Enquire
010	9463209	PLATE	9463209 PLATE PIASTRA	-	2	Enquire
011	9463208	SUPPORT - SUPPORTO	9463208 SUPPORT - SUPPORTO O	-	2	Enquire
012	8200804	NUT M8	8200804 NUT M8 DADO	-	4	Enquire
013	8400801	WASHER	8400801 WASHER RONDELLA	-	4	Enquire
014	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	-	4	Enquire
015	9466112	BRACKET	9466112 BRACKET STAFFA	-	2	Enquire
016	9463012	FRONT BUMPER BAR	9463012 FRONT BUMPER BAR PARAURTI ANT.	-	1	Enquire
017	9430142	NET	9430142 NET RETE	-	2	Enquire
018	8100810	SCREW	8100810 SCREW VITE	-	2	Enquire
019	WHT001942	WASHER	WHT001942 WASHER RONDELLA	-	4	Enquire
020	7063142	WASHER	7063142 WASHER RONDELLA	-	2	Enquire
021	9463240	WASHER	9463240 WASHER RONDELLA	-	2	Enquire
022	9463111	SPACER	9463111 SPACER DISTANZIALE	-	1	Enquire
022	9463110	SPACER	9463110 SPACER DISTANZIALE	-	1	Enquire
023	8200804	NUT M8	8200804 NUT M8 DADO	-	2	Enquire
024	8220506	CLIP	8220506 CLIP MOLLETTA	-	14	Enquire
025	9466111	BRACKET	9466111 BRACKET STAFFA	-	2	Enquire
026	9963122	RUBBER PAD	9963122 RUBBER PAD TAMPONE GOMMA	-	2	Enquire
027	7063145	SHIM	7063145 SHIM use : 410807567	-	1	Enquire
028	9463117	SCREW	9463117 SCREW VITE	-	2	Enquire
029	9463126	SHIELD	9463126 SHIELD PROTEZIONE	-	1	Enquire
