Rear Body Elements of Lamborghini Lamborghini Diablo SV (1998)

View All

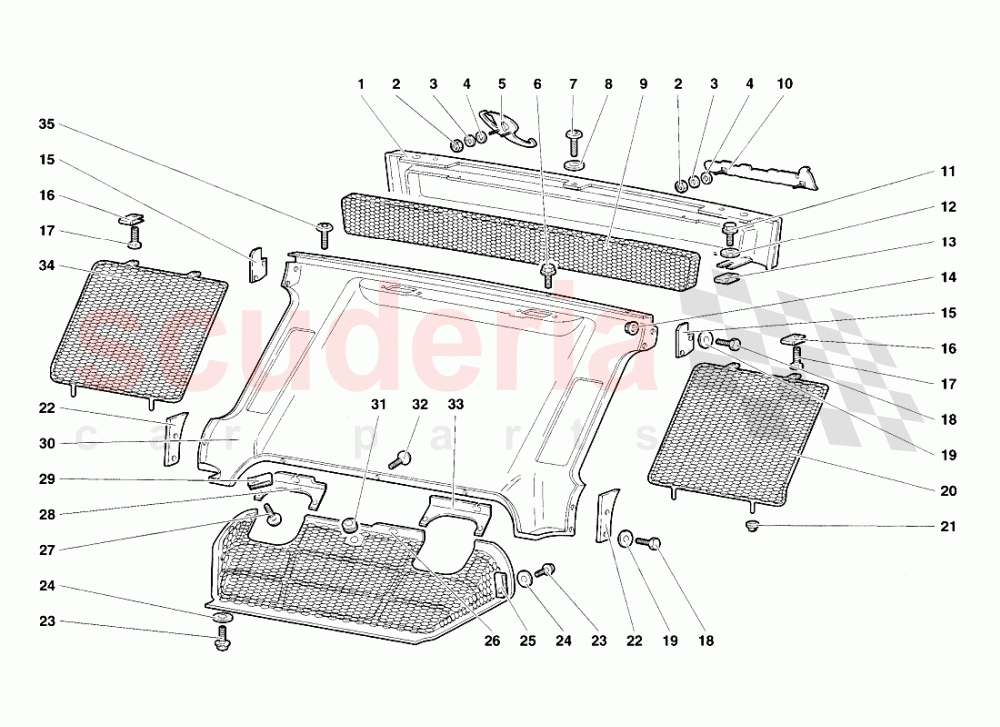

Lamborghini Diablo SV (1998) - Rear Body Elements

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9410218	FRAME	9410218 FRAME CORNICE	$10,086.85	1
002	8200302	NUT IN STOCK	8200302 NUT DADO IN STOCK	$0.16	4
003	8410307	WASHER	8410307 WASHER RONDELLA	$1.63	4
004	8400303	WASHER IN STOCK	8400303 WASHER RONDELLA IN STOCK	$0.04	4
006	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	$0.95	2
007	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$21.42	3
008	8400629	WASHER	8400629 WASHER RONDELLA	$1.44 MSRP: ~~7.11~~ (79.7% off)	3
009	9430171	NET	9430171 NET RETE	$684.67	1
011	8700449	SCREW IN STOCK	8700449 SCREW VITE IN STOCK	$2.99 MSRP: ~~7.37~~ (59.4% off)	2
012	N91115501	WASHER	N91115501 WASHER RONDELLA	$1.25 MSRP: ~~7.33~~ (82.9% off)	2
013	N90834301	CLIP NUT IN STOCK	N90834301 CLIP NUT IN STOCK	$1.16	2
014	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.21	4
015	9410205	SPACER	9410205 SPACER DISTANZIALE	$12.45	2
016	WHT000916A	CLIP	WHT000916A CLIP MOLLETTA	$15.41	4
017	8700437	SCREW	8700437 SCREW VITE	-	4	Enquire
018	8100621	SCREW IN STOCK	8100621 SCREW VITE IN STOCK	$0.12 MSRP: ~~7.37~~ (98.4% off)	8
019	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	8
020	9430168	GRILLE	9430168 GRILLE RETE SX	$951.01	1
021	66002463	BUSHING	66002463 BUSHING BOCCOLA	$3.43 MSRP: ~~3.50~~ (2% off)	4
022	9410206	SPACER	9410206 SPACER DISTANZIALE	$50.08	2
023	8700449	SCREW IN STOCK	8700449 SCREW VITE IN STOCK	$2.99 MSRP: ~~7.37~~ (59.4% off)	4
024	N91115501	WASHER	N91115501 WASHER RONDELLA	$1.25 MSRP: ~~7.33~~ (82.9% off)	4
025	N90834301	CLIP NUT IN STOCK	N90834301 CLIP NUT IN STOCK	$1.16	2
026	9430174	GRILLE	9430174 GRILLE GRIGLIA	$524.82	1
027	N91049601	OVAL HEAD PANEL SCREW (COMBI) IN STOCK	N91049601 OVAL HEAD PANEL SCREW (COMBI) VITE IN STOCK	$0.67 MSRP: ~~7.31~~ (90.8% off)	4
028	9430144	RIGHT PLATE	9430144 RIGHT PLATE LAMIERINO DX	$42.51	1
029	8220402	CLIP	8220402 CLIP MOLLETTA	$4.41 MSRP: ~~7.12~~ (38.1% off)	4
030	9410200	REAR PANEL	9410200 REAR PANEL ELEMENTO SCOCCA POST.	$1,929.29 MSRP: ~~1,950.00~~ (1.1% off)	1
031	8611202	RUBBER RING	8611202 RUBBER RING ANELLO GOMMA	-	1	Enquire
032	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$21.42	3
033	9430146	LEFT PLATE	9430146 LEFT PLATE LAMIERINO SX	$42.51	1
034	9430167	NET	9430167 NET RETE DX	$951.01	1
035	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$21.42	2
