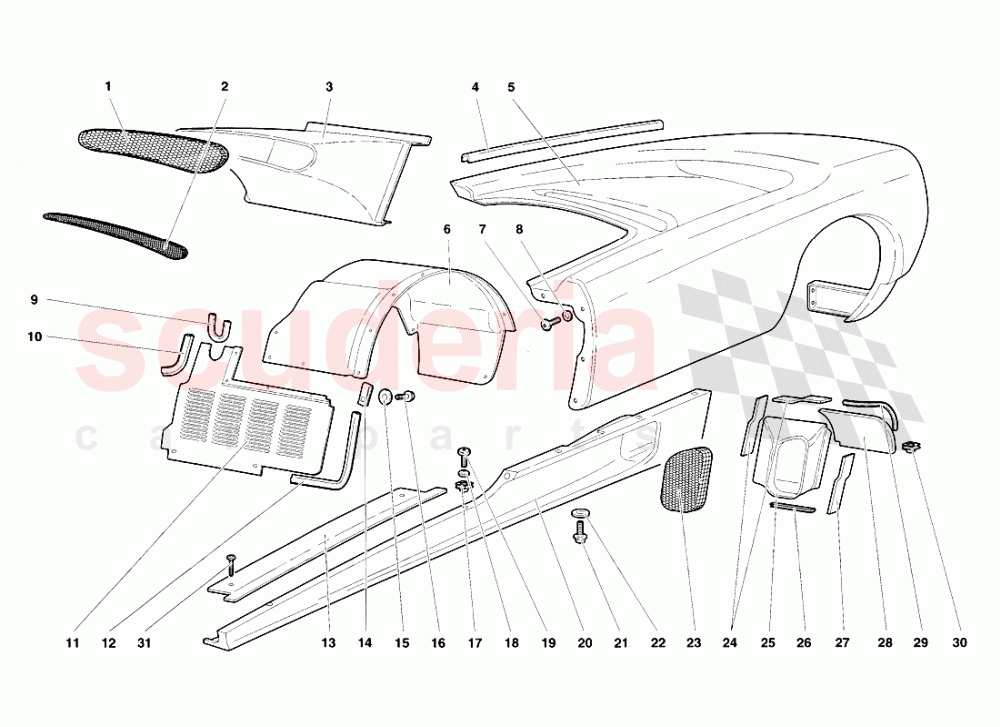

Lamborghini Diablo SV (1998) - Body Elements - Left Flank

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9430125	NET	9430125 NET (L.H.S.) RETE	-	1	Enquire
002	9430127	NET	9430127 NET (L.H.S.) RETE	-	1	Enquire
003	9453147	CONVEYOR	9453147 CONVEYOR (L.H.S.) CONVOGLIATORE	-	1	Enquire
004	9490113	GASKET	9490113 GASKET (L.H.S.) GUARNIZIONE	-	1	Enquire
005	9410003	REAR MUDGUARD FEN.	9410003 REAR MUDGUARD FEN. (L.H.S.) PARAFANGO POST.	-	1	Enquire
006	9911501	REAR WHEELBOX	9911501 REAR WHEELBOX (L.H.S.) PASSARUOTA POST.	-	1	Enquire
007	8740685	SCREW	8740685 SCREW (L.H.S.) VITE	-	11	Enquire
008	8400624	WASHER	8400624 WASHER (L.H.S.) RONDELLA	-	11	Enquire
009	9411513	GASKET	9411513 GASKET (L.H.S.) GUARNIZIONE	-	1	Enquire
010	9411512	GASKET	9411512 GASKET (L.H.S.) GUARNIZIONE	-	1	Enquire
011	9411526	PROTECTION	9411526 PROTECTION (L.H.S.) PARASASSI	-	1	Enquire
012	9411511	GASKET	9411511 GASKET (L.H.S.) GUARNIZIONE	-	1	Enquire
013	9458607	DOORSILL MOULDING	9458607 DOORSILL MOULDING (L.H.S.) BATTICALCAGNO	-	1	Enquire
014	WHT000916A	CLIP	WHT000916A CLIP (L.H.S.) MOLLETTA	-	17	Enquire
015	N91109201	WASHER	N91109201 WASHER (L.H.S.) RONDELLA	-	17	Enquire
016	8700449	SCREW	8700449 SCREW (L.H.S.) VITE	-	17	Enquire
017	N90327506	SPEED NUT	N90327506 SPEED NUT (L.H.S.) MOLLETTA	-	6	Enquire
018	8400624	WASHER	8400624 WASHER (L.H.S.) RONDELLA	-	3	Enquire
019	8740685	SCREW	8740685 SCREW (L.H.S.) VITE	-	3	Enquire
020	9410305	SIDE PANEL	9410305 SIDE PANEL (L.H.S.) BRANCARDO SX	-	1	Enquire
021	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT (L.H.S.) VITE	-	8	Enquire
022	WHT002961	WASHER	WHT002961 WASHER (L.H.S.) RONDELLA	-	3	Enquire
023	9430170	NET	9430170 NET (L.H.S.) RETE	-	1	Enquire
024	9453125	GASKET	9453125 GASKET (L.H.S.) GUARNIZIONE	-	2	Enquire
025	9453155	CONVEYOR	9453155 CONVEYOR (L.H.S.) CONVOGLIATORE	-	1	Enquire
026	9411512	GASKET	9411512 GASKET (L.H.S.) GUARNIZIONE	-	1	Enquire
027	9453126	GASKET	9453126 GASKET (L.H.S.) GUARNIZIONE	-	1	Enquire
028	9453142	CONVEYOR	9453142 CONVEYOR (L.H.S.) CONVOGLIATORE	-	1	Enquire
029	9490200	GASKET	9490200 GASKET (L.H.S.) GUARNIZIONE	-	1	Enquire
030	N90327506	SPEED NUT	N90327506 SPEED NUT (L.H.S.) MOLLETTA	-	2	Enquire
031	8700334	SCREW	8700334 SCREW (L.H.S.) VITE	-	2	Enquire
