Gearbox Oil Pump of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

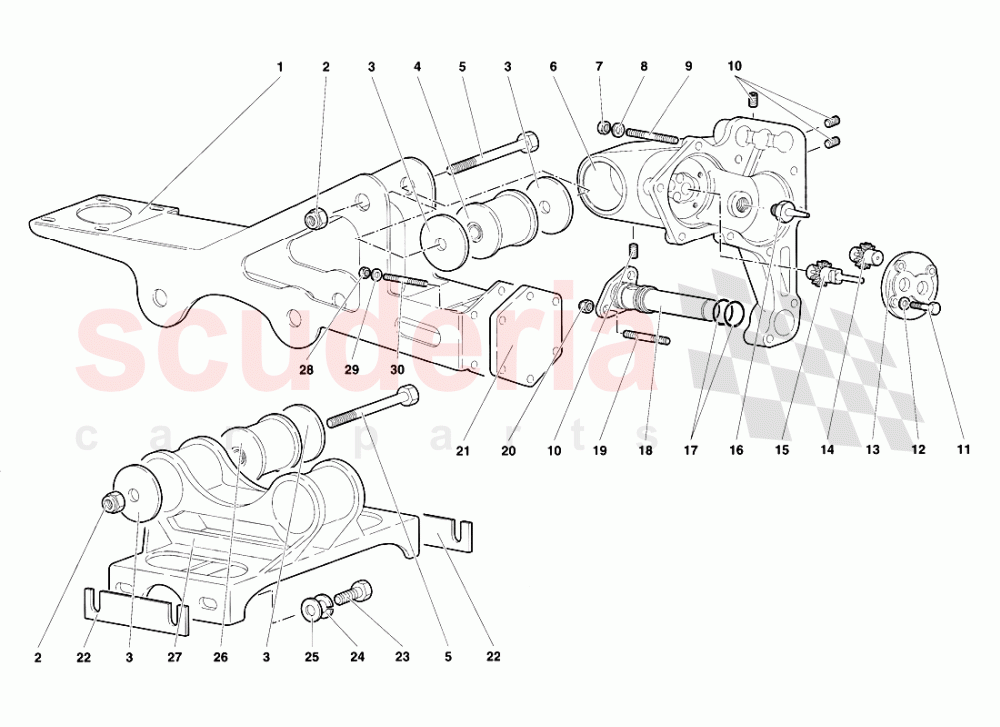

Lamborghini Diablo SE30 (1993-1995) - Gearbox Oil Pump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2431479	SUPPORT - SUPPORTO	2431479 SUPPORT - SUPPORTO O	$450.37	1
002	8201416	NUT	8201416 NUT DADO	$1.74	3
003	4130884	WASHER	4130884 WASHER RONDELLA	$42.36	2
004	B9501144	support mount IN STOCK	B9501144 support mount IN STOCK	$243.94	1
005	8101430	SCREW	8101430 SCREW VITE	$3.54 MSRP: ~~3.65~~ (3% off)	3
006	2431783	COVER	2431783 COVER COPERCHIO ANT. SCAT. CAMBIO	$2,562.04	1
007	8200806	NUT	8200806 NUT DADO	$0.36 MSRP: ~~7.33~~ (95.1% off)	8
008	WHT001514	WASHER IN STOCK	WHT001514 WASHER RONDELLA IN STOCK	$24.95 MSRP: ~~64.00~~ (61% off)	8
009	8300840	STUD	8300840 STUD PRIGIONIERO	$3.37	8
010	8701204	PLUG	8701204 PLUG VITE	$2.09 MSRP: ~~2.15~~ (2.8% off)	4
011	8100617	SCREW	8100617 SCREW VITE	$5.82 MSRP: ~~6.00~~ (3% off)	4
012	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	4
013	2431778	COVER	2431778 COVER COPERCHIO P.OLIO CAMBIO	$430.52	1
014	2425185	DRIVEN GEAR	2425185 DRIVEN GEAR INGRANAGGIO CONDOTTO	$555.82 MSRP: ~~579.00~~ (4% off)	1
015	2425184	GEAR	2425184 GEAR INGRANAGGIO	$492.57 MSRP: ~~513.00~~ (4% off)	1
016	2425259	JET	2425259 JET UGELLO	$20.47 MSRP: ~~21.35~~ (4.1% off)	1
017	8602301	SEAL	8602301 SEAL ANELLO TENUTA	$1.74 MSRP: ~~7.04~~ (75.3% off)	2
018	2425246	OIL FILTER	2425246 OIL FILTER FILTRO OLIO	$176.61	1
019	8300833	STUD BOLT	8300833 STUD BOLT PRIGIONIERO	$6.09 MSRP: ~~6.30~~ (3.3% off)	2
020	8200821	NUT	8200821 NUT DADO	$2.81	2
021	2425638	COVER	2425638 COVER FLANGIA	$63.41	1
022	4126766	SPACER	4126766 SPACER DISTANZIALE	-	1	Enquire
023	N01033520	SCREW M8X35 IN STOCK	N01033520 SCREW M8X35 VITE IN STOCK	$1.55 MSRP: ~~7.19~~ (78.4% off)	4
024	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	4
025	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.47 MSRP: ~~7.15~~ (79.4% off)	4
026	B9501144	support mount IN STOCK	B9501144 support mount IN STOCK	$243.94	2
027	4131478	SUPPORT - SUPPORTO	4131478 SUPPORT - SUPPORTO O	$447.27	1
028	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 DADO IN STOCK	$0.33 MSRP: ~~7.29~~ (95.5% off)	6
029	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	6
030	8300602	STUD	8300602 STUD PRIGIONIERO	$6.70 MSRP: ~~6.95~~ (3.6% off)	6
