Gearbox Control Tower of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

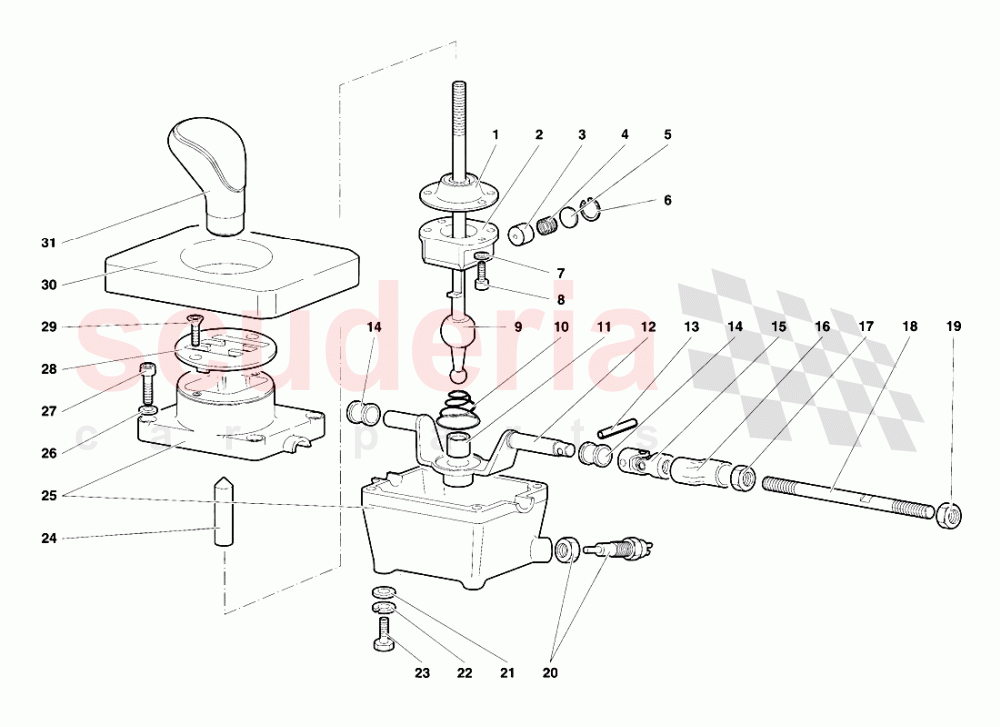

Lamborghini Diablo SE30 (1993-1995) - Gearbox Control Tower

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2433043	BOOT	2433043 BOOT CUFFIA X LEVA COM.CAMBIO	$119.14	1
002	2434091	BALL SOCKFT	2434091 BALL SOCKFT SEDE SFERICA	$240.69 MSRP: ~~243.50~~ (1.2% off)	1
003	2427202	CYLINDER	2427202 CYLINDER CILINDRO	$85.00	1
004	2432167	SPRING	2432167 SPRING MOLLA	$12.17 MSRP: ~~12.70~~ (4.2% off)	1
005	2427204	PLUG	2427204 PLUG TAPPO	$10.31	1
006	8572201	RETAINER RING IN STOCK	8572201 RETAINER RING ANELLO RITEGNO IN STOCK	$0.07 MSRP: ~~7.38~~ (99.1% off)	1
007	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	4
008	8700646	SCREW IN STOCK	8700646 SCREW VITE IN STOCK	$0.16 MSRP: ~~7.37~~ (97.8% off)	4
009	2433008	LEVER	2433008 LEVER LEVA COMANDO CAMBIO	$1,346.15 MSRP: ~~1,395.00~~ (3.5% off)	1
010	2429160	SPRING	2429160 SPRING MOLLA X LEVA COM.CAMBIO	$171.53	1
011	2427207	BUSHING	2427207 BUSHING BOCCOLA X LEVA COM.CAMBIO	$321.35	1
012	2429161	SHAFT	2429161 SHAFT ALBERINO	$304.61 MSRP: ~~308.00~~ (1.1% off)	1
013	8900305	PIN - SPINA	8900305 PIN - SPINA SA	$0.27 MSRP: ~~7.35~~ (96.3% off)	1
014	2433020	BUSHING	2433020 BUSHING BOCCOLA (solo con 240132003)	$78.48	2
015	410711615	RH JOINT	410711615 RH JOINT GIUNTO CARDANICO DX	$1,080.65	1
016	2432117	LINER	2432117 LINER GUAINA IN GOMMA	$66.26	1
017	8201223	NUT	8201223 NUT DADO (DX)	-	1	Enquire
018	2435940	ROD	2435940 ROD ASTA	$26.37	1
019	8201224	NUT	8201224 NUT DADO (SX)	-	1	Enquire
020	2408637	SWITCH	2408637 SWITCH INTERRUTTORE RETROMARCIA	$117.25	1
021	8400801	WASHER	8400801 WASHER RONDELLA	$0.68	4
022	8410817	WASHER	8410817 WASHER RONDELLA	$4.69	4
023	8100840	SCREW IN STOCK	8100840 SCREW VITE IN STOCK	$0.46	4
024	2435580	ADAPTER KNOB	2435580 ADAPTER KNOB ADATTATORE POMELLO	$34.99	1
025	240132003	CASE	240132003 CASE SCATOLA LAVORATA	$1,631.51 MSRP: ~~1,660.00~~ (1.7% off)	1
026	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.19	4
027	8700804	SCREW IN STOCK	8700804 SCREW VITE IN STOCK	$1.63 MSRP: ~~7.33~~ (77.8% off)	4
028	2433874	PLATE	2433874 PLATE PIASTRA Dl SELEZIONE	$1,307.08	1
029	8700681	SCREW	8700681 SCREW VITE	$0.62	2
030	2431785	FLEX PAD	2431785 FLEX PAD SPESSORE IN GOMMA	-	1	Enquire
031	2435357	KNOB	2435357 KNOB POMELLO LEVA CAMBIO	$118.10	1
