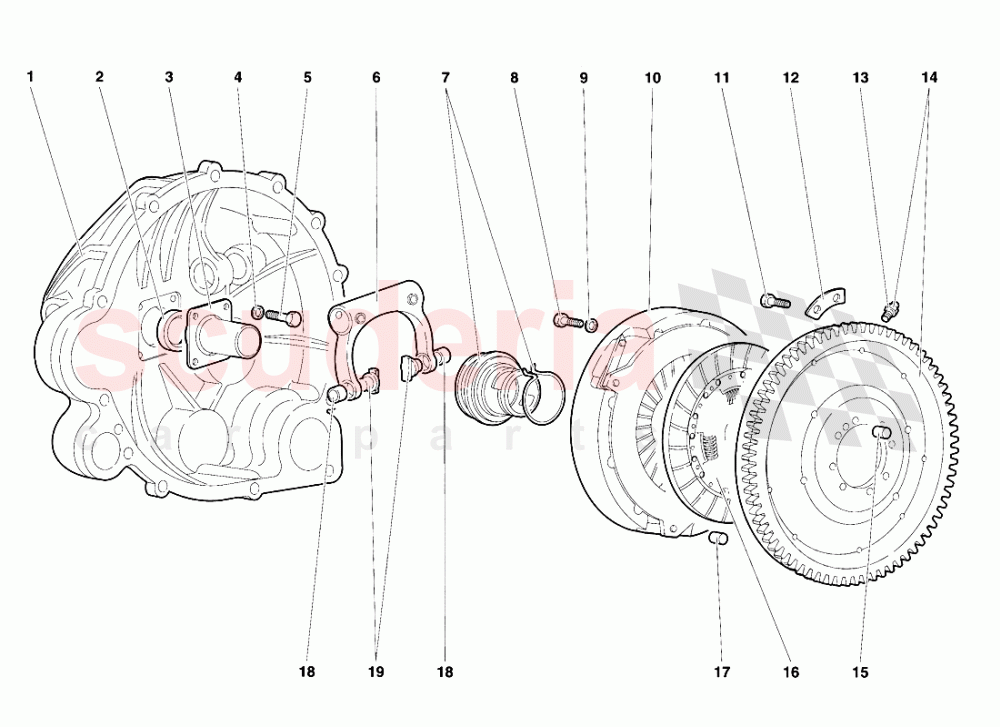

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2424451	CLUTCH BELL HOUSING	2424451 CLUTCH BELL HOUSING CAMPANA FRIZIONE	-	1	Enquire
002	8613206	SEAL IN STOCK	8613206 SEAL ANELLO TENUTA IN STOCK	-	1	Enquire
003	2428864	SUPPORT - SUPPORTO REGGISPINTA	2428864 SUPPORT - SUPPORTO REGGISPINTA O REGGISPINTA	-	1	Enquire
004	8410603	WASHER	8410603 WASHER RONDELLA	-	4	Enquire
005	8100617	SCREW	8100617 SCREW VITE	-	4	Enquire
006	2121341	FORK	2121341 FORK FORCELLA COMANDO FRIZIONE	-	1	Enquire
007	2129353	SLEEVE T/OBEARING	2129353 SLEEVE T/OBEARING (Sachs)	-	1	Enquire
008	8100851	SCREW	8100851 SCREW VITE	-	9	Enquire
009	WHT001514	WASHER IN STOCK	WHT001514 WASHER RONDELLA IN STOCK	-	9	Enquire
010	2132598	PRESSURE PLATE	2132598 PRESSURE PLATE (Sachs)	-	1	Enquire
011	WHT002951	Hexagon Head Bolt M8x1.25x23 IN STOCK	WHT002951 Hexagon Head Bolt M8x1.25x23 VITE IN STOCK	-	8	Enquire
012	410141179	Retaining Plate	410141179 Retaining Plate	-	4	Enquire
013	7M105357	PIN	7M105357 PIN	-	6	Enquire
014	2132714	FLYWHEEL WITH PINS	2132714 FLYWHEEL WITH PINS VOLANO MOTORE CON PIOLI	-	1	Enquire
015	8850806	DOWEL	8850806 DOWEL GRANO	-	1	Enquire
016	2132599	CLUTCH DRIVEN	2132599 CLUTCH DRIVEN (Sachs)	-	1	Enquire
017	2132713	DOWEL	2132713 DOWEL GRANO	-	3	Enquire
018	8801206	BUSHING	8801206 BUSHING BOCCOLA	-	2	Enquire
019	2128866	PAWL	2128866 PAWL NOTTOLINO	-	2	Enquire
