Differential of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

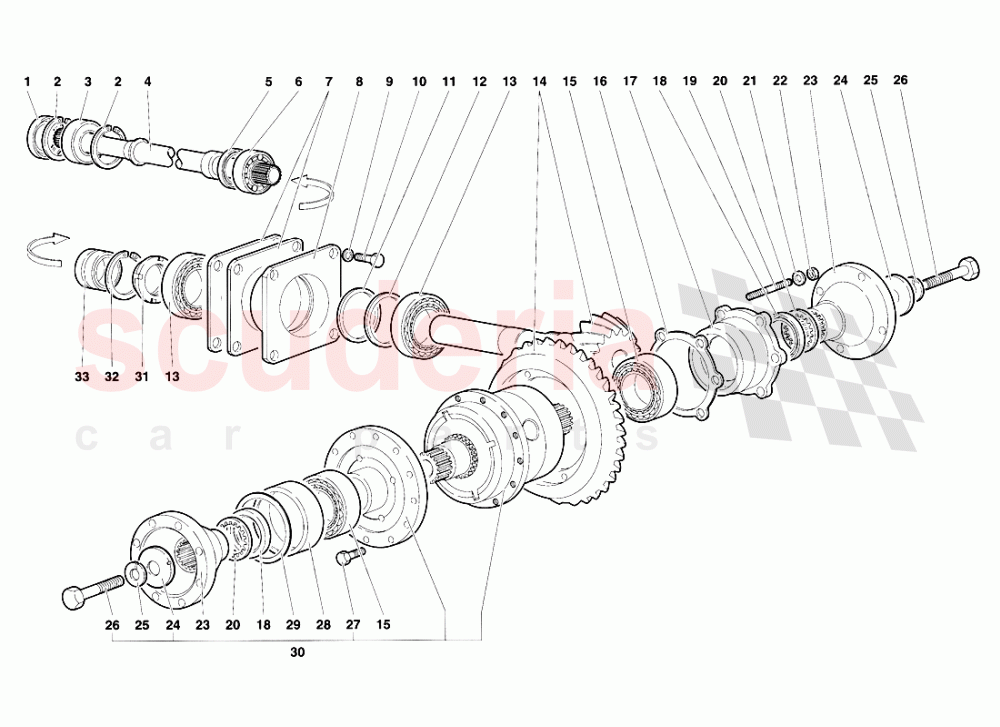

Lamborghini Diablo SE30 (1993-1995) - Differential

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8613005	SEAL	8613005 SEAL ANELLO TENUTA	$63.28	1
002	8575501	RETAINING RING	8575501 RETAINING RING ANELLO RITEGNO	$1.32 MSRP: ~~7.13~~ (81.5% off)	2
003	410103520	BEARING	410103520 BEARING CUSCINETTO	$69.92	1
004	2331406	PROPELLER SHAFT	2331406 PROPELLER SHAFT ALBERO TRASMISSIONE	$3,293.01	1
005	8613508	SEAL	8613508 SEAL ANELLO TENUTA	$178.04	1
006	8503010	BEARING	8503010 BEARING CUSCINETTO	$21.86 MSRP: ~~22.80~~ (4.1% off)	1
007	2324939	SHIM	2324939 SHIM SPESSORE Dl REGISTRO	$43.35	1
008	2324938	FLANGE	2324938 FLANGE FLANGIA PORTACUSCINETTI	$806.25 MSRP: ~~835.00~~ (3.4% off)	1
009	8410815	WASHER	8410815 WASHER RONDELLA	$0.21 MSRP: ~~7.37~~ (97.2% off)	4
010	8100803	SCREW M8X1,25X25	8100803 SCREW M8X1,25X25 VITE	$0.51 MSRP: ~~7.31~~ (93% off)	4
011	2330695	SHIM	2330695 SHIM SPESSORE Dl REGISTRO 0,25 mm	$40.83	1
011	2330693	SHIM	2330693 SHIM SPESSORE Dl REGISTRO 0,5 mm	$24.62 MSRP: ~~25.65~~ (4% off)	1
011	2330694	SHIM	2330694 SHIM SPESSORE Dl REGISTRO 0,3 mm	$40.83	1
011	2330697	SHIM	2330697 SHIM SPESSORE Dl REGISTRO 0,15 mm	$24.62 MSRP: ~~25.65~~ (4% off)	1
011	2330696	SHIM	2330696 SHIM SPESSORE Dl REGISTRO 0,2 mm	$40.83	1
012	2328764	SPACER	2328764 SPACER DISTANZIALE	$62.18	1
013	8545004	BEARING	8545004 BEARING CUSCINETTO	$156.33	2
014	2335310	BEVEL SET	2335310 BEVEL SET COPPIACONICA	$9,398.24	1
015	8545002	BEARING	8545002 BEARING CUSCINETTO	$596.78	2
016	2324942	SHIM	2324942 SHIM SPESSORE Dl REGISTRO	$54.59	1
017	2324452	FLANGE	2324452 FLANGE FLANGIA PORTACUSCINETTO	$253.73 MSRP: ~~257.00~~ (1.3% off)	1
018	8614507	SEAL	8614507 SEAL ANELLO TENUTA	$49.76	2
019	8301022	STUD	8301022 STUD PRIGIONIERO	$12.05 MSRP: ~~12.55~~ (4% off)	6
020	2325117	THRUST PLATE	2325117 THRUST PLATE RALLA X FLANGIA SEMIASSE	$82.90	2
021	WHT000768	WASHER IN STOCK	WHT000768 WASHER IN STOCK	$1.96 MSRP: ~~7.28~~ (73.1% off)	6
022	N10155210	NUT	N10155210 NUT DADO	$1.96 MSRP: ~~7.24~~ (72.9% off)	6
023	2335028	FLANGE	2335028 FLANGE FLANGIA DIFFER.X SEMIASSE	$889.59	2
024	2332653	WASHER	2332653 WASHER RONDELLA	$122.45	2
025	2332652	WASHER	2332652 WASHER RONDELLA	$9.67 MSRP: ~~9.85~~ (1.8% off)	2
026	2332651	SCREW	2332651 SCREW VITE	$22.46 MSRP: ~~23.35~~ (3.8% off)	2
027	2332650	SCREW	2332650 SCREW VITE	$27.29	12
028	2324940	BEARING CASE	2324940 BEARING CASE ANELLO PORTACUSCINETTO	$1,295.49	1
029	2331920	SHIM	2331920 SHIM SPESSORE Dl REGISTRO 0,2 mm	$24.62 MSRP: ~~25.65~~ (4% off)	1
029	2331921	SHIM	2331921 SHIM SPESSORE Dl REGISTRO 0,15 mm	$24.62 MSRP: ~~25.65~~ (4% off)	1
029	2331918	SHIM	2331918 SHIM SPESSORE Dl REGISTRO 0,3 mm	$24.62 MSRP: ~~25.65~~ (4% off)	1
029	2331919	SHIM	2331919 SHIM SPESSORE Dl REGISTRO 0,25 mm	$24.62 MSRP: ~~25.65~~ (4% off)	1
029	2331917	SHIM	2331917 SHIM SPESSORE Dl REGISTRO 0,5 mm	$28.73	1
030	2332210	KIT DIFFERENTIAL	2332210 KIT DIFFERENTIAL KIT DIFFERENZIALE	-	1	Enquire
031	8254503	PLUG	8254503 PLUG GHIERA	$194.69	1
032	8575000	RETAINER RING	8575000 RETAINER RING ANELLO RITEGNO	$0.80	1
033	8524014	BEARING	8524014 BEARING CUSCINETTO	$204.73 MSRP: ~~213.50~~ (4.1% off)	1
