Lamborghini Diablo SE30 (1993-1995) - Pedals

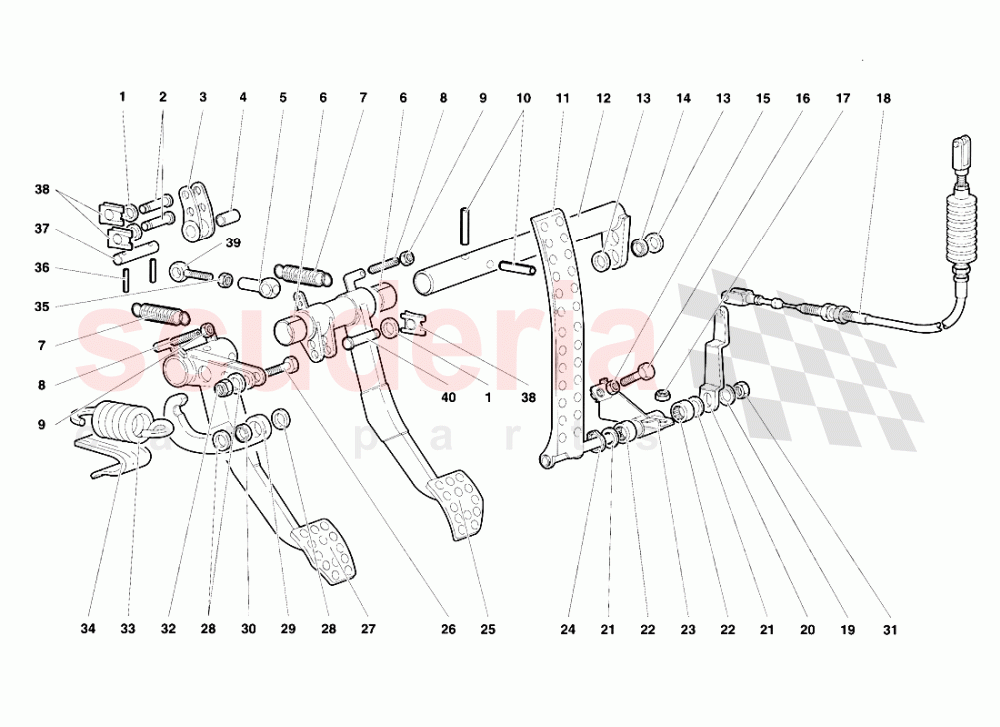

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8401007	WASHER	8401007 WASHER RONDELLA	-	3	Enquire
002	4232621	PIN	4232621 PIN PERNO	-	2	Enquire
003	4225060	ROCKER	4225060 ROCKER BILANCIERE	-	1	Enquire
004	8801209	BUSHING	8801209 BUSHING BOCCOLA	-	1	Enquire
005	4225061	COUPLING	4225061 COUPLING TESTA A SNODO	-	1	Enquire
006	8802501	BUSHING	8802501 BUSHING BOCCOLA	-	2	Enquire
007	1321270	SPRING	1321270 SPRING MOLLA Dl RICHIAMO	-	2	Enquire
008	4210834	ADJUSTING SLEEVE	4210834 ADJUSTING SLEEVE TESTA REGISTRO	-	2	Enquire
009	N01100637	NUT M6	N01100637 NUT M6 DADO	-	2	Enquire
010	8900803	PIN	8900803 PIN SA	-	2	Enquire
011	4235545	ACCELERATOR PEDAL	4235545 ACCELERATOR PEDAL PEDALE ACCELERATORE	-	1	Enquire
012	4234730	SHAFT	4234730 SHAFT ALBERO	-	1	Enquire
013	8400819	WASHER 8X12X1	8400819 WASHER 8X12X1 RONDELLA	-	2	Enquire
014	4225225	COUPLING	4225225 COUPLING SNODO	-	1	Enquire
015	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	-	1	Enquire
016	8100828	SCREW	8100828 SCREW VITE	-	1	Enquire
017	8200804	NUT M8	8200804 NUT M8 DADO	-	2	Enquire
018	4230089	GAS CABLE	4230089 GAS CABLE CAVO ACCELERATORE	-	1	Enquire
019	8400801	WASHER	8400801 WASHER RONDELLA	-	1	Enquire
020	4230149	LEVER	4230149 LEVER LEVA	-	1	Enquire
021	8401220	WASHER	8401220 WASHER RONDELLA	-	2	Enquire
022	8521205	BEARING	8521205 BEARING CUSCINETTO	-	2	Enquire
023	4231811	SUPPORT - SUPPORTO	4231811 SUPPORT - SUPPORTO O	-	1	Enquire
024	8581101	RETAINER RING	8581101 RETAINER RING ANELLO RITEGNO	-	1	Enquire
025	4234732	BRAKE PEDAL	4234732 BRAKE PEDAL PEDALE FRENO	-	1	Enquire
026	8100841	SCREW	8100841 SCREW VITE	-	1	Enquire
027	4234733	CLUTCH PEDAL	4234733 CLUTCH PEDAL PEDALE FRIZIONE	-	1	Enquire
028	WHT002962	WASHER 14X8.4X1.5	WHT002962 WASHER 14X8.4X1.5 RONDELLA	-	3	Enquire
029	4233844	ROCKER	4233844 ROCKER BILANCIERE	-	1	Enquire
030	4229456	COUPLING	4229456 COUPLING SNODO	-	1	Enquire
031	8200804	NUT M8	8200804 NUT M8 DADO	-	1	Enquire
032	8200804	NUT M8	8200804 NUT M8 DADO	-	1	Enquire
033	4227889	SPRING	4227889 SPRING MOLLA	-	1	Enquire
034	4233379	SHIELD	4233379 SHIELD PROTEZIONE	-	1	Enquire
035	N10155210	NUT	N10155210 NUT DADO	-	1	Enquire
036	8900305	PIN - SPINA	8900305 PIN - SPINA SA	-	1	Enquire
037	4225074	PIN	4225074 PIN PERNO	-	1	Enquire
038	8581004	CLIP	8581004 CLIP MOLLETTA	-	3	Enquire
