Gearbox Shifting Rods And Forks

Lamborghini Diablo SE30 (1993-1995)

Find Your Part

Lamborghini Diablo SE30 (1993-1995) - Gearbox Shifting Rods and forks

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

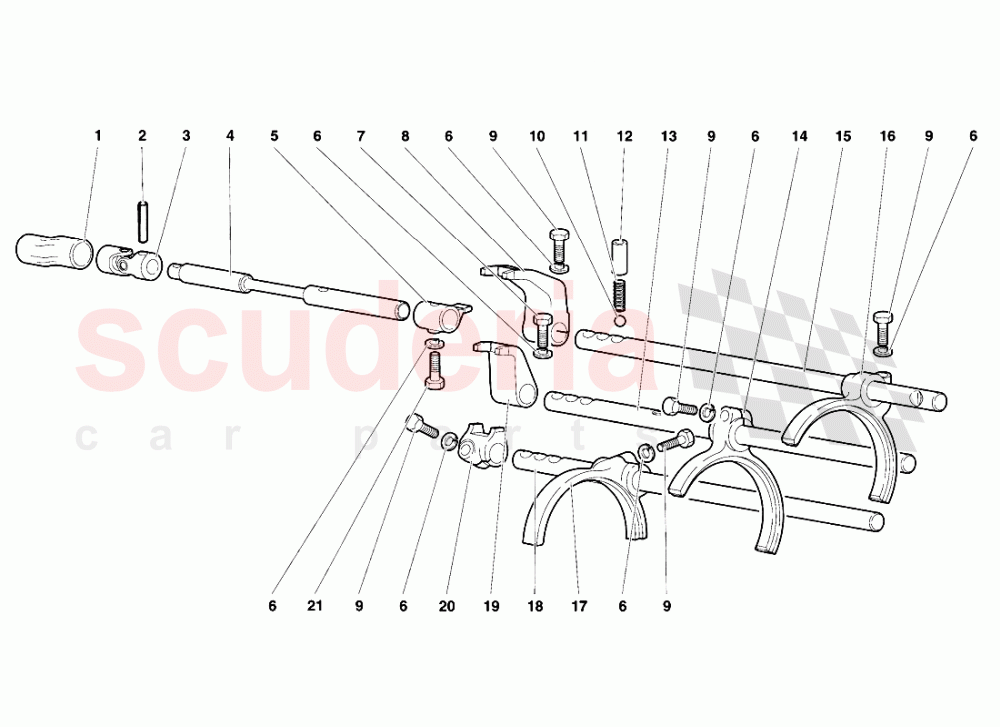

Gearbox Shifting Rods and forks of Lamborghini Lamborghini Diablo SE30 (1993-1995) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 2432117
LINER
GUAINA 		$66.26 1
002 8900501
PIN - SPINA
SA 		$5.66 (2.4% off) 1
003 410711613
LH JOINT
GIUNTO CARDANICO 		$817.22 1
004 2434824
ROD
ASTA COMANDO CAMBIO 		$201.18 1
005 2425186
SELECTOR
SELETTORE MARGE 		$172.46 (1.2% off) 1
006 8410817
WASHER
RONDELLA 		$4.69 7
007 N0124032
SCREW
VITE 		- 1 Enquire
008 2425189
SELECTOR
SELETTORE MARGE 		$208.42 (1.2% off) 1
009 8100803
SCREW M8X1,25X25
VITE 		$0.51 (93% off) 5
010 8910701
BALL
SFERA 		- 3 Enquire
011 86311249
SPRING
MOLLA SCATTO ASTE 		$5.11 3
012 2401765
BUSHING
BOCCOLA SFERA ASTE CAMBIO 		$17.43 (3.7% off) 3
013 2425230
ROD
ASTA 2 - E 3 - MARCIA 		$209.09 1
014 2425191
FORK
FORCELLA COMANDO 2 - E 3 - MARCIA 		$529.77 1
015 2425229
ROD
ASTA 1 - MARCIA E RM 		$187.35 (1.1% off) 1
016 2425190
FORK
FORCELLA COMANDO 1 - MARCIA E R.M. 		$203.49 (1.2% off) 1
017 2425192
FORK
FORCELLA COMANDO 4 - E 5 - MARCIA 		$477.67 (1.3% off) 1
018 2425231
ROD
ASTA 4 - E 5 - MARCIA 		$424.34 (4.4% off) 1
019 2425188
SELECTOR
SELETTORE MARCE 		$166.88 (1.3% off) 1
020 2425187
SELECTOR
SELETTORE MARGE 		$186.73 (1.2% off) 1
021 8100628
SCREW
VITE SPECIALE 		$52.85 1
