Rear Suspension

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - Rear Suspension

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

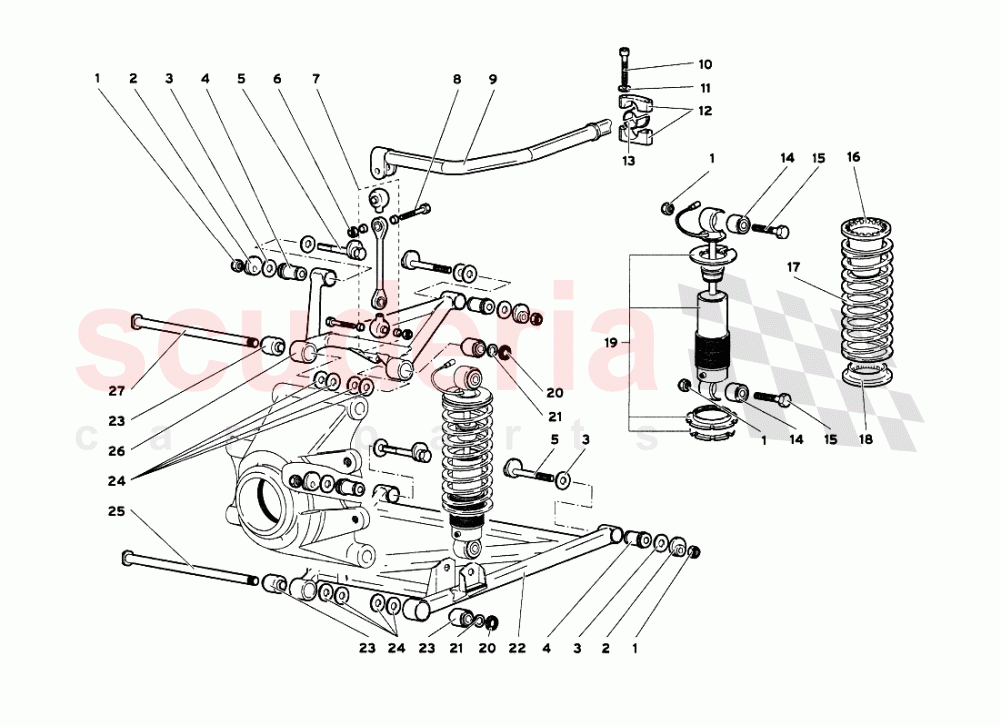

Rear Suspension of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 WHT003355
NUT M12X1,25 		- 8 Enquire
002 410407127A
BOLT 		- 8 Enquire
003 410407295B
2.0 MM ADJUSTMENT SHIM 		- 1 Enquire
003 410407295
1.0 MM ADJUSTMENT SHIM 		- 1 Enquire
003 5133488
SHIM 		- 1 Enquire
003 410407295D
WASHER 		- 1 Enquire
003 410407295C
2.5 MM ADJUSTMENT SHIM 		- 1 Enquire
004 8921206
RESILIENT BUSHING 		- 8 Enquire
005 52002939
CAM SCREW 		- 8 Enquire
006 8200809
NUT 		- 4 Enquire
007 410411317
CONNECTING ROD 		- 2 Enquire
008 8100807
SCREW 		- 4 Enquire
009 52005049
TORSION BAR 		- 1 Enquire
010 WHT002960
SCREW 		- 4 Enquire
011 8410602
WASHER 		- 4 Enquire
012 52003970
RETAINER 		- 2 Enquire
013 52003966
BUSHING 		- 4 Enquire
014 410512383
FLEXIBLE BUSHING 		- 8 Enquire
015 8101269
SCREW 		- 8 Enquire
016 52009107
RING 		- 4 Enquire
017 52003963
SPRING 		- 4 Enquire
018 410512385
RUBBER RING 		- 4 Enquire
019 52006593
SHOCK ABSORBER 		- 4 Enquire
020 8251702
PLUG 		- 4 Enquire
021 8401708
WASHER 		- 4 Enquire
022 5225907
ARM 		- 1 Enquire
022 5225906
ARM 		- 1 Enquire
023 5225207
RESILIENT BUSHING 		- 8 Enquire
024 8401710
WASHER 		- 24 Enquire
025 5225205
PIN 		- 2 Enquire
026 5225909
ARM 		- 1 Enquire
026 5225908
RH UPPER SUSPENSION ARM 		- 1 Enquire
027 5225204
PIN 		- 2 Enquire
