Front Suspension of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

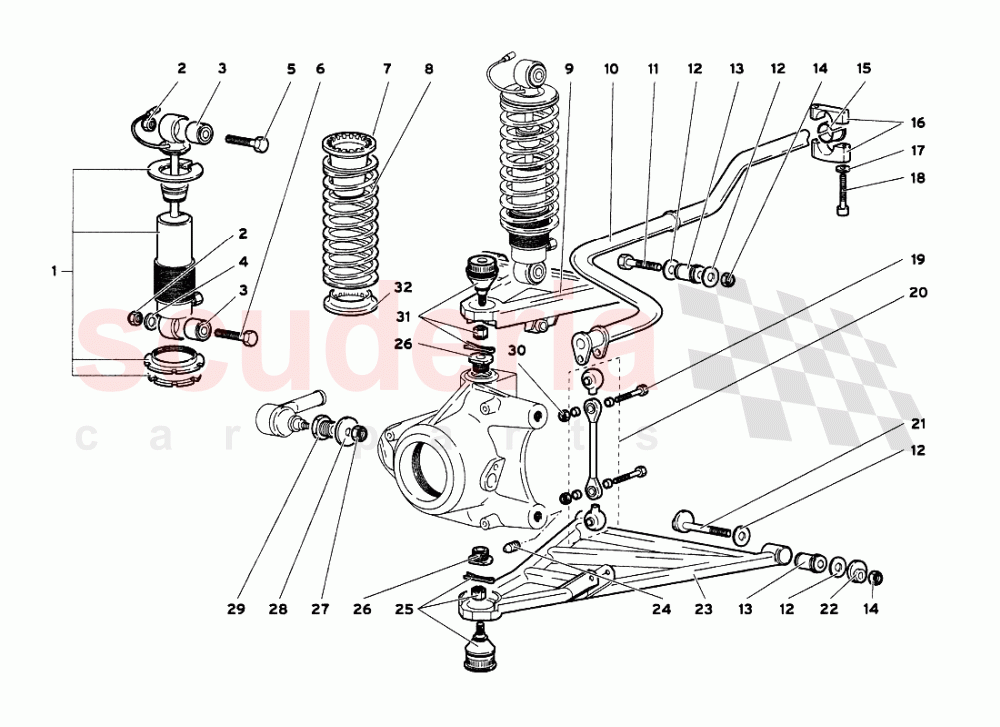

Lamborghini Diablo VT 6.0 (2000-2001) - Front Suspension

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	51006592	SHOCK ABSORBER (LIFTING SYSTEM)	51006592 SHOCK ABSORBER (LIFTING SYSTEM)	$5,826.09	2
002	WHT003355	NUT M12X1,25 IN STOCK	WHT003355 NUT M12X1,25 IN STOCK	$21.86	4
003	410512383	FLEXIBLE BUSHING	410512383 FLEXIBLE BUSHING	$587.37	4
004	8401234	WASHER	8401234 WASHER	$1.68 MSRP: ~~7.11~~ (76.4% off)	12
005	8101269	SCREW	8101269 SCREW	$5.14	2
006	5133229	SCREW	5133229 SCREW	$110.91	2
007	52009107	RING	52009107 RING	$59.76	4
008	51004039	SPRING	51004039 SPRING	$631.74	2
009	51004777	LH UPPER ARM	51004777 LH UPPER ARM	$2,229.11	1
009	51004775	RH UPPER ARM	51004775 RH UPPER ARM	$1,519.85	1
010	5134392	TORSION BAR	5134392 TORSION BAR	$941.69	1
011	8101269	SCREW	8101269 SCREW	$5.14	4
012	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM	$4.52	1
012	5133488	SHIM	5133488 SHIM	$3.25	1
012	410407295D	WASHER	410407295D WASHER	$29.71	1
012	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM	$6.66	1
012	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM	$7.32	1
013	8921206	RESILIENT BUSHING	8921206 RESILIENT BUSHING	$50.31	8
014	WHT003355	NUT M12X1,25 IN STOCK	WHT003355 NUT M12X1,25 IN STOCK	$21.86	8
015	5238302	BUSHING IN STOCK	5238302 BUSHING IN STOCK	$144.81	4
016	5230258	RETAINER	5230258 RETAINER	$311.40	2
017	8410602	WASHER IN STOCK	8410602 WASHER IN STOCK	$44.87	4
018	WHT002960	SCREW IN STOCK	WHT002960 SCREW IN STOCK	$9.03	4
019	8100810	SCREW	8100810 SCREW	-	4	Enquire
020	410411317	CONNECTING ROD	410411317 CONNECTING ROD	$438.19	2
021	52002939	CAM SCREW	52002939 CAM SCREW	-	4	Enquire
022	410407127A	BOLT	410407127A BOLT	$2,318.56	4
023	51004781	LH LOWER ARM	51004781 LH LOWER ARM	-	1	Enquire
023	410407156	RH LOWER ARM	410407156 RH LOWER ARM	$3,017.48	1
024	WHT002941	SCREW M6X1X10	WHT002941 SCREW M6X1X10	$0.97 MSRP: ~~7.24~~ (86.6% off)	4
025	410407361B	COUPLING	410407361B COUPLING	$1,260.75	2
026	410407171C	BUSH	410407171C BUSH	$1,465.06	4
027	8201003	NUT	8201003 NUT	$3.48	2
028	WHT000919	WASHER	WHT000919 WASHER	$14.99	2
029	51001030	BUSHING	51001030 BUSHING	-	2	Enquire
030	8200809	NUT	8200809 NUT	$1.96	4
031	410407365	Coupling	410407365 Coupling	$262.75	2
032	410512385	RUBBER RING IN STOCK	410512385 RUBBER RING IN STOCK	$53.43	2
