Steering 3

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - Steering 3

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

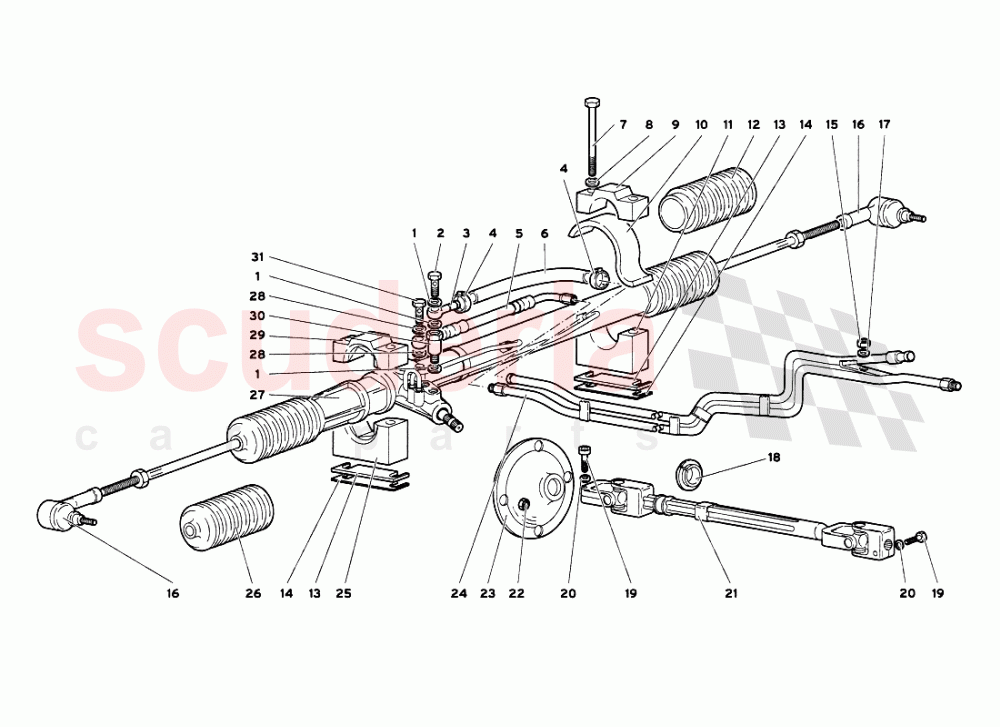

Steering 3 of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8401621
WASHER 		- 3 Enquire
002 3101941
SCREW 		- 1 Enquire
003 4033471
CONNECTION 		- 1 Enquire
004 N0245097
CLAMP 		- 2 Enquire
005 4033464
PIPE 		- 1 Enquire
006 4033459
PIPE 		- 1 Enquire
007 8101076
SCREW 		- 4 Enquire
008 8401006
WASHER 		- 4 Enquire
009 4333518
U-BOLT 		- 1 Enquire
010 4331587
FLEX PAD 		- 1 Enquire
011 4333655
SUPPORT 		- 1 Enquire
012 4335023
BOOT 		- 1 Enquire
013 4333658
1.0 MM ADJUSTMENT SHIM 		- 1 Enquire
014 4333657
0.5 MM ADJUSTMENT SHIM 		- 1 Enquire
015 N0211963
NUT 		- 3 Enquire
016 400419811A
Ball Joint Coupling 		- 2 Enquire
017 WHT001187
WASHER 		- 3 Enquire
018 43002396
BUSHING 		- 1 Enquire
019 8700843
SCREW 		- 2 Enquire
020 8410823
WASHER 		- 2 Enquire
021 43002198
JOINTED SHAFT 		- 1 Enquire
022 N01118312
HEXAGON NUT, SELF-LOCKING 		- 4 Enquire
023 410422326
GASKET 		- 1 Enquire
024 40006764
PIPE 		- 1 Enquire
025 4333656
SUPPORT 		- 1 Enquire
026 4335023
BOOT 		- 1 Enquire
027 413422061C
POWER STEERING RACK (LHD) 		- 1 Enquire
028 8401425
WASHER 		- 2 Enquire
029 4331582
U-BOLT 		- 1 Enquire
030 4033458
SCREW 		- 1 Enquire
031 5124347
SCREW 		- 1 Enquire
