Find Your Part

View All

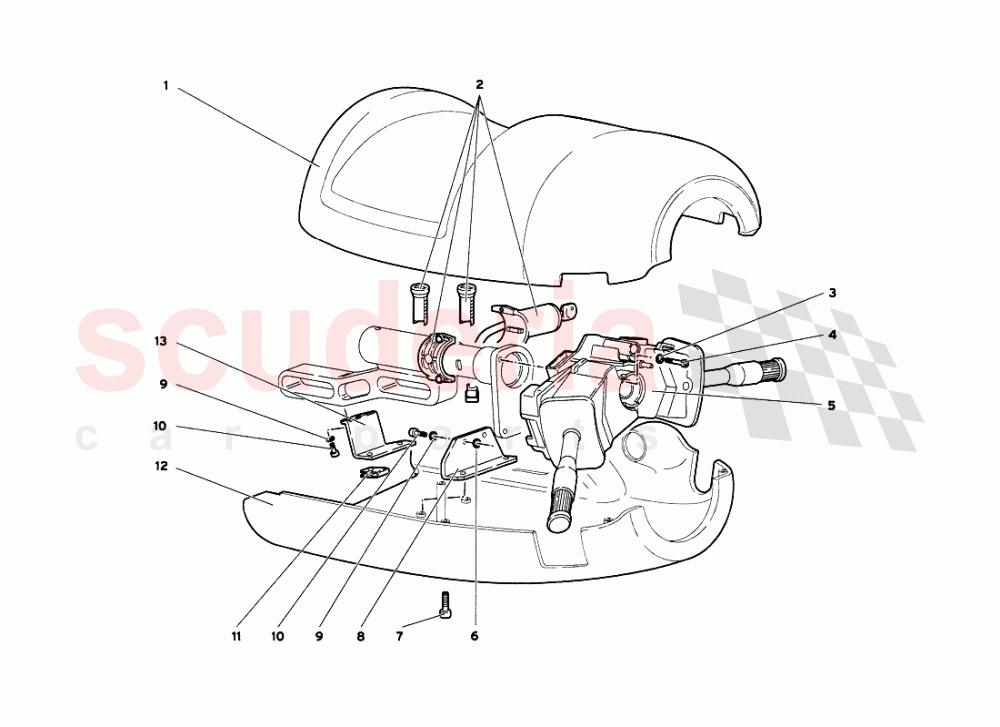

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	69006645	UPPER CASING	69006645 UPPER CASING	-	1	Enquire
002	6031202	IGNITION SWITCH IN STOCK	6031202 IGNITION SWITCH IN STOCK	-	1	Enquire
003	WHT001187	WASHER IN STOCK	WHT001187 WASHER IN STOCK	-	2	Enquire
004	8700547	SCREW IN STOCK	8700547 SCREW IN STOCK	-	2	Enquire
005	410953513	Column Switch	410953513 Column Switch	-	1	Enquire
006	8400627	WASHER	8400627 WASHER	-	2	Enquire
007	N91049601	OVAL HEAD PANEL SCREW (COMBI) IN STOCK	N91049601 OVAL HEAD PANEL SCREW (COMBI) IN STOCK	-	4	Enquire
008	43001652	BRACKET	43001652 BRACKET	-	1	Enquire
009	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System)	-	4	Enquire
010	N10648502	SCREW M5X10 IN STOCK	N10648502 SCREW M5X10 IN STOCK	-	4	Enquire
011	8220402	CLIP	8220402 CLIP	-	4	Enquire
012	69006648	LOWER CASING	69006648 LOWER CASING	-	1	Enquire
013	43004091	BRACKET	43004091 BRACKET	-	1	Enquire
