Steering 4 of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

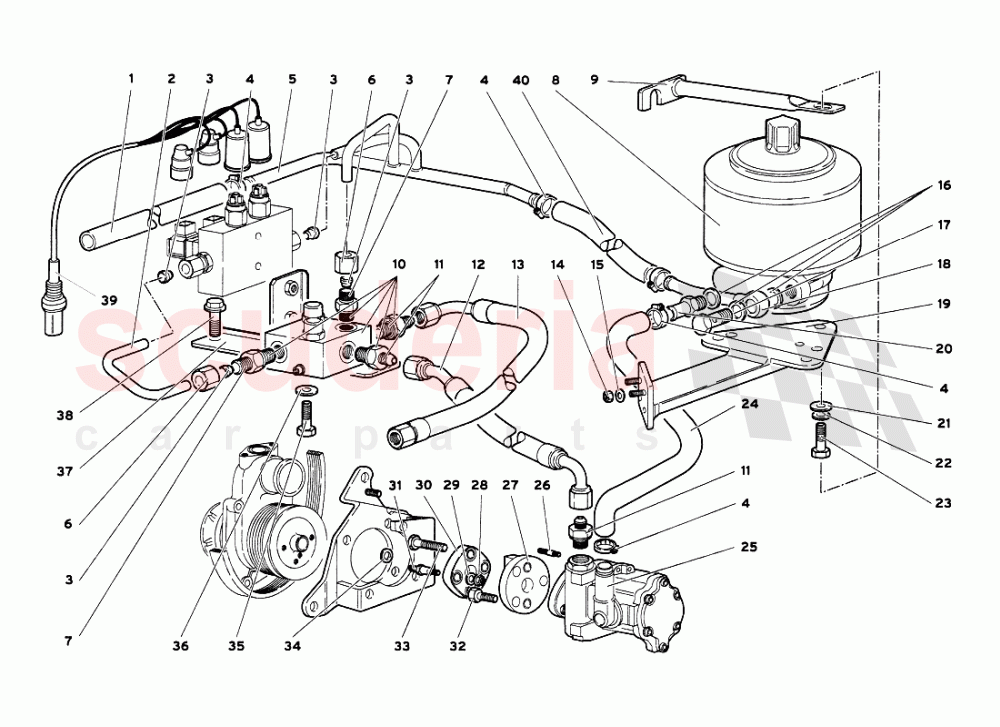

Lamborghini Diablo VT 6.0 (2000-2001) - Steering 4

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	40006826	HOSE	40006826 HOSE	$31.22	2
002	5134578	RIGID PIPE	5134578 RIGID PIPE	$26.42	1
003	4036492	BUSHING	4036492 BUSHING	-	4	Enquire
004	8831524	STRAP	8831524 STRAP	-	6	Enquire
005	5134584	RIGID PIPE	5134584 RIGID PIPE	$150.74	1
006	4036493	NUT	4036493 NUT	$6.45 MSRP: ~~6.70~~ (3.7% off)	2
007	4036490	CONNECTION	4036490 CONNECTION	$21.05 MSRP: ~~21.95~~ (4.1% off)	2
008	4037387	W/W RESERVOIR	4037387 W/W RESERVOIR	-	1	Enquire
009	40007278	BRACKET	40007278 BRACKET	$57.07	1
010	4034570	VALVE	4034570 VALVE	$1,013.65 MSRP: ~~1,060.00~~ (4.4% off)	1
011	4033472	CONNECTION	4033472 CONNECTION	$17.00 MSRP: ~~17.20~~ (1.2% off)	3
012	40006579	PIPE	40006579 PIPE	$985.73	1
013	4034582	PIPE	4034582 PIPE	$663.77 MSRP: ~~692.00~~ (4.1% off)	1
014	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING IN STOCK	$2.04	2
015	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.42	2
016	N91122801	WASHER 18,5X24X1,5 IN STOCK	N91122801 WASHER 18,5X24X1,5 IN STOCK	$3.05 MSRP: ~~7.18~~ (57.5% off)	5
017	4009760	SCREW	4009760 SCREW	-	2	Enquire
018	40006825	UNION	40006825 UNION	$93.69	1
019	40006513	SUPPORT	40006513 SUPPORT	$59.37	1
020	4036491	CONNECTION	4036491 CONNECTION	-	1	Enquire
021	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 IN STOCK	$1.55	3
022	8410819	WASHER	8410819 WASHER	$2.29 MSRP: ~~2.40~~ (4.6% off)	3
023	8100812	SCREW	8100812 SCREW	$0.36 MSRP: ~~7.33~~ (95.1% off)	3
024	4037205	PIPE	4037205 PIPE	$54.94	1
025	410145155	OIL PUMP	410145155 OIL PUMP	$7,627.67	1
025	410145155	OIL PUMP	410145155 OIL PUMP replaced: 0040002374	$7,627.67	1
026	8300828	STUD	8300828 STUD	-	3	Enquire
027	409005366	FLANGE	409005366 FLANGE	-	1	Enquire
028	N0211963	NUT IN STOCK	N0211963 NUT IN STOCK	$0.76	2
029	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System)	$7.53	2
030	1737220	FLEXIBLE JOINT	1737220 FLEXIBLE JOINT	$311.95	1
031	1737044	PIN	1737044 PIN	$186.73	2
032	8700840	SCREW	8700840 SCREW	$0.19 MSRP: ~~7.36~~ (97.4% off)	3
033	8100860	SCREW	8100860 SCREW	$3.79 MSRP: ~~3.85~~ (1.6% off)	2
034	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 IN STOCK	$0.33 MSRP: ~~7.35~~ (95.5% off)	2
035	8100613	SCREW	8100613 SCREW	$0.27 MSRP: ~~7.35~~ (96.3% off)	2
036	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.42	2
037	4036494	SUPPORT - (Valid for vehicles with lifting system) SUPPORTO	4036494 SUPPORT - (Valid for vehicles with lifting system) SUPPORTO	-	1	Enquire
038	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT	$0.95	1
039	6136818	LIFTING SYSTEM WIRING	6136818 LIFTING SYSTEM WIRING (Valid up to vehicle No. 1LA12760 except for vehicle No. 1LA12640)	$60.74	1
039	61008775	LIFTING SYSTEM WIRING	61008775 LIFTING SYSTEM WIRING (Valid for vehicle No. 1LA12640 and from vehicle No. 1LA12761)	-	1	Enquire
040	40006803	HOSE	40006803 HOSE	$19.48	1
