Lamborghini Diablo VT 6.0 (2000-2001) - Steering 2

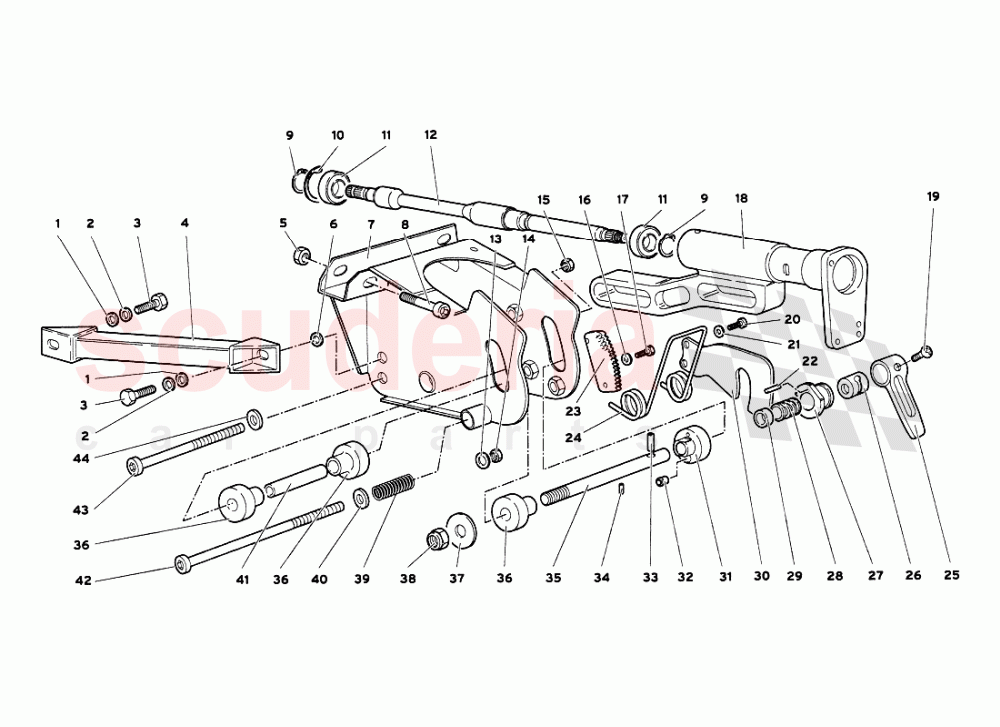

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 IN STOCK	$1.55	2
002	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.19	2
003	N0124032	SCREW	N0124032 SCREW	-	2	Enquire
004	43004552	STRUT	43004552 STRUT	$170.61 MSRP: ~~173.00~~ (1.4% off)	1
005	8200824	NUT	8200824 NUT	$0.46 MSRP: ~~7.31~~ (93.7% off)	2
006	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM	$4.52	1
007	43004072	SUPPORT - SUPPORTO	43004072 SUPPORT - SUPPORTO	$433.02 MSRP: ~~438.00~~ (1.1% off)	1
007	43008702	SUPPORT	43008702 SUPPORT (Valid for GB - March 2001)	$445.42	1
007	43008702	SUPPORT	43008702 SUPPORT (Valid for AUSTRALIA - March 2001)	$445.42	1
008	8700830	SCREW	8700830 SCREW	$0.68 MSRP: ~~7.28~~ (90.7% off)	2
009	WHT002646	RETAINING RING IN STOCK	WHT002646 RETAINING RING IN STOCK	$1.08 MSRP: ~~7.22~~ (85% off)	2
010	8573701	RETAINING RING	8573701 RETAINING RING	$0.64 MSRP: ~~7.26~~ (91.2% off)	1
011	8502011	BEARING	8502011 BEARING	$62.40	2
012	43002199	SMALL SHAFT	43002199 SMALL SHAFT	$134.00	1
013	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.19	1
014	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.89	1
015	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.89	1
016	WHT001187	WASHER IN STOCK	WHT001187 WASHER IN STOCK	$0.82 MSRP: ~~7.26~~ (88.7% off)	2
017	8700522	SCREW	8700522 SCREW	$0.42 MSRP: ~~7.31~~ (94.3% off)	2
018	43002200	S. COLUMN SUPPORT	43002200 S. COLUMN SUPPORT	$1,152.61 MSRP: ~~1,205.00~~ (4.3% off)	1
019	8700472	SCREW	8700472 SCREW	$0.33 MSRP: ~~7.33~~ (95.5% off)	2
020	8700532	SCREW	8700532 SCREW	$0.27 MSRP: ~~7.35~~ (96.3% off)	2
021	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System)	$7.53	2
022	4338318	PIN	4338318 PIN	$10.24 MSRP: ~~10.60~~ (3.4% off)	1
023	4337941	TOOTHED STRIKER	4337941 TOOTHED STRIKER	$57.47 MSRP: ~~60.10~~ (4.4% off)	1
024	43004084	SPRING	43004084 SPRING	$147.03 MSRP: ~~153.50~~ (4.2% off)	1
025	43006539	LEVER	43006539 LEVER	$681.14 MSRP: ~~712.00~~ (4.3% off)	1
026	43005387	SLEEVE	43005387 SLEEVE	$527.32 MSRP: ~~551.00~~ (4.3% off)	1
027	4337948	TOOTHED TAPPET	4337948 TOOTHED TAPPET	$144.56 MSRP: ~~150.00~~ (3.6% off)	1
028	4337947	SPRING	4337947 SPRING	$12.36 MSRP: ~~12.85~~ (3.8% off)	1
029	4337952	WASHER	4337952 WASHER	$49.70 MSRP: ~~52.00~~ (4.4% off)	1
030	43006655	COVER	43006655 COVER	$45.61	1
031	4337946	SPACER	4337946 SPACER	$249.38 MSRP: ~~260.00~~ (4.1% off)	1
032	4338060	POSITION BALL	4338060 POSITION BALL	$32.70 MSRP: ~~34.15~~ (4.2% off)	1
033	4338065	PIN	4338065 PIN	$7.46 MSRP: ~~7.70~~ (3.1% off)	1
034	8900408	PIN - SPINA	8900408 PIN - SPINA	-	1	Enquire
035	4337942	PIN	4337942 PIN	$319.18	1
036	4337939	SPACER	4337939 SPACER	$44.66 MSRP: ~~46.65~~ (4.3% off)	3
037	410407295D	WASHER	410407295D WASHER	$29.71	1
038	8201231	NUT	8201231 NUT	$1.44 MSRP: ~~7.11~~ (79.7% off)	1
039	9414416	SPRING	9414416 SPRING	$18.74 MSRP: ~~19.60~~ (4.4% off)	1
040	N01152427	WASHER IN STOCK	N01152427 WASHER IN STOCK	$0.28	1
041	4337944	BUSHING	4337944 BUSHING	$55.72 MSRP: ~~58.30~~ (4.4% off)	1
042	8700694	SCREW	8700694 SCREW	$1.43 MSRP: ~~7.17~~ (80.1% off)	1
043	8100824	SCREW	8100824 SCREW	$1.38 MSRP: ~~7.13~~ (80.6% off)	1
044	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.19	1
