Main Shaft of Lamborghini Lamborghini Diablo (1990-1998)

View All

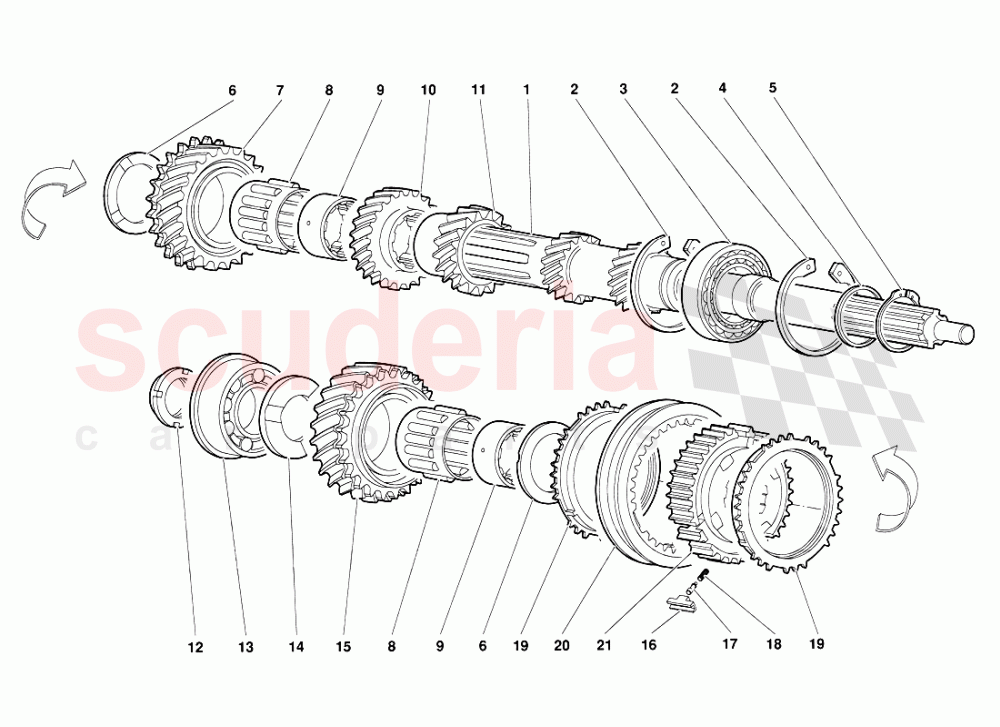

Lamborghini Diablo (1990-1998) - Main Shaft

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2428863	MAIN SHAFT	2428863 MAIN SHAFT ALBERO PRIMARIO	$17,666.42	1
002	8578001	RETAINER RING	8578001 RETAINER RING ANELLO RITEGNO	$6.61	2
003	8524010	BEARING	8524010 BEARING CUSCINETTO	-	1	Enquire
004	2424859	RING	2424859 RING ANELLO	$23.65	1
005	8584001	RETAINER RING	8584001 RETAINER RING ANELLO RITEGNO	$8.57 MSRP: ~~8.90~~ (3.7% off)	1
006	2424864	WASHER	2424864 WASHER DISTANZIALE	$188.17	2
007	2424889	GEAR	2424889 GEAR INGRANAGGIO 4 - MARCIA	$406.96	1
008	8524701	ROLLER CAGE	8524701 ROLLER CAGE GABBIAARULLI	$47.83 MSRP: ~~50.10~~ (4.5% off)	2
009	2420124	SPLINED BUSHING	2420124 SPLINED BUSHING BOCCOLA DENTATA	$508.06	2
010	2424873	GEAR	2424873 GEAR INGRANAGGIO 3 - MARCIA	$255.59 MSRP: ~~259.00~~ (1.3% off)	1
011	2427097	GEAR	2427097 GEAR INGRANAGGIO 2 - MARCIA	$251.24 MSRP: ~~254.00~~ (1.1% off)	1
012	2431824	NUT	2431824 NUT GHIERA	$269.25	1
013	8503006	BEARING	8503006 BEARING CUSCINETTO	$694.79	1
014	2424861	SPACER	2424861 SPACER DISTANZIALE	$146.92	1
015	2426702	GEAR	2426702 GEAR INGRANAGGIO 5 - MARCIA	$2,363.51	1
016	2421420	BRAKE PAD	2421420 BRAKE PAD PATTING	$29.70	3
017	2421419	PIN	2421419 PIN PERNO	$34.81	3
018	2421418	SPRING	2421418 SPRING MOLLA	$67.60	3
019	2421416	FRICTION RING	2421416 FRICTION RING ANELLO SINCRONIZZATORE	$1,527.07	2
020	2425150	SLEEVE T/OBEARING	2425150 SLEEVE T/OBEARING ANELLO INNESTO	$1,383.39	1
021	2420126	SYNCHRONIZER	2420126 SYNCHRONIZER CORPO SINCRONIZZATORE	$326.31	1
