Driven Shaft of Lamborghini Lamborghini Diablo (1990-1998)

View All

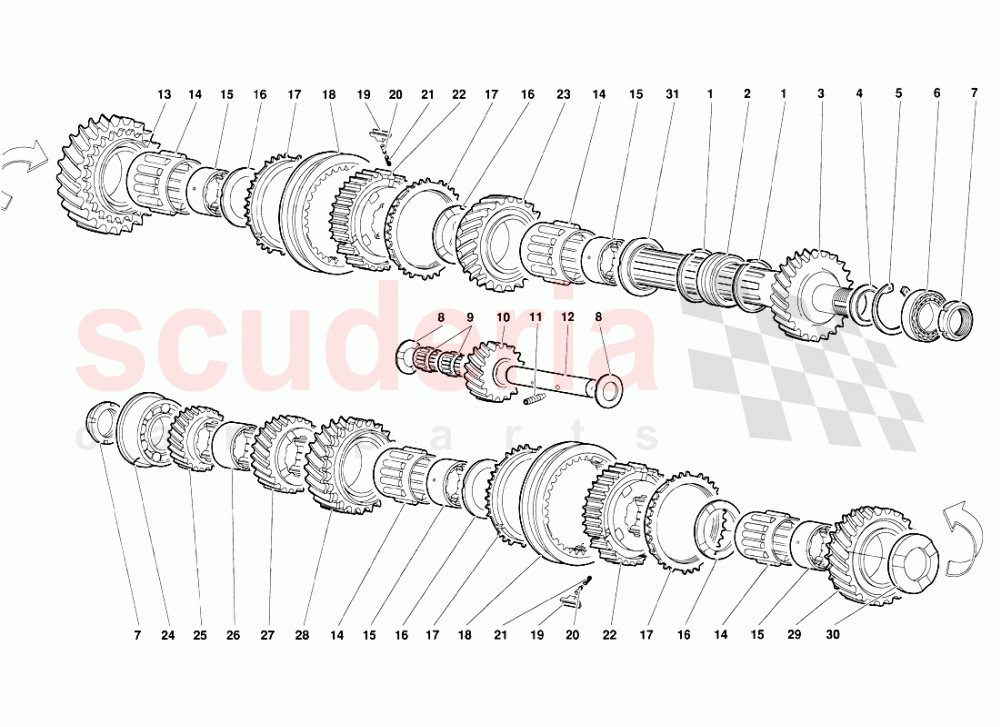

Lamborghini Diablo (1990-1998) - Driven Shaft

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8576201	RETAINER RING	8576201 RETAINER RING ANELLO RITEGNO	-	2	Enquire
002	8524011	BEARING	8524011 BEARING CUSCINETTO	-	1	Enquire
003	2424915	COUNTERSHAFT	2424915 COUNTERSHAFT ALBERO SECONDARIO	-	1	Enquire
004	2431352	SPACER	2431352 SPACER SPESSORE	-	1	Enquire
005	8576601	RETAINER RING	8576601 RETAINER RING ANELLO RITEGNO	-	1	Enquire
006	8523009	BEARING	8523009 BEARING CUSCINETTO	-	1	Enquire
007	2431824	NUT	2431824 NUT GHIERA	-	2	Enquire
008	2424862	WASHER	2424862 WASHER SPESSORE	-	2	Enquire
009	8522008	ROLLER CAGE	8522008 ROLLER CAGE GABBIAARULLI	-	2	Enquire
010	2424869	GEAR	2424869 GEAR INGRANAGGIO R.M.	-	1	Enquire
011	8700649	SCREW	8700649 SCREW VITE	-	1	Enquire
012	2424865	SMALL SHAFT	2424865 SMALL SHAFT ALBERO R.M.	-	1	Enquire
013	2424886	GEAR	2424886 GEAR INGRANAGGIO 1 - MARCIA	-	1	Enquire
014	8524701	ROLLER CAGE	8524701 ROLLER CAGE GABBIAARULLI	-	4	Enquire
015	2420124	SPLINED BUSHING	2420124 SPLINED BUSHING BOCCOLA DENTATA	-	4	Enquire
016	2424864	WASHER	2424864 WASHER SPESSORE	-	4	Enquire
017	2421416	FRICTION RING	2421416 FRICTION RING ANELLO SINCRONIZZATORB	-	4	Enquire
018	2425150	SLEEVE T/OBEARING	2425150 SLEEVE T/OBEARING MANICOTTO DISINNESTO	-	2	Enquire
019	2421420	BRAKE PAD	2421420 BRAKE PAD PATTING	-	6	Enquire
020	2421419	PIN	2421419 PIN PERNO	-	6	Enquire
021	2421418	SPRING	2421418 SPRING MOLLA	-	6	Enquire
022	2420126	SYNCHRONIZER	2420126 SYNCHRONIZER CORPO SINCRONIZZATORE	-	2	Enquire
023	2424891	GEAR	2424891 GEAR INGRANAGGIO R.M.	-	1	Enquire
024	8503006	BEARING	8503006 BEARING CUSCINETTO	-	1	Enquire
025	2426685	GEAR	2426685 GEAR INGRANAGGIO 5 - MARCIA	-	1	Enquire
026	2424866	SPLINED BUSHING	2424866 SPLINED BUSHING BOCCOLA DENTATA	-	1	Enquire
027	2424872	GEAR	2424872 GEAR INGRANAGGIO 4 - MARCIA	-	1	Enquire
028	2424888	GEAR	2424888 GEAR INGRANAGGIO 3 - MARCIA	-	1	Enquire
029	2427098	GEAR	2427098 GEAR INGRANAGGIO 2 - MARCIA	-	1	Enquire
030	2424863	WASHER	2424863 WASHER DISTANZIALE	-	1	Enquire
031	2424860	SHIM	2424860 SHIM SPESSORE	-	1	Enquire
