Differential (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

Lamborghini Diablo (1990-1998) - Differential (Valid for June 1992 Version)

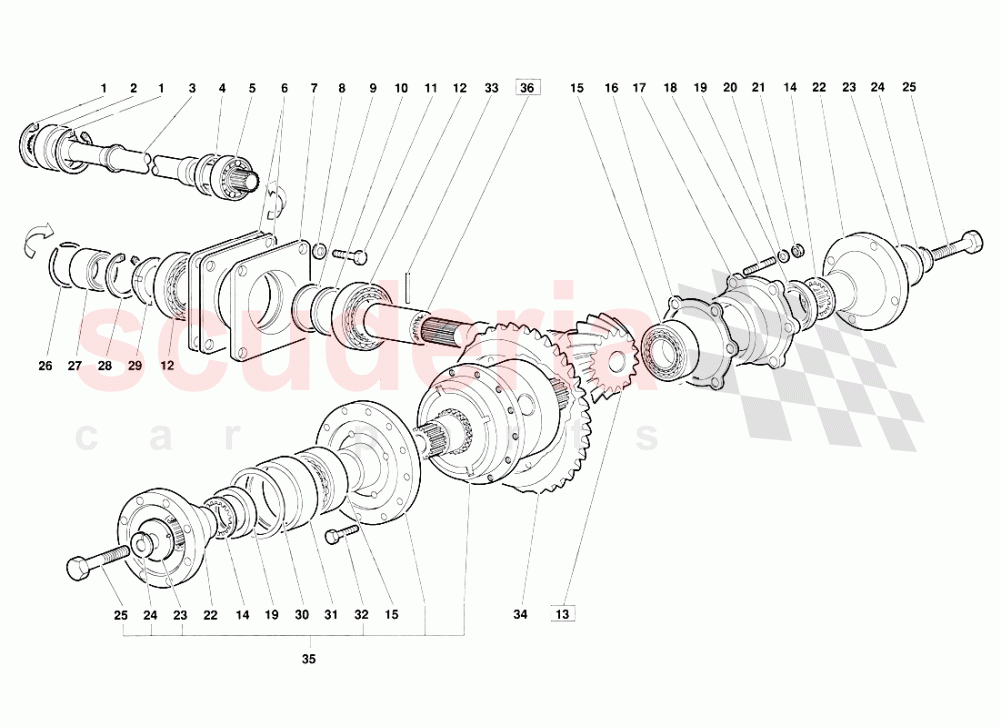

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8575501	RETAINING RING	8575501 RETAINING RING (Valid for June 1992 version) ANELLO RITEGNO	-	2	Enquire
002	410103520	BEARING	410103520 BEARING (Valid for June 1992 version) CUSCINETTO	-	1	Enquire
003	2331406	PROPELLER SHAFT	2331406 PROPELLER SHAFT (Valid for June 1992 version) ALBERO DI TRASMISSIONE	-	1	Enquire
004	8613508	SEAL	8613508 SEAL (Valid for June 1992 version) ANELLO TENUTA	-	1	Enquire
005	8503010	BEARING	8503010 BEARING (Valid for June 1992 version) CUSCINETTO	-	1	Enquire
006	2324939	SHIM	2324939 SHIM (Valid for June 1992 version)SPESSORE DI REGISTRO	-	1	Enquire
007	2324938	FLANGE	2324938 FLANGE (Valid for June 1992 version) FLANGIA PORTACUSCINETTI	-	1	Enquire
008	8410815	WASHER	8410815 WASHER (Valid for June 1992 version) RONDELLA	-	4	Enquire
009	2330696	SHIM	2330696 SHIM (Valid for June 1992 version) SPESSORE DI REGISTRO 0.2 MM	-	1	Enquire
009	2330697	SHIM	2330697 SHIM (Valid for June 1992 version) SPESSORE DI REGISTRO 0.15 MM	-	1	Enquire
009	2330695	SHIM	2330695 SHIM (Valid for June 1992 version) SPESSORE DI REGISTRO 0.25 MM	-	1	Enquire
009	2330693	SHIM	2330693 SHIM (Valid for June 1992 version) SPESSORE DI REGISTRO 0.5 MM	-	1	Enquire
009	2330694	SHIM	2330694 SHIM (Valid for June 1992 version) SPESSORE DI REGISTRO 0.3 MM	-	1	Enquire
010	2328764	SPACER	2328764 SPACER (Valid for June 1992 version) DISTANZIALE	-	1	Enquire
011	8100803	SCREW M8X1,25X25	8100803 SCREW M8X1,25X25 (Valid for June 1992 version) VITE	-	4	Enquire
012	8545004	BEARING	8545004 BEARING (Valid for June 1992 version) CUSCINETTO	-	2	Enquire
013	2333371	PINION	2333371 PINION (Valid for June 1992 version) PIGNONE (dalla 12728 intercambiabile) (Per esigenze di lavorazione questo particolare e fornito assieme alia corona 002324937)	-	1	Enquire
013	2326586	PINION	2326586 PINION (Valid for June 1992 version) PIGNONE CON GIUNZIONE (fino 12727)	-	1	Enquire
014	2325117	THRUST PLATE	2325117 THRUST PLATE (Valid for June 1992 version) RALLA	-	2	Enquire
015	8545002	BEARING	8545002 BEARING (Valid for June 1992 version) CUSCINETTO	-	2	Enquire
016	2324942	SHIM	2324942 SHIM (Valid for June 1992 version) SPESSORE DI REGISTRO	-	1	Enquire
017	2324452	FLANGE	2324452 FLANGE (Valid for June 1992 version) FLANGIA PORTA CUSCINETTO	-	1	Enquire
018	8301032	STUD	8301032 STUD (Valid for June 1992 version) PRIGIONIERO	-	6	Enquire
019	8614507	SEAL	8614507 SEAL (Valid for June 1992 version) ANELLO TENUTA	-	2	Enquire
020	WHT000768	WASHER	WHT000768 WASHER	-	6	Enquire
021	N10155210	NUT	N10155210 NUT (Valid for June 1992 version) DADO	-	6	Enquire
022	2331911	HUB	2331911 HUB (Valid for June 1992 version) MOZZO PORTA SEMIASSE	-	2	Enquire
023	2332653	WASHER	2332653 WASHER (Valid for June 1992 version) RONDELLA	-	2	Enquire
024	2332652	WASHER	2332652 WASHER (Valid for June 1992 version) RONDELLA	-	2	Enquire
025	2332651	SCREW	2332651 SCREW (Valid for June 1992 version) VITE	-	1	Enquire
026	8583502	RETAINER RING	8583502 RETAINER RING (Valid for June 1992 version) ANELLO RITEGNO	-	1	Enquire
027	8523514	BEARING	8523514 BEARING (Valid for June 1992 version) CUSCINETTO A RULLINI	-	1	Enquire
028	8575000	RETAINER RING	8575000 RETAINER RING (Valid for June 1992 version) ANELLO RITEGNO	-	1	Enquire
029	8254503	PLUG	8254503 PLUG (Valid for June 1992 version) GHIERA	-	1	Enquire
030	2331921	SHIM	2331921 SHIM (Valid for June 1992 version) SPESSORE Dl REGISTRO	-	1	Enquire
030	2331920	SHIM	2331920 SHIM (Valid for June 1992 version) SPESSORE Dl REGISTRO	-	1	Enquire
030	2331919	SHIM	2331919 SHIM (Valid for June 1992 version) SPESSORE Dl REGISTRO	-	1	Enquire
030	2331918	SHIM	2331918 SHIM (Valid for June 1992 version) SPESSORE DI REGISTRO	-	1	Enquire
030	2331917	SHIM	2331917 SHIM (Valid for June 1992 version) SPESSORE DI REGISTRO	-	1	Enquire
031	2324940	BEARING CASE	2324940 BEARING CASE (Valid for June 1992 version) ANELLO PORTACUSCINETTO	-	1	Enquire
032	2332650	SCREW	2332650 SCREW (Valid for June 1992 version) VITE	-	1	Enquire
033	8900503	PIN - SPINA	8900503 PIN - SPINA (Valid for June 1992 version) SA	-	1	Enquire
034	2324937	CROWN	2324937 CROWN (Valid for June 1992 version) CORONA (Per esigenze di lavorazione questo particolare e fornito assieme al pignone 002333371)	-	1	Enquire
035	2332210	KIT DIFFERENTIAL	2332210 KIT DIFFERENTIAL (Valid for June 1992 version) COMPLESSIVO DIFFERENZIALE	-	1	Enquire
036	2324935	RIGID SLEEVE	2324935 RIGID SLEEVE (Valid for June 1992 version) GIUNZIONE (particolare fornito ora singolarmente)	-	1	Enquire
