Gearbox (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

Lamborghini Diablo (1990-1998) - Gearbox (Valid for June 1992 Version)

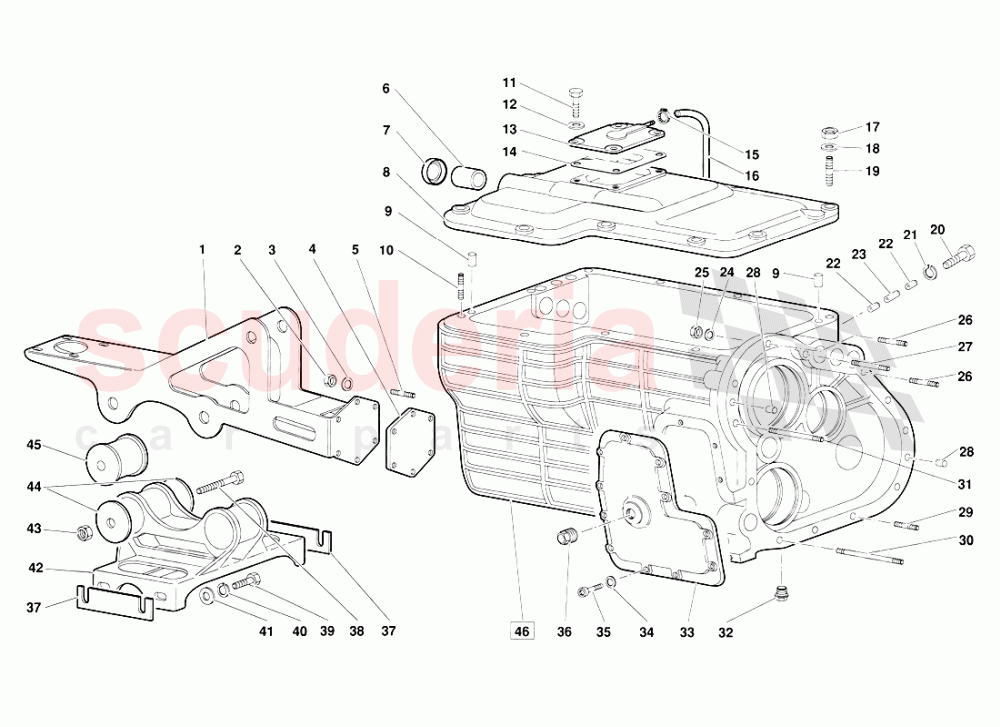

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2431479	SUPPORT - SUPPORTO	2431479 SUPPORT - SUPPORTO (Valid for June 1992 version) O TORRETTA	-	1	Enquire
002	N01100637	NUT M6	N01100637 NUT M6 (Valid for June 1992 version) DADO	-	6	Enquire
003	8410602	WASHER	8410602 WASHER (Valid for June 1992 version) RONDELLA	-	6	Enquire
004	2425638	COVER	2425638 COVER (Valid for June 1992 version) COPERCHIO	-	1	Enquire
005	8300602	STUD	8300602 STUD (Valid for June 1992 version) PRIGIONIERO	-	6	Enquire
006	8801612	BUSHING	8801612 BUSHING (Valid for June 1992 version) BOCCOLA	-	1	Enquire
007	8611605	SEAL	8611605 SEAL (Valid for June 1992 version) ANELLO TENUTA	-	1	Enquire
008	2424900	COVER	2424900 COVER (Valid for June 1992 version) COPERCHIO SUPERIORE	-	1	Enquire
009	8850806	DOWEL	8850806 DOWEL (Valid for June 1992 version) GRAND	-	2	Enquire
010	8300862	STUD	8300862 STUD (Valid for June 1992 version) PRIGIONIERO	-	1	Enquire
011	8100604	SCREW	8100604 SCREW (Valid for June 1992 version) VITE	-	4	Enquire
012	8410602	WASHER	8410602 WASHER (Valid for June 1992 version) RONDELLA	-	4	Enquire
013	2428645	COVER	2428645 COVER (Valid for June 1992 version) COPERCHIO SFIATO	-	1	Enquire
014	2428643	PAN	2428643 PAN (Valid for June 1992 version) VASCHETTA	-	4	Enquire
015	8830204	Clamp ring	8830204 Clamp ring (Valid for June 1992 version) FASCETTA	-	1	Enquire
016	2428649	VENT PIPE	2428649 VENT PIPE (Valid for June 1992 version) TUBO Dl SFIATO	-	1	Enquire
017	8200806	NUT	8200806 NUT (Valid for June 1992 version) DADO	-	10	Enquire
018	WHT001514	WASHER	WHT001514 WASHER (Valid for June 1992 version) RONDELLA	-	10	Enquire
019	8300825	STUD BOLT	8300825 STUD BOLT (Valid for June 1992 version) PRIGIONIERO	-	9	Enquire
020	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545) (Valid for June 1992 version) VITE	-	1	Enquire
021	8400802	WASHER	8400802 WASHER (Valid for June 1992 version) RONDELLA	-	1	Enquire
022	2425223	ROD	2425223 ROD (Valid for June 1992 version) PUNTALINO	-	2	Enquire
023	2425224	ROD	2425224 ROD (Valid for June 1992 version) PUNTALINO	-	1	Enquire
024	WHT001514	WASHER	WHT001514 WASHER (Valid for June 1992 version) RONDELLA	-	12	Enquire
025	8200806	NUT	8200806 NUT (Valid for June 1992 version) DADO	-	12	Enquire
026	8300894	STUD	8300894 STUD (Valid for June 1992 version) PRIGIONIERO	-	2	Enquire
027	8300889	STUD	8300889 STUD (Valid for June 1992 version) PRIGIONIERO	-	1	Enquire
028	8850806	DOWEL	8850806 DOWEL (Valid for June 1992 version) GRANO	-	2	Enquire
029	8300892	STUD	8300892 STUD (Valid for June 1992 version) PRIGIONIERO	-	7	Enquire
030	8300896	STUD BOLT	8300896 STUD BOLT (Valid for June 1992 version) PRIGIONIERO	-	1	Enquire
031	8300895	STUD	8300895 STUD (Valid for June 1992 version) PRIGIONIERO	-	1	Enquire
032	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG (Valid for June 1992 version) TAPPO MAGNETICO	-	1	Enquire
033	2428586	SIDE COVER	2428586 SIDE COVER (Valid for June 1992 version) COPERCHIO	-	1	Enquire
034	8410602	WASHER	8410602 WASHER (Valid for June 1992 version) RONDELLA	-	11	Enquire
035	8700614	SCREW	8700614 SCREW (Valid for June 1992 version) VITE	-	11	Enquire
036	8931802	MAGNETIC PLUG	8931802 MAGNETIC PLUG (Valid for June 1992 version) TAPPO	-	1	Enquire
037	4126766	SPACER	4126766 SPACER (Valid for June 1992 version) SPESSORE Dl REGISTRO	-	5	Enquire
038	8101430	SCREW	8101430 SCREW (Valid for June 1992 version) VITE	-	2	Enquire
039	N01033520	SCREW M8X35	N01033520 SCREW M8X35 (Valid for June 1992 version) VITE	-	4	Enquire
040	N0152785	WASHER	N0152785 WASHER (Valid for June 1992 version) RONDELLA	-	4	Enquire
041	N0122094	WASHER	N0122094 WASHER (Valid for June 1992 version) RONDELLA	-	4	Enquire
042	4131478	SUPPORT - SUPPORTO	4131478 SUPPORT - SUPPORTO (Valid for June 1992 version) O INFERIORE CAMBIO	-	1	Enquire
043	8201416	NUT	8201416 NUT (Valid for June 1992 version) DADO	-	4	Enquire
044	4130884	WASHER	4130884 WASHER (Valid for June 1992 version) DISTANZIALE	-	4	Enquire
045	B9501144	support mount	B9501144 support mount	-	2	Enquire
046	2429421	GEARBOX CASE	2429421 GEARBOX CASE (Valid for June 1992 version) SCATOLA CAMBIO (Errata corrige)	-	1	Enquire
