Lamborghini Diablo (1990-1998) - Gearbox Control Tower (Valid for June 1992 Version)

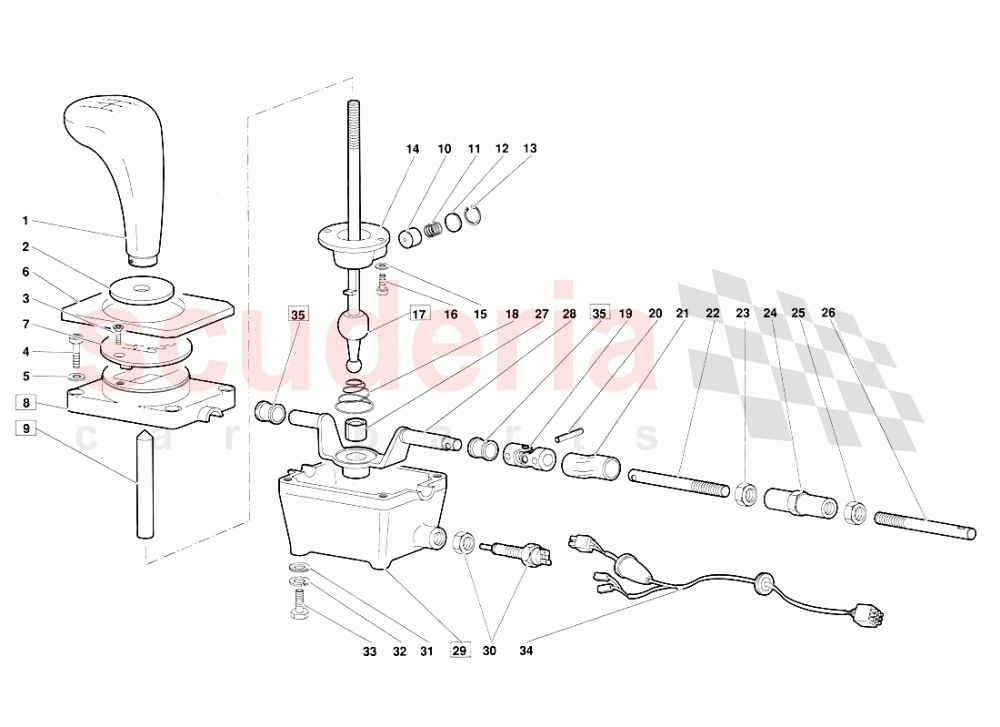

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2428311	KNOB	2428311 KNOB (Valid for June 1992 version) POMELLO	-	1	Enquire
002	2431969	RUBBER RING	2431969 RUBBER RING (Valid for June 1992 version) RONDELLA IN GOMMA	-	1	Enquire
003	8740613	SCREW	8740613 SCREW (Valid for June 1992 version) VITE	-	2	Enquire
004	8700804	SCREW	8700804 SCREW (Valid for June 1992 version) VITE	-	4	Enquire
005	WHT000771	WASHER	WHT000771 WASHER (Valid for June 1992 version) RONDELLA	-	4	Enquire
006	2431785	FLEX PAD	2431785 FLEX PAD (Valid for June 1992 version) SPESSORE IN GOMMA	-	1	Enquire
007	2431668	PLATE	2431668 PLATE (Valid for June 1992 version) PIASTRA DISELEZIONE	-	1	Enquire
008	2427198	COVER	2427198 COVER (Valid for June 1992 version) COPERCHIO (fino 12525)	-	1	Enquire
008	2433019	COVER	2433019 COVER (Valid for June 1992 version) COPERCHIO (dalla 12526) (Per esigenze di lavorazione questo particolare e fornito assieme alia scatola 002433018)	-	1	Enquire
009	2432932	ADAPTER KNOB	2432932 ADAPTER KNOB (Valid for June 1992 version) ADATTATORE POMELLO (dalla 12526)	-	1	Enquire
009	2428889	ADAPTER KNOB	2428889 ADAPTER KNOB (Valid for June 1992 version) ADATTATORE POMELLO (fino 12525)	-	1	Enquire
010	2427202	CYLINDER	2427202 CYLINDER (Valid for June 1992 version) CILINDRO	-	1	Enquire
011	2432167	SPRING	2432167 SPRING (Valid for June 1992 version) MOLLA	-	1	Enquire
012	2427204	PLUG	2427204 PLUG (Valid for June 1992 version) TAPPO	-	1	Enquire
013	8572201	RETAINER RING	8572201 RETAINER RING (Valid for June 1992 version) ANELLO RITEGNO	-	1	Enquire
014	2427199	BALL SOCKFT	2427199 BALL SOCKFT (Valid for June 1992 version) SEDESFERICA	-	1	Enquire
015	8410602	WASHER	8410602 WASHER (Valid for June 1992 version) RONDELLA	-	2	Enquire
016	8700646	SCREW	8700646 SCREW (Valid for June 1992 version) VITE	-	2	Enquire
017	2431667	LEVER	2431667 LEVER LEVA SELEZIONE MARGE (fino 12327)	-	1	Enquire
017	2433014	LEVER	2433014 LEVER (Valid for June 1992 version) LEVA SELEZIONE MARGE (dalla 12328) (Particolare intercambiabile)	-	1	Enquire
018	2429160	SPRING	2429160 SPRING (Valid for June 1992 version) MOLLA	-	1	Enquire
019	2427208	UNIVERSAL JOINT	2427208 UNIVERSAL JOINT (Valid for June 1992 version) GIUNTO CARDANICO	-	1	Enquire
020	8900501	PIN - SPINA	8900501 PIN - SPINA (Valid for June 1992 version) SA	-	2	Enquire
021	2432117	LINER	2432117 LINER (Valid for June 1992 version) GUAINA IN GOMMA	-	1	Enquire
022	2430846	ROD	2430846 ROD (Valid for June 1992 version) ASIA	-	1	Enquire
023	8201223	NUT	8201223 NUT (Valid for June 1992 version) DADO	-	1	Enquire
024	2429793	TIE ROD	2429793 TIE ROD (Valid for June 1992 version) TIRANTE	-	1	Enquire
025	8201224	NUT	8201224 NUT (Valid for June 1992 version) DADO	-	1	Enquire
026	2430847	ROD	2430847 ROD (Valid for June 1992 version) ASIA	-	1	Enquire
027	2427207	BUSHING	2427207 BUSHING (Valid for June 1992 version) BOCCOLA	-	1	Enquire
028	2429161	SHAFT	2429161 SHAFT (Valid for June 1992 version) ALBERO	-	1	Enquire
029	2427197	CASE	2427197 CASE (Valid for June 1992 version) SCATOLA (fino 12525)	-	1	Enquire
029	2433018	CASE	2433018 CASE (Valid for June 1992 version) SCATOLA (dalla 12526) (Per esigenze di lavorazione questo particolare e fornito assieme al coperchio 002433019)	-	1	Enquire
030	2408637	SWITCH	2408637 SWITCH (Valid for June 1992 version) INTERRUTTORE RETROMARCIA	-	1	Enquire
031	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5 (Valid for June 1992 version) RONDELLA	-	4	Enquire
032	8410817	WASHER	8410817 WASHER (Valid for June 1992 version) RONDELLA	-	4	Enquire
033	8100840	SCREW	8100840 SCREW (Valid for June 1992 version) VITE	-	4	Enquire
034	6130717	ELECT CABLE	6130717 ELECT CABLE (Valid for June 1992 version) CABLAGGIO INTERRUTTORE R.M.	-	1	Enquire
035	2433020	BUSHING	2433020 BUSHING (Valid for June 1992 version) BOCCOLA (dalla 12526) (Particolare compatibile solamente con la scatola 002433018 e il coperchio 002433019)	-	2	Enquire
