Lamborghini Diablo (1990-1998) - Climate Control (Valid for June 1992 Version) 2

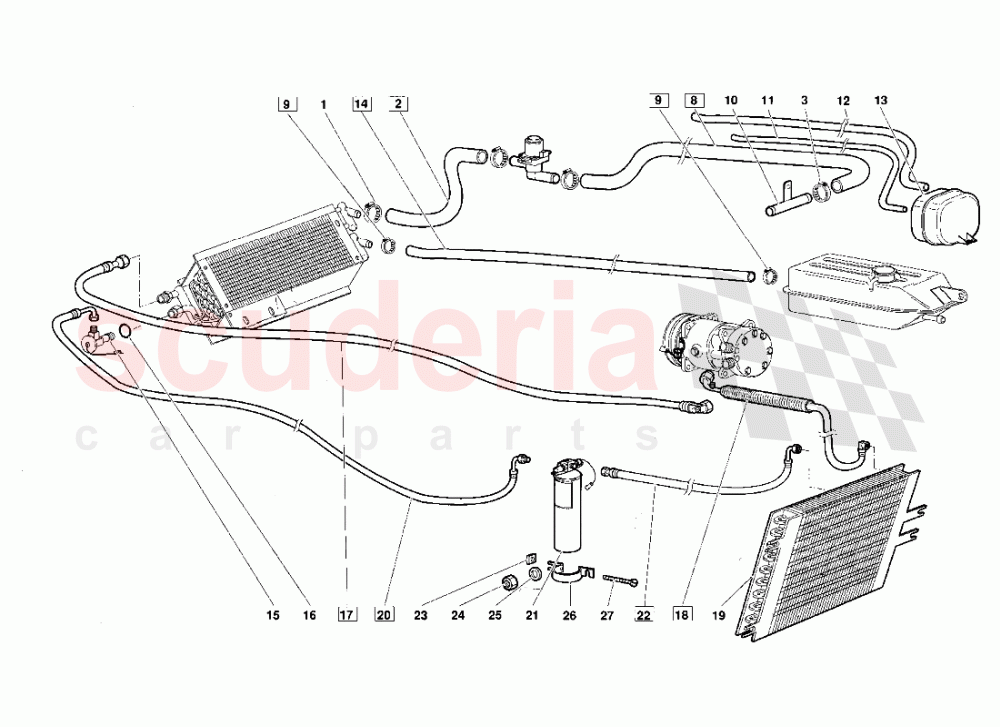

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8832602	STRAP	8832602 STRAP (Valid for June 1992 version) FASCETTA	$2.23	2
002	4731889	PIPE	4731889 PIPE (Valid for June 1992 version) TUBO (fino 12522)	$89.34	1
002	4732715	PIPE	4732715 PIPE (Valid for June 1992 version) TUBO(dalla 12523)	$207.81	1
003	8832204	CLAMP	8832204 CLAMP (Valid for June 1992 version) FASCETTA	$16.70	2
004	6031658	ELECTRO-VALVE	6031658 ELECTRO-VALVE (Valid for June 1992 version) ELETTROVALVOLA	$203.38	1
005	8610902	RUBBER RING	8610902 RUBBER RING (Valid for June 1992 version) ANELLO GOMMA	$7.93	2
006	N01152427	WASHER IN STOCK	N01152427 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$0.28	2
007	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING (Valid for June 1992 version) DADO IN STOCK	$2.04	2
008	4730073	PIPE	4730073 PIPE (Valid for June 1992 version) TUBO (fino 12522)	$388.34	1
008	4732716	PIPE	4732716 PIPE (Valid for June 1992 version) TUBO (dalla 12523)	$209.09	1
009	8832003	CLAMP IN STOCK	8832003 CLAMP (Valid for June 1992 version) FASCETTA (fino 12522) IN STOCK	$44.10	2
009	8831524	STRAP	8831524 STRAP (Valid for June 1992 version) FASCETTA (dalla 12523)	-	2	Enquire
010	1730064	CONNECTION	1730064 CONNECTION (Valid for June 1992 version) RACCORDO	$23.61 MSRP: ~~23.90~~ (1.2% off)	1
011	9414600	PIPE	9414600 PIPE (Valid for June 1992 version) TUBO	$38.84	1
012	6231411	PIPE	6231411 PIPE (Valid for June 1992 version) TUBO	$12.42 MSRP: ~~12.60~~ (1.4% off)	1
013	1323406	VACUUM TANK	1323406 VACUUM TANK (Valid for June 1992 version) SERBATOIO A DEPRESSIONE	$45.48	1
014	1730071	PIPE	1730071 PIPE (Valid for June 1992 version) TUBO (fino 12522)	-	1	Enquire
014	1733231	PIPE	1733231 PIPE (Valid for June 1992 version) TUBO (dalla 12523)	$211.35	1
015	4530261	VALVE	4530261 VALVE (Valid for June 1992 version) VALVOLA Dl ESPANSIONE	$321.35	1
016	8601103	SEAL	8601103 SEAL (Valid for June 1992 version) ANELLO TENUTA	$10.55	1
017	4533881	PIPE	4533881 PIPE (Valid for June 1992 version) TUBO (sostituisce il 004530167) (Particolare intercambiabile)	-	1	Enquire
018	4533978	PIPE	4533978 PIPE (Valid for June 1992 version) TUBO (sostituisce il 004530164) (Particolare intercambiabile)	-	1	Enquire
019	4531594	A/C CONDENSER	4531594 A/C CONDENSER (Valid for June 1992 version) CONDENSATORE CONDIZIONATORE	$387.94	1
020	4533880	PIPE	4533880 PIPE (Valid for June 1992 version) TUBO (sostituisce il 004530166) (Particolare intercambiabile)	-	1	Enquire
021	4535411	FILTER	4535411 FILTER FILTRO DEIDRATORE	$380.71	1
022	4533879	PIPE	4533879 PIPE (Valid for June 1992 version) TUBO (sostituisce 004530165) (Particolare intercambiabile)	-	1	Enquire
023	8200580	NUT	8200580 NUT (Valid for June 1992 version) DADO	-	1	Enquire
024	N0111849	NUT IN STOCK	N0111849 NUT (Valid for June 1992 version) DADO IN STOCK	$2.15 MSRP: ~~7.25~~ (70.3% off)	2
025	N0122094	WASHER IN STOCK	N0122094 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$1.47 MSRP: ~~7.15~~ (79.4% off)	2
026	4531395	STRAP	4531395 STRAP (Valid for June 1992 version) FASCETTA	$8.96 MSRP: ~~9.30~~ (3.7% off)	1
027	8700542	SCREW	8700542 SCREW (Valid for June 1992 version) VITE	$0.68 MSRP: ~~7.26~~ (90.6% off)	1
