Climate Control of Lamborghini Lamborghini Diablo (1990-1998)

View All

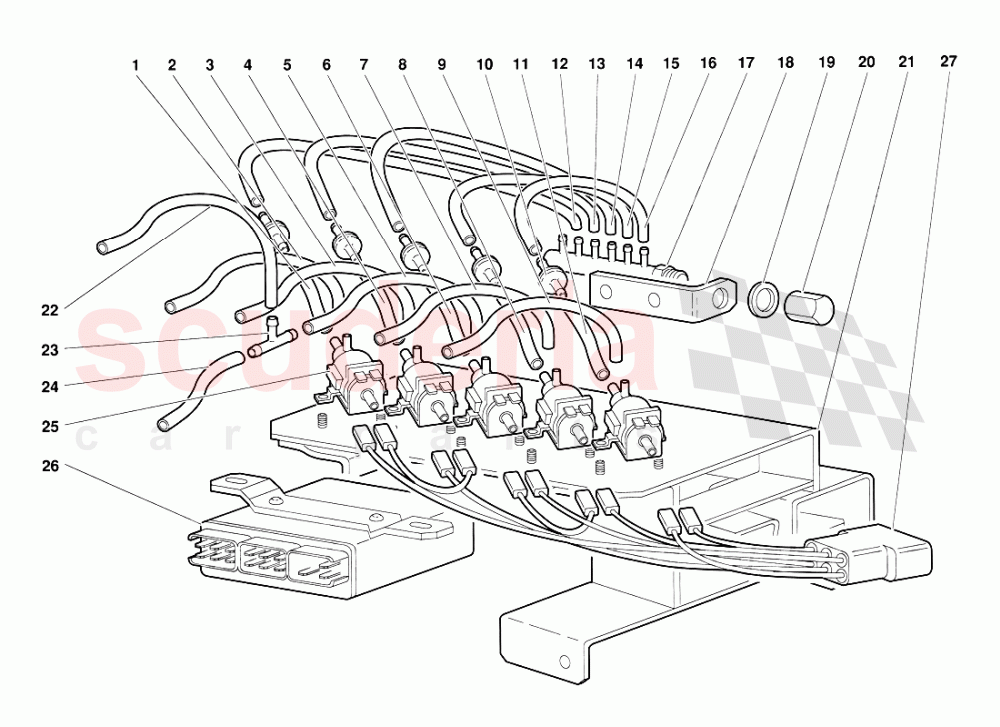

Lamborghini Diablo (1990-1998) - Climate Control

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9414612	RED PIPE	9414612 RED PIPE TUBO (ROSSO)	-	1	Enquire
002	9414613	RED PIPE	9414613 RED PIPE TUBO (ROSSO)	-	1	Enquire
003	9414614	GREEN PIPE	9414614 GREEN PIPE TUBO (VERDE)	-	1	Enquire
004	9414611	GREEN PIPE	9414611 GREEN PIPE TUBO (VERDE)	-	1	Enquire
005	9414615	BLUE PIPE	9414615 BLUE PIPE TUBO (BLU)	-	1	Enquire
006	9414610	BLUE PIPE	9414610 BLUE PIPE TUBO (BLU)	-	1	Enquire
007	9414616	WHITE PIPE	9414616 WHITE PIPE TUBO (BIANCO)	-	1	Enquire
008	9414609	WHITE PIPE	9414609 WHITE PIPE TUBO (BIANCO)	-	1	Enquire
009	9414617	BLACK PIPE	9414617 BLACK PIPE TUBO (NERO)	-	1	Enquire
010	4621574	VALVE	4621574 VALVE VALVOLA Dl NON RITQPWO	-	5	Enquire
011	9414608	BLACK PIPE	9414608 BLACK PIPE TUBO (NERO)	-	1	Enquire
012	9414601	RED PIPE	9414601 RED PIPE TUBO (ROSSO)	-	1	Enquire
013	9414602	GREEN PIPE	9414602 GREEN PIPE TUBO (VERDE)	-	1	Enquire
014	9414604	BLUE PIPE	9414604 BLUE PIPE TUBO (BLU)	-	1	Enquire
015	9414603	WHITE PIPE	9414603 WHITE PIPE TUBO (BIANCO)	-	1	Enquire
016	9414605	BLACK PIPE	9414605 BLACK PIPE TUBO (NERO)	-	1	Enquire
017	4621565	CONNECTION	4621565 CONNECTION TUBO DEL VUOTO A SEI USCITE	-	1	Enquire
018	4621570	PLATE	4621570 PLATE PIASTRA	-	1	Enquire
019	8401008	WASHER	8401008 WASHER RONDELLA	-	1	Enquire
020	9414606	PLUG	9414606 PLUG TAPPO	-	1	Enquire
021	9414628	PLATE	9414628 PLATE PIASTRA	-	1	Enquire
022	9414620	BLUE PIPE	9414620 BLUE PIPE TUBO	-	1	Enquire
023	7014169	T UNION	7014169 T UNION RACCORDOATREVIE	-	1	Enquire
024	9414621	BLUE PIPE	9414621 BLUE PIPE TUBO	-	1	Enquire
025	77906283	SOLENOID VALVE	77906283 SOLENOID VALVE ELETTROVALVOLA	-	5	Enquire
026	4526659	ELECTRONIC CONT. U.	4526659 ELECTRONIC CONT. U. CENTRALINA IMPIANTO CLIMATIZZ.	-	1	Enquire
027	6130618	ELECT CABLE	6130618 ELECT CABLE CABLAGGIO	-	1	Enquire
