Engine Oil System (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

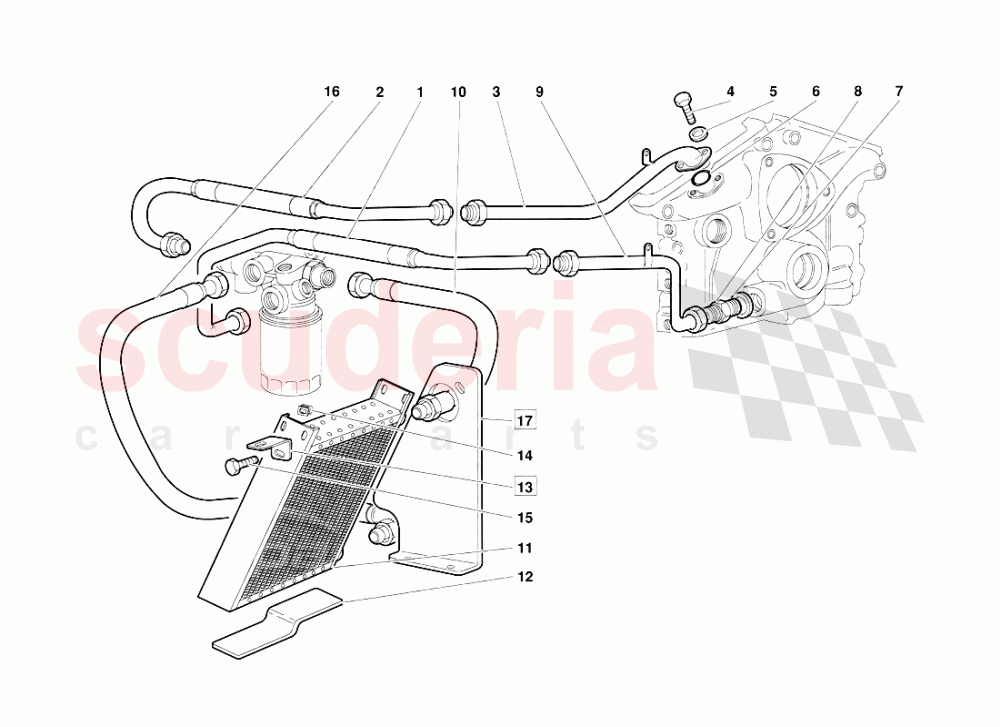

Lamborghini Diablo (1990-1998) - Engine Oil System (Valid for June 1992 Version)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1531858	FLEX. HOSE	1531858 FLEX. HOSE (Valid for June 1992 version) TUBO FLESSIBILE	-	1	Enquire
002	1531828	FLEX. HOSE	1531828 FLEX. HOSE (Valid for June 1992 version) TUBO FLESSIBILE	-	1	Enquire
003	1531859	PIPE	1531859 PIPE (Valid for June 1992 version) TUBO	-	1	Enquire
004	8100830	SCREW	8100830 SCREW (Valid for June 1992 version) VITE	-	2	Enquire
005	N0152785	WASHER	N0152785 WASHER (Valid for June 1992 version) RONDELLA	-	2	Enquire
006	WHT003062	SEAL RING	WHT003062 SEAL RING (Valid for June 1992 version) ANELLO TENUTA	-	1	Enquire
007	1529610	CONNECTION	1529610 CONNECTION (Valid for June 1992 version) RACCORDO	-	1	Enquire
008	8403006	WASHER	8403006 WASHER (Valid for June 1992 version) RONDELLA	-	1	Enquire
009	1531827	PIPE	1531827 PIPE (Valid for June 1992 version) TUBO	-	1	Enquire
010	1531830	PIPE	1531830 PIPE (Valid for June 1992 version) TUBO FLESSIBILE	-	1	Enquire
011	1530766	OIL RADIATOR	1530766 OIL RADIATOR (Valid for June 1992 version) RADIATORE OLIO	-	1	Enquire
012	1531195	INSULATOR	1531195 INSULATOR (Valid for June 1992 version) PROFILATO GOMMA	-	1	Enquire
013	1531541	BRACKET	1531541 BRACKET (Valid for June 1992 version) STAFFA (fino alia 1251 6)	-	1	Enquire
013	1533012	SUPPORT - (Valid for CANADA version - April 1994) SUPPORTO	1533012 SUPPORT - (Valid for CANADA version - April 1994) SUPPORTO (Valid for June 1992 version) STAFFA (dalla12517)	-	1	Enquire
014	N90327506	SPEED NUT	N90327506 SPEED NUT (Valid for June 1992 version) PIASTRINA CON FILETTATURA	-	1	Enquire
015	8700667	SCREW	8700667 SCREW (Valid for June 1992 version) VITE	-	1	Enquire
016	1531829	PIPE	1531829 PIPE (Valid for June 1992 version) TUBO FLESSIBILE	-	1	Enquire
017	9453119	SUPPORT - (Valid for CANADA version - April 1994) SUPPORTO	9453119 SUPPORT - (Valid for CANADA version - April 1994) SUPPORTO (Valid for June 1992 version) LAMIERA O RAEHATORE (dalla 12517 compatibile sulle vetture precedenti)	-	1	Enquire
