Radiator and Electro-Fans of Lamborghini Lamborghini Diablo (1990-1998)

View All

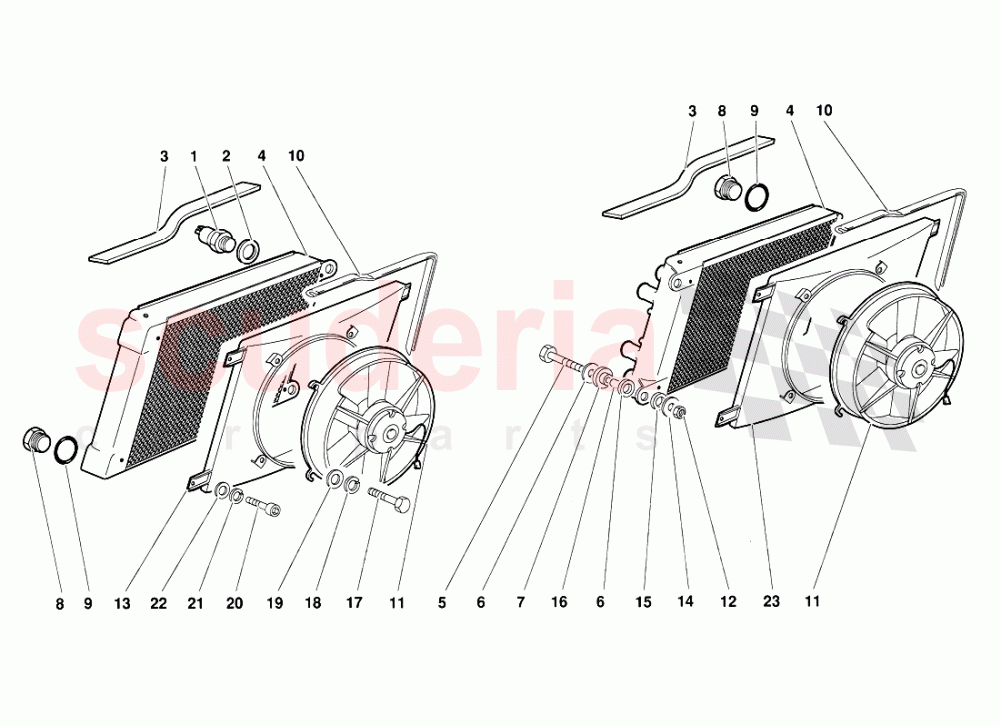

Lamborghini Diablo (1990-1998) - Radiator and Electro-Fans

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1724565	Fan Switch	1724565 Fan Switch INTERRUTTORE TERMOMETRICO	-	1	Enquire
002	8402202	WASHER	8402202 WASHER RONDELLA	-	1	Enquire
003	1731451	GASKET	1731451 GASKET GUARNIZIONE SP 15 MM	-	2	Enquire
003	1731452	GASKET	1731452 GASKET GUARNIZIONE SP 5 MM	-	2	Enquire
004	1731654	RADIATOR - RADIATORE	1731654 RADIATOR - RADIATORE	-	2	Enquire
005	8100813	SCREW	8100813 SCREW VITE	-	4	Enquire
006	WHT001942	WASHER	WHT001942 WASHER RONDELLA	-	8	Enquire
007	1701495	RUBBER RING	1701495 RUBBER RING BOCCOLA GOMMA	-	4	Enquire
008	8932202	PLUG	8932202 PLUG TAPPO	-	3	Enquire
009	8602002	SEAL	8602002 SEAL ANELLOTENUTA	-	3	Enquire
010	410121539	GASKET	410121539 GASKET PROFILATO GOMMA	-	2	Enquire
011	1731549	ELECTROFAN	1731549 ELECTROFAN ELETTROVENTILATORE	-	2	Enquire
012	8200809	NUT	8200809 NUT DADO	-	4	Enquire
013	410121333	LEFT CONVEYOR	410121333 LEFT CONVEYOR CONVOGLIATORE SINISTRO	-	1	Enquire
014	8400821	WASHER	8400821 WASHER RONDELLA	-	4	Enquire
015	WHT001189	PLASTIC WASHER	WHT001189 PLASTIC WASHER	-	4	Enquire
016	1701592	DOWEL	1701592 DOWEL GRAND	-	4	Enquire
017	8100502	SCREW	8100502 SCREW VITE	-	8	Enquire
018	8410502	WASHER	8410502 WASHER RONDELLA	-	8	Enquire
019	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	-	8	Enquire
020	8700614	SCREW	8700614 SCREW VITE	-	8	Enquire
021	8410611	WASHER	8410611 WASHER RONDELLA	-	8	Enquire
022	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	8	Enquire
023	410121334A	RH CONVEYOR	410121334A RH CONVEYOR CONVOGLIATORE DX	-	1	Enquire
