AIRBAG UNIT of Lamborghini Lamborghini Aventador LP770 SVJ Coupe

View All

Lamborghini Aventador LP770 SVJ Coupe - AIRBAG UNIT

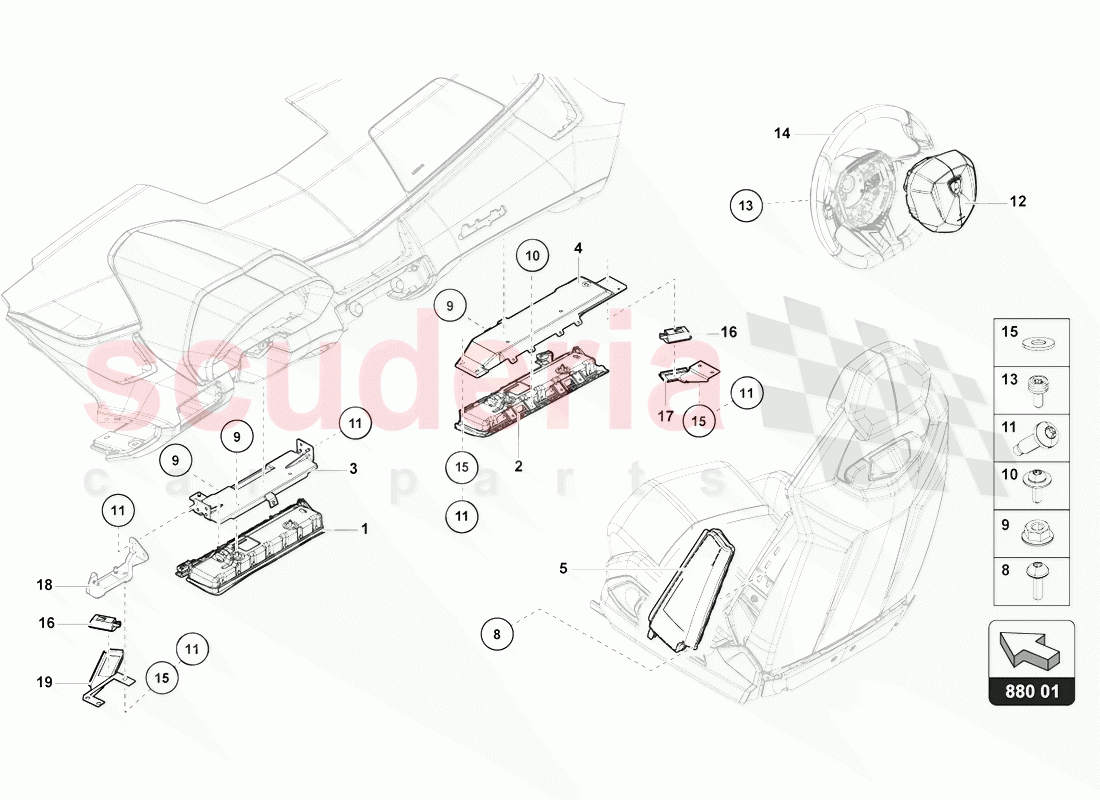

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8T0880841E	KNEE AIRBAG UNIT	Enquire	To Order
		KNEE AIRBAG UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8T0880842E	KNEE AIRBAG UNIT	Enquire	To Order
		KNEE AIRBAG UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	471858513C	ARM	Enquire	To Order
	471858513B	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	471858514A	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470880241A	SIDE AIRBAG UNIT	Enquire	To Order
	470880242A	SIDE AIRBAG UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10738101	HEX SOCKET HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10595002	ROUND HD. SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470880201C	AIRBAG UNIT FOR STEERING WHEEL	Enquire	To Order
	470880201E	AIRBAG UNIT FOR STEERING WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0419204B	SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		MULTIFUNCTION STEERING WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8J0947409B	LED LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	471858506	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		HOLDER FOR DIAGNOSIC PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	471858505	CARRIER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8T0880841E	KNEE AIRBAG UNIT	8T0880841E KNEE AIRBAG UNIT DRIVER SIDE - ONLY FOR NAR AND CHINA	-	1	Enquire
1	-	KNEE AIRBAG UNIT	KNEE AIRBAG UNIT ONLY FOR NAR AND CHINA MARKETS	-	-	Enquire
2	8T0880842E	KNEE AIRBAG UNIT	8T0880842E KNEE AIRBAG UNIT PASSENGER SIDE - ONLY FOR NAR AND CHINA	-	1	Enquire
2	-	KNEE AIRBAG UNIT	KNEE AIRBAG UNIT ONLY FOR NAR AND CHINA MARKETS	-	-	Enquire
3	471858513C	ARM	471858513C ARM LEFT LHD	-	1	Enquire
3	471858513B	ARM	471858513B ARM WITH KNEE AB-LEFT LHD	-	1	Enquire
4	471858514A	ARM	471858514A ARM LHD	-	1	Enquire
5	470880241A	SIDE AIRBAG UNIT	470880241A SIDE AIRBAG UNIT LEFT	-	1	Enquire
5	470880242A	SIDE AIRBAG UNIT	470880242A SIDE AIRBAG UNIT RIGHT	-	1	Enquire
8	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD M6X20	-	2	Enquire
9	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT M6	-	6	Enquire
10	N10738101	HEX SOCKET HEAD BOLT (COMBI)	N10738101 HEX SOCKET HEAD BOLT (COMBI) M5X16	-	4	Enquire
11	N10595002	ROUND HD. SCREW	N10595002 ROUND HD. SCREW M5X18	-	10	Enquire
12	470880201C	AIRBAG UNIT FOR STEERING WHEEL	470880201C AIRBAG UNIT FOR STEERING WHEEL	-	1	Enquire
12	470880201E	AIRBAG UNIT FOR STEERING WHEEL	470880201E AIRBAG UNIT FOR STEERING WHEEL	-	-	Enquire
13	4E0419204B	SOCKET HEAD BOLT	4E0419204B SOCKET HEAD BOLT M6X14(T30)	-	2	Enquire
14	-	MULTIFUNCTION STEERING WHEEL	MULTIFUNCTION STEERING WHEEL SEE ILLUSTRATION :- 419-010	-	-	Enquire
15	WHT000778	WASHER	WHT000778 WASHER 30X36X1	-	4	Enquire
16	8J0947409B	LED LIGHT	8J0947409B LED LIGHT	-	1	Enquire
17	471858506	BRACKET	471858506 BRACKET	-	-	Enquire
18	-	HOLDER FOR DIAGNOSIC PLUG	HOLDER FOR DIAGNOSIC PLUG SEE ILLUSTRATION : 15- LHD 857-050	-	-	Enquire
19	471858505	CARRIER	471858505 CARRIER	-	-	Enquire
